Multiple expressions in transition

[Michael]

Hi,

Can I use multiple expressions in transition? - to change state from state ON to OFF there must be met two conditions:
var1 && var2

if var1=true and var2=true then stateON => stateOff

Best Regards
Michael

[Michael]

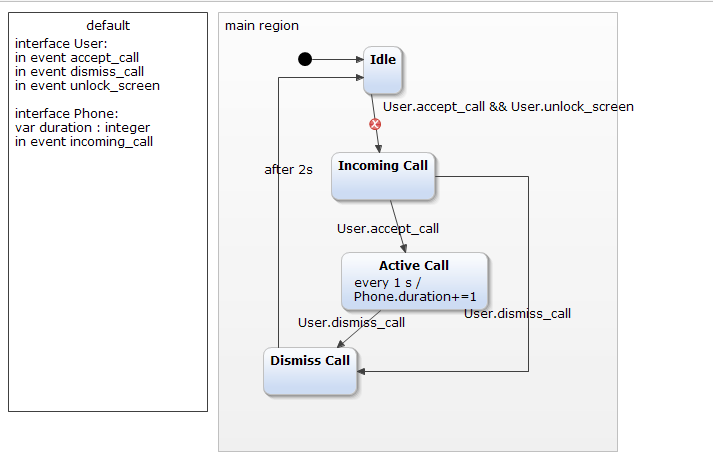

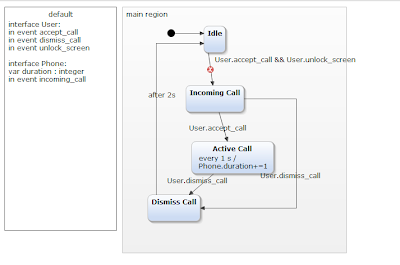

Please check this screenshot:

[Axel Terfloth]

Hi Michael,

the syntax for transitions labels is:

events [guard] / action

where events is a comma separated list of event triggers like:

User.accept_call, User.unlock_screen, after 10s

If one of these events is active then the transition may fire. But it will  only fire if the guard evaluates to true. The guard is a boolean expression that can also use events.  So for your case you should write:

[User.accept_call && User.unlock_screen]

Just to be complete:

e1, e2 [b && x == 10]

is equivalent to

[ (e1 || e2) && (b && x==10)

Hope that helps.

Best regards,

Axel

Need professional support for Yakindu Statechart Tools?
Contact us: state...@itemis.de



--
You received this message because you are subscribed to the Google Groups "YAKINDU User" group.
To unsubscribe from this group and stop receiving emails from it, send an email to yakindu-user...@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

[Michael]

Thanks for help :)

And how about transitions label with condition like : [User.accept_call && Phone.StateID=4] ?

var StateID: Integer

[Axel Terfloth]

Hi Michael,

yes - if you mean ‚Phone.StateID==4‘  instead of the assignment ‚Phone.StateID=4‘  it should work when stateID is defined in an named interface : ‚

interface Phone:

var StateID: integer

According to my explanation an equivalent expression would be:

User.accept_call [Phone.StateID==4]

Best regards,

Axel
