[BUG] The content of a wxStaticBox control is badly positioned when resizing it under macOS (Issue #22837)
Gammasoft
Description
The content of a wxStaticBox control is badly positioned when resizing it under macOS.
- Consider this example that displays two static boxes in a panel with a box sizer that maintains their size and position according to the window size.
#include <wx/wx.h> namespace Examples { class Frame : public wxFrame { public: Frame() : wxFrame(nullptr, wxID_ANY, "StaticBox and CheckBox example") { SetClientSize(300, 160); panel->SetSizerAndFit(boxSizer); boxSizer->Add(staticBox1, 1, wxGROW, 10); boxSizer->Add(staticBox2, 1, wxGROW, 10); check2->SetValue(true); check6->SetValue(true); } private: wxPanel* panel = new wxPanel(this); wxBoxSizer* boxSizer = new wxBoxSizer(wxHORIZONTAL); wxStaticBox* staticBox1 = new wxStaticBox(panel, wxID_ANY, "Group 1", {10, 10}, {135, 140}); wxStaticBox* staticBox2 = new wxStaticBox(panel, wxID_ANY, "Group 2", {155, 10}, {135, 140}); // If you replace the two lines above with the following two lines you will see the correct expected behavior. //wxPanel* staticBox1 = new wxPanel(panel, wxID_ANY, {10, 10}, {135, 140}); //wxPanel* staticBox2 = new wxPanel(panel, wxID_ANY, {155, 10}, {135, 140}); wxCheckBox* check1 = new wxCheckBox(staticBox1, wxID_ANY, "check 1", {20, 10}); wxCheckBox* check2 = new wxCheckBox(staticBox1, wxID_ANY, "check 2", {20, 40}); wxCheckBox* check3 = new wxCheckBox(staticBox1, wxID_ANY, "check 3", {20, 70}); wxCheckBox* check4 = new wxCheckBox(staticBox2, wxID_ANY, "check 4", {20, 10}); wxCheckBox* check5 = new wxCheckBox(staticBox2, wxID_ANY, "check 5", {20, 40}); wxCheckBox* check6 = new wxCheckBox(staticBox2, wxID_ANY, "check 6", {20, 70}); }; class Application : public wxApp { bool OnInit() override { (new Frame())->Show(); return true; } }; } wxIMPLEMENT_APP(Examples::Application);
- When you run this sample you obtains :

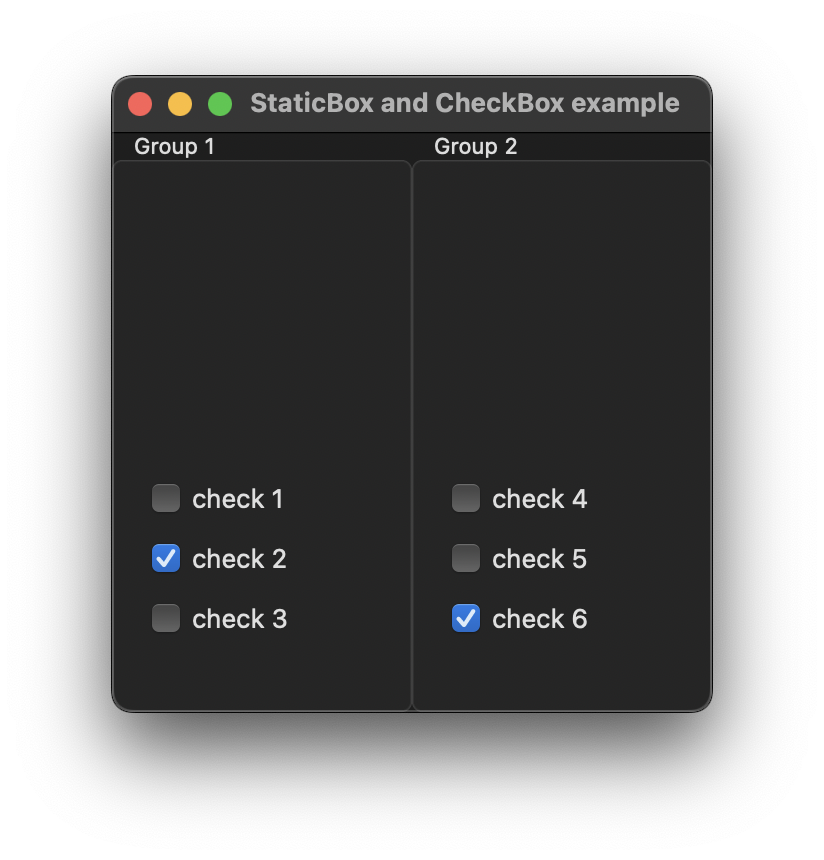

- But if you resize the window vertically by dragging the edge down, you get :
- Normally the contents of the two static boxes should not be moved.
- If we replace the two static boxes by two panels, the content stays in place.
Remarks
This is similar to the way Cocoa handles the bottom-left control potion by default. While wxWidgets uses the top-left position everywhere.
Platform and version information
- wxWidgets version you use: 3.2.0
- wxWidgets port you use: wxOSX
- OS and its version: macOS 12.6
Remarks
This issue is the same with wxWidgets 3.1.x and older macOS.
—
