[vim/vim] [virtual text] text is inserted in-between the buffer line and the virtual-text line (Issue #11131)

bfrg

unread,

Sep 14, 2022, 1:57:12 PM9/14/22

to vim/vim, Subscribed

Steps to reproduce

Run vim --clean test.vim -S test.vim, with

vim9script

colorscheme habamax

prop_type_add('test', {highlight: 'ModeMsg'})

prop_add(2, 0, {

    text:  '└─ Virtual text below the 2nd line',

    type: 'test',

    text_align: 'below',

    text_padding_left: 3

})

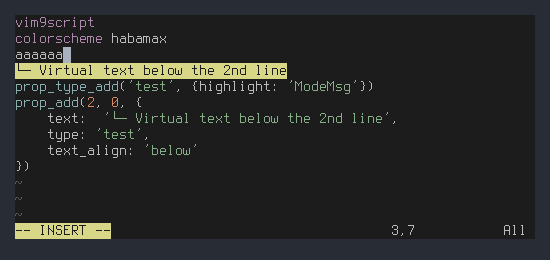

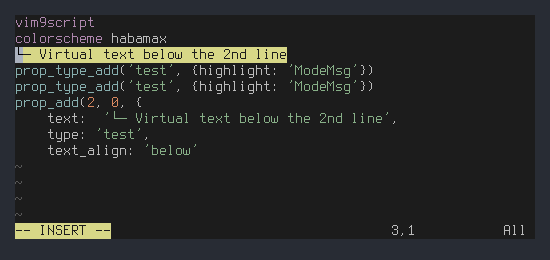

Now move the cursor to the 2nd line, press A and then <CR>. Result: The cursor jumps to the first column of the screen line containing the virtual-text. And the 3rd buffer line is drawn twice:

While in insert mode, press some keys. Result: Text is inserted above the line containing the virtual text, but should be below it.

Note: when we move the cursor to the 2nd line and press o in normal mode, the text will be correctly inserted below the virtual text.

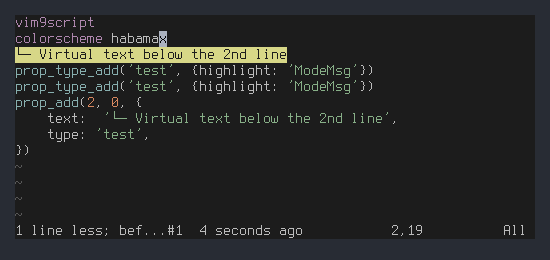

Go back to normal mode and press u. Result: The inserted text is removed but the 3rd buffer line is drawn twice again:

Expected behaviour

Text should be added below the virtual text when <CR> is pressed in insert mode, just like when o is pressed in normal-mode.

Version of Vim

9.0.465

Environment

Linux

Logs and stack traces

No response

—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.

bfrg

unread,

Sep 14, 2022, 2:00:51 PM9/14/22

to vim/vim, Subscribed

I just noticed that the virtual text isn't displayed at all when list is enabled.

—
Reply to this email directly, view it on GitHub.

You are receiving this because you are subscribed to this thread.

bfrg

unread,

Sep 14, 2022, 2:06:38 PM9/14/22

to vim/vim, Subscribed

I just noticed that the virtual text isn't displayed at all when list is enabled. If list is enabled interactively on the command-line, the virtual text disappears.

If wrap is disabled, the virtual text appears again, i.e. :set list nowrap works fine, but :set list wrap doesn't. Though, in both cases the same issue occurs when <CR> pressed at the end of a text line containing virtual text below it.

—
Reply to this email directly, view it on GitHub.

You are receiving this because you are subscribed to this thread.

Bram Moolenaar

unread,

Sep 14, 2022, 5:15:03 PM9/14/22

to vim/vim, Subscribed

Closed #11131 as completed via ebd0e8b.

—
Reply to this email directly, view it on GitHub.

You are receiving this because you are subscribed to this thread.

Bram Moolenaar

unread,

Sep 14, 2022, 5:17:26 PM9/14/22

to vim/vim, Subscribed

I fixed the obvious problem, but I haven't tried if that also fixes all the other situations. Please create a new issue if you can still reproduce something.

—
Reply to this email directly, view it on GitHub.

You are receiving this because you are subscribed to this thread.

Nick Jensen

unread,

Sep 14, 2022, 5:46:36 PM9/14/22

to vim/vim, Subscribed

:set list still hides the virtual text, and it is displayed again with :set nolist
