[vim/vim] Virtual text displays wrongly with warp & linebreak (Issue #12998)
Adam Tao
Steps to reproduce
- Save the following script as a file (e.g.,
repro.vim):
set wrap set linebreak set breakindent set breakindentopt+=shift:4 call append(0, ["a b", "c d"]) normal! 2gg call prop_type_add( 'Normal' , {'highlight': 'Normal'} ) call prop_add( 1 , 0 , {'type': 'Normal', 'text': '123', 'text_align': 'above'} )
- Run
vim --clean :source repro.vim
Expected behaviour
Vim should show the content like:
123
a b
c d
Version of Vim
9.0.1833
Environment
OS: Fedora 38
Terminal: Windows Terminal (using ssh to connect to the Fedora)
Value of $TERM: xterm-256color
Shell: zsh 5.9
Logs and stack traces
No response
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
Adam Tao

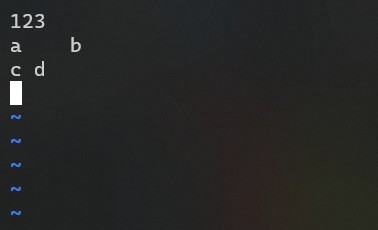

The actual content after source looks like:
123
a b
c d
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
Adam Tao
After some bisect, it looks like that b557f48 ("patch 9.0.1783: Display issues with virt text smoothscroll and showbreak") causes the issue
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
zeertzjq
It seems that the cursor position is also incorrect without 'linebreak'.
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
zeertzjq
This fixes the redrawing problem, but not cursor position:
diff --git a/src/charset.c b/src/charset.c index 3495a0ee1..f218c42b1 100644 --- a/src/charset.c +++ b/src/charset.c @@ -1126,8 +1126,11 @@ win_lbr_chartabsize( #endif #if defined(FEAT_PROP_POPUP) - cts->cts_cur_text_width = 0; - cts->cts_first_char = 0; + if (cts->cts_has_prop_with_text) + { + cts->cts_cur_text_width = 0; + cts->cts_first_char = 0; + } #endif #if defined(FEAT_LINEBREAK) || defined(FEAT_PROP_POPUP) @@ -1264,7 +1267,7 @@ win_lbr_chartabsize( int width2 = wp->w_width - col_off_prev + win_col_off2(wp); colnr_T wcol = vcol + col_off_prev; #ifdef FEAT_PROP_POPUP - wcol -= wp->w_virtcol_first_char; + wcol -= cts->cts_first_char; #endif colnr_T max_head_vcol = cts->cts_max_head_vcol; int added = 0; diff --git a/src/drawline.c b/src/drawline.c index 63bc96c4d..3bac16155 100644 --- a/src/drawline.c +++ b/src/drawline.c @@ -2879,8 +2879,14 @@ win_line( char_u *p = ptr - (mb_off + 1); chartabsize_T cts; + init_chartabsize_arg(&cts, wp, lnum, 0, line, line); + (void)win_lbr_chartabsize(&cts, NULL); + colnr_T cts_first_char = cts.cts_first_char; + clear_chartabsize_arg(&cts); + init_chartabsize_arg(&cts, wp, lnum, wlv.vcol, line, p); # ifdef FEAT_PROP_POPUP + cts.cts_first_char = cts_first_char; // do not want virtual text counted here cts.cts_has_prop_with_text = FALSE; # endif
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
zeertzjq
And this fixes the cursor position without 'linebreak':
diff --git a/src/charset.c b/src/charset.c index 3495a0ee1..27539dd27 100644 --- a/src/charset.c +++ b/src/charset.c @@ -1218,8 +1218,9 @@ win_lbr_chartabsize( cts->cts_cur_text_width += cells; if (tp->tp_flags & TP_FLAG_ALIGN_ABOVE) cts->cts_first_char += cells; + else + size += cells; cts->cts_start_incl = tp->tp_flags & TP_FLAG_START_INCL; - size += cells; if (*s == TAB) { // tab size changes because of the inserted text @@ -1385,6 +1386,9 @@ win_lbr_chartabsize( } } +# ifdef FEAT_PROP_POPUP + size += cts->cts_first_char; +# endif return size; # endif #endif
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
Adam Tao
@zeertzjq Thanks for your quick reply! I have tested in my own env and it works! And the patch fixes the issue I mentioned in #12999 too.
Is there any plan to open a PR for the fix?
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
zeertzjq
I'll create a PR soon, after writing tests.
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
Adam Tao
Emm, only the script in #12999 can't reproduce but the issue is still existing. Maybe I shall write a new script to reproduce the issue in #12999 .
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
Christian Brabandt
should be fixed by ce53e3e
—
Reply to this email directly, view it on GitHub.
You are receiving this because you are subscribed to this thread.
Christian Brabandt
Closed #12998 as completed.
—
