[vim/vim] Right scrollbar disappears after vsplit (#8324)

[Matt Wozniski]

Describe the bug
After 8.2.2709, the right side scrollbar of my GTK2 gvim disappears when the window is split vertically.

To Reproduce

1. Run gvim --clean
2. Run :vsplit

Expected behavior
There is a scrollbar on the left for the left window, and a scrollbar on the right for the right window.

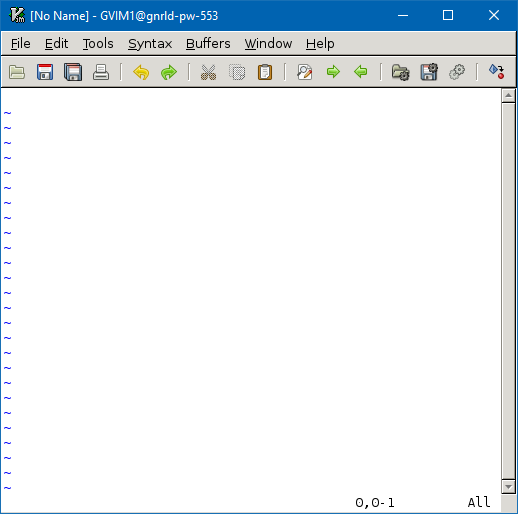

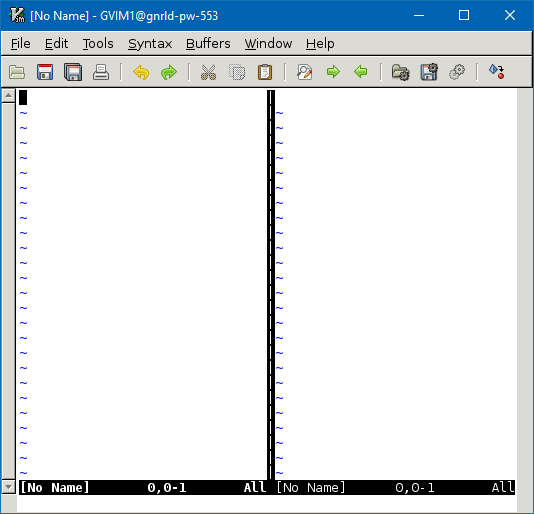

Screenshots

Environment (please complete the following information):

• Vim version: 8.2.2709 onwards
• OS: Linux (though with a Windows X server)
• Terminal: GUI

Additional context
git bisect tells me the change was introduced by 26af8e5 in #8027 when fixing #8008.

If I add some debugging prints into the gui_mch_get_scrollbar_xpadding function, I see that before splitting,

gui.formwin->allocation.width == 516
gui.drawarea->allocation.width == 500
gui.scrollbar_width == 16
xpad == 0

And after splitting

gui.formwin->allocation.width == 532
gui.drawarea->allocation.width == 500
gui.scrollbar_width == 16
xpad == 16

It seems like it's taking into account the total width of the window and the width of the scrollbar, but not accounting for the number of scrollbars. I think in the split case, it should be subtracting 2 * gui.scrollbar_width

—
You are receiving this because you are subscribed to this thread.
Reply to this email directly, view it on GitHub, or unsubscribe.

[Matt Wozniski]

I don't know if this is the best patch for the issue, but it does the trick:

diff --git a/src/gui_gtk.c b/src/gui_gtk.c
index c172fa49d..57acb5410 100644
--- a/src/gui_gtk.c
+++ b/src/gui_gtk.c
@@ -1019,6 +1019,10 @@ gui_mch_get_scrollbar_xpadding(void)
     xpad = gui.formwin->allocation.width - gui.drawarea->allocation.width
                                                         - gui.scrollbar_width;
 #endif
+    if (gui.which_scrollbars[SBAR_LEFT] && gui.which_scrollbars[SBAR_RIGHT])
+    {
+       xpad -= gui.scrollbar_width;
+    }
     return (xpad < 0) ? 0 : xpad;
 }

Seems to work properly even as I toggle the left or right scrollbar off through guioptions.

[Bram Moolenaar]

Thanks for coming up with a fix.
I also see these errors when scrolling the right hand window:
(gvim:47285): Gdk-CRITICAL **: 15:56:29.074: IA__gdk_drawable_get_size: assertion 'GDK_IS_DRAWABLE (drawable)' failed

[Bram Moolenaar]

Closed #8324 via 84e9ade.

[Mark Waggoner]

Even after this fix, I get these errors when scrolling if scrollbars are present on both sides of the window:

(gvim:31619): Gdk-CRITICAL **: IA__gdk_drawable_get_size: assertion 'GDK_IS_DRAWABLE (drawable)' failed

[Bram Moolenaar]

Mark Waggoner wrote:

> Even after this fix, I get these errors when scrolling if scrollbars
> are present on both sides of the window:
> (gvim:31619): Gdk-CRITICAL **: IA__gdk_drawable_get_size: assertion
> 'GDK_IS_DRAWABLE (drawable)' failed

I do not see these errors. Perhaps it depends on the version of the
GTK-3 library?

--
hundred-and-one symptoms of being an internet addict:
180. You maintain more than six e-mail addresses.

/// Bram Moolenaar -- Br...@Moolenaar.net -- http://www.Moolenaar.net \\\
/// \\\
\\\ sponsor Vim, vote for features -- http://www.Vim.org/sponsor/ ///
\\\ help me help AIDS victims -- http://ICCF-Holland.org ///

[Mark Waggoner]

Yes, it does depend on the version of GTK.  I get the errors if I compile with gtk+ 2 and I do not get the errors if I compile with gtk+ 3.   If I can find more information, I will.

[chenlongaa]

These errors appeared in v8.2.4586, but disappeared in v8.2.4598.
(gvim:62138): Gdk-CRITICAL **: 10:25:42.268: IA__gdk_drawable_get_size: assertion 'GDK_IS_DRAWABLE (drawable)' failed

—
