Source of small nylon gears?

[Roger Mills]

My Fellowes shredder has decided to shred one of its reduction gears
instead of the paper!

Fellowes don't carry spares for 'small' (domestic) shredders -
presumably because the labour costs to fit spare parts would exceed the
cost of a new shredder.

But those economics don't apply to DIY repairs - and I could get it
going again cheaply if I could find a suitable gear.

It's the sort which has two integral coaxial gear wheels. The big one
(about 51mm OD) has 39 smallish teeth and the small one (about 18mm OD)
has - or rather HAD - 7 largish teeth.

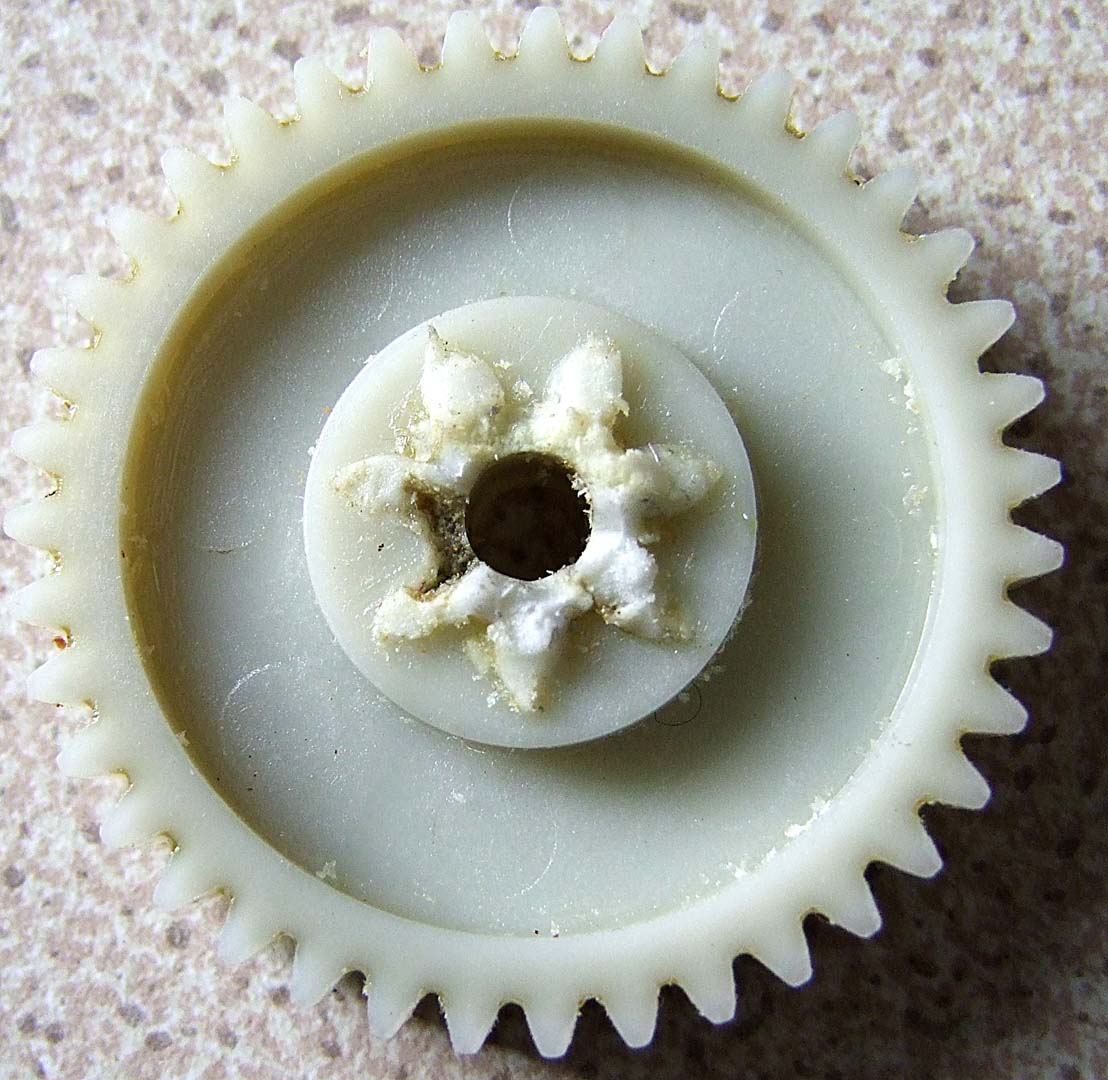

A picture of what is left of the gear can be seen at
http://www.mills37.plus.com/Shredded_gear.JPG

I don't know whether Fellowes make their own gears, or buy in standard
components. My gear carries the number 550307 - but Googling for that
didn't yield anything useful.

I would need either a replacement for the whole thing, or just the
7-tooth gear - in which case I would need to machine the residue of the
broken one from the larger gear and attach the new one to it in some way.

Anyone know of a source of this sort of thing?

TIA.
--
Cheers,
Roger
____________
Please reply to Newsgroup. Whilst email address is valid, it is seldom
checked.

[Paul - xxx]

Roger Mills wrote:

http://www.hpcgears.com/
http://www.sdp-si.com/Plastic_Gears.htm

--
Paul - xxx

[Tabby]

On May 5, 7:56 pm, Roger Mills <watt.ty...@gmail.com> wrote:
> My Fellowes shredder has decided to shred one of its reduction gears
> instead of the paper!
>
> Fellowes don't carry spares for 'small' (domestic) shredders -
> presumably because the labour costs to fit spare parts would exceed the
> cost of a new shredder.
>
> But those economics don't apply to DIY repairs - and I could get it
> going again cheaply if I could find a suitable gear.
>
> It's the sort which has two integral coaxial gear wheels. The big one
> (about 51mm OD) has 39 smallish teeth and the small one (about 18mm OD)
> has - or rather HAD - 7 largish teeth.
>

> A picture of what is left of the gear can be seen athttp://www.mills37.plus.com/Shredded_gear.JPG

>
> I don't know whether Fellowes make their own gears, or buy in standard
> components. My gear carries the number 550307 - but Googling for that
> didn't yield anything useful.
>
> I would need either a replacement for the whole thing, or just the
> 7-tooth gear - in which case I would need to machine the residue of the
> broken one from the larger gear and attach the new one to it in some way.
>
> Anyone know of a source of this sort of thing?
>
> TIA.

If you dont find what you need, epoxy is an option to recreate the 2nd
gearwheel. Not a quick fix though.

NT

[jon...@outlook.com]

Epoxy? How do you do that?

[newshound]

On 24/09/2019 15:25, jon...@outlook.com wrote:
> Epoxy? How do you do that?
>

If you have a "good" one you can try casting epoxy in a mould, e.g. RTV
silicone or paraffin wax (you may have trouble with bubbles unless you
warm the epoxy, which won't then work with wax.
