Real Time Clock using DS1394, launchpad and display driver on tm1638

160 views
Skip to first unread message

Eugene

unread,
May 5, 2013, 9:43:15 AM5/5/13
to ti-lau...@googlegroups.com

Hello!

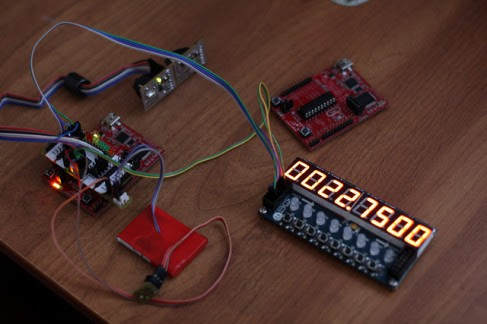

This is my project Real Time Clock. The project used RTC module ds1394, temperature sensor ds18b20 and driver 7-segment display tm1638. msp430g2553 MCU integrates devices with two hardware ports SPI (USART1, USART2).

Clock Functions:

- Showing the time, date, day of the week;
- Set the alarm;
- Shows the temperature of the sensor ds18b20;
- Control the brightness of the indicator.

Video

Russian description
Source code

Project includes:
- DS1394 msp430 launchpad interface
- ds18b20 maxim + msp430 launchpad
- Library for TM1638 to MSP430
