Unexpected zero read counts from featureCounts "-t" argument

[Chia-Yi Cheng]

Hello All,

I was using featureCounts 1.5.0-p1 to count the reads aligned to CDS. My command was

$ featureCounts -T 8 -f -t CDS -a input.gtf -o output first.BAM second.BAM

The run completed successfully. When I reviewed the output file, I noticed many columns were zeroes and I knew many of those genes were expressed (by checking the BAM in a genome browser beforehand). For example, the output for this example locus is,

Chr1	225986	226081	-	96	0	0
Chr1	226171	226311	-	141	0	0
Chr1	226396	226691	-	296	0	0
Chr1	226849	226960	-	112	0	0
Chr1	225986	226081	-	96	0	0
Chr1	226171	226311	-	141	0	0
Chr1	226396	226691	-	296	0	0
Chr1	226849	227176	-	328	12866	22187

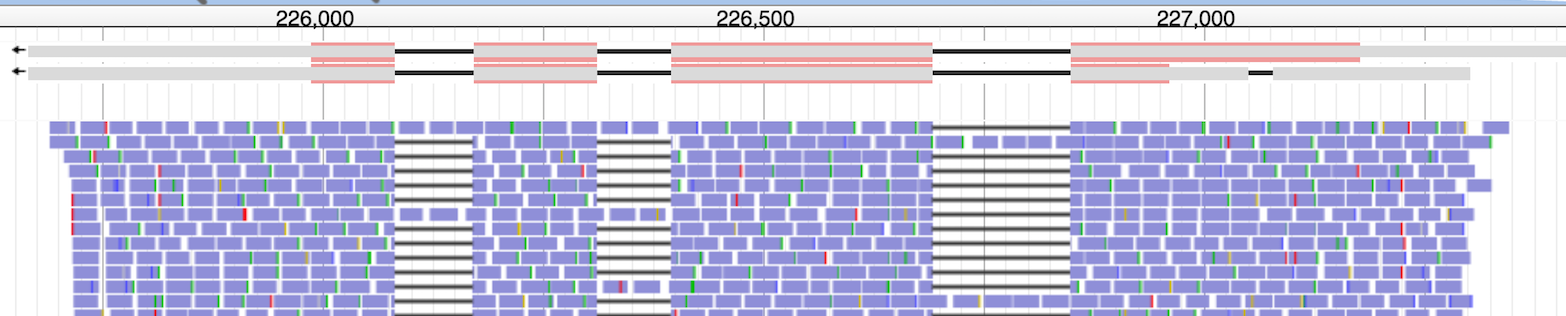

while the BAM is,

As you can see, the reads were aligned along the gene. Yet the counts were only piled in one CDS (Chr1:226849-227176).

Any comment and help is appreciated. Thank you.

Best,

Chia-Yi

ps. Here's the input GTF in this locus,

Chr1  GTF CDS 225986  226081  . - 0 transcript_id "example.2"; gene_id "example";

Chr1  GTF CDS 226171  226311  . - 0 transcript_id "example.2"; gene_id "example";

Chr1  GTF CDS 226396  226691  . - 2 transcript_id "example.2"; gene_id "example";

Chr1  GTF CDS 226849  226960  . - 0 transcript_id "example.2"; gene_id "example";

Chr1  GTF exon  226849  227049  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF 5UTR  226961  227049  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF exon  227079  227302  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF 5UTR  227079  227302  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF 3UTR  225665  225985  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF 3UTR  225665  225985  . - . transcript_id "example.1"; gene_id "example";

Chr1  GTF exon  225665  226081  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF exon  225665  226081  . - . transcript_id "example.1"; gene_id "example";

Chr1  GTF CDS 225986  226081  . - 0 transcript_id "example.1"; gene_id "example";

Chr1  GTF CDS 226171  226311  . - 0 transcript_id "example.1"; gene_id "example";

Chr1  GTF exon  226171  226311  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF exon  226171  226311  . - . transcript_id "example.1"; gene_id "example";

Chr1  GTF CDS 226396  226691  . - 2 transcript_id "example.1"; gene_id "example";

Chr1  GTF exon  226396  226691  . - . transcript_id "example.2"; gene_id "example";

Chr1  GTF exon  226396  226691  . - . transcript_id "example.1"; gene_id "example";

Chr1  GTF CDS 226849  227176  . - 0 transcript_id "example.1"; gene_id "example";

Chr1  GTF exon  226849  227543  . - . transcript_id "example.1"; gene_id "example";

Chr1  GTF 5UTR  227177  227543  . - . transcript_id "example.1"; gene_id "example";

[Wei Shi]

Hi Chia-Yi,

The reason is that your annotation includes duplicated exons (or exons overlapping with each other). FeatureCounts does not count any read that overlaps with more than one feature by default.

If you add '-O' option to your command, you will then find all your exons have counts. The '-O' option instructs featureCounts to assign a read to all its overlapping features.

Best,

Wei

[Chia-Yi Cheng]

Hi Wei,

Thank you for the suggestion. I added '-O' and it worked as you said.

I have one follow-up question. I can see why featureCounts by default doesn't count reads for 1b as it overlaps with 1a (annotations depicted in the figure below). But I don't understand why

featureCounts did not counts reads aligned to exons 2, 3, and 4 as these exons do not overlap with 1a. Could you explain a little bit more about this?

Thank you very much!

Chia-Yi

[Wei Shi]

Hi Chia-Yi,

Take exon 2 for example, you have two copies of this exon in your annotation: 2a and 2b. For the reads mapping to exon 2, featureCounts found that they overlap with two exons and therefore it does not count them at all.

If you want to get counts for exons 2, 3 and 4, you will need to keep only one copy for each of them in your annotation.

Cheers,
Wei

[Chia-Yi Cheng]

Hi Wei,

I understand why no reads were not counted for exon 2, 3,an 4. I am now confused by the fact that featureCounts assigned reads to exon 1a (Chr1:226849-227176 in the original post) even though exon 1a overlaps with 1b. If I understand correctly, shouldn't exon 1a get zero read counts as well?

Thank you for your time. I just wanted to make sure I completely understand '-O'.

Cheers,

Chia-Yi

[Wei Shi]

Your exon 1a overlaps with 1b, but it is not identical with 1b. The part of your exon 1a that does not overlap with 1b received counts.

[Chia-Yi Cheng]

Got it now. Thank you again for your time and answers!!
