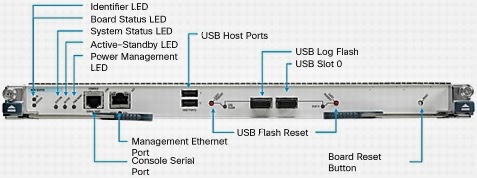

No more CMP on Nexus 7000 next-generation supervisor modules Sup2 and Sup2E Posted: 21 Sep 2013 07:24 AM PDT Connectivity Management Processor (CMP) is like an embedded terminal server dedicated for a single Nexus 7000 data center switch. I personally like this feature because we do not have to prepare another set of terminal server just to monitor the console output while we reboot the switch. However, starting from Supervisor 2 (Sup2) and Supervisor 2 Enhanced Module (Sup2E), CMP hardware is removed from supervisor module itself. I am not sure whether this feature will come back in the future or not. For the time being, we will have to prepare terminal servers or reserve asynchronous serial ports for Nexus 7000 switches administration. [Supervisor 1] Captured on Cisco.com. 1 CMP Status LED 4 ACT LED 2 Link LED 5 CMP MGMT Ethernet LED 3 CMP MGMT Ethernet port [Supervisor 2 and 2E] Captured on Cisco.com. [References] Overview of the Connectivity Management Processor Cisco Nexus 7000 Switches Second-Generation Supervisor Modules Datasheet Cisco Nexus 7000 Sup-2 and 2E, why no CMP?
