1967 Shelby G.T.350 / G.T.500 Specification Sheet


Did you know that there were two different versions of the 1967 Shelby G.T.350 / G.T.500 Specification Sheet? An initial release and later a revised version.

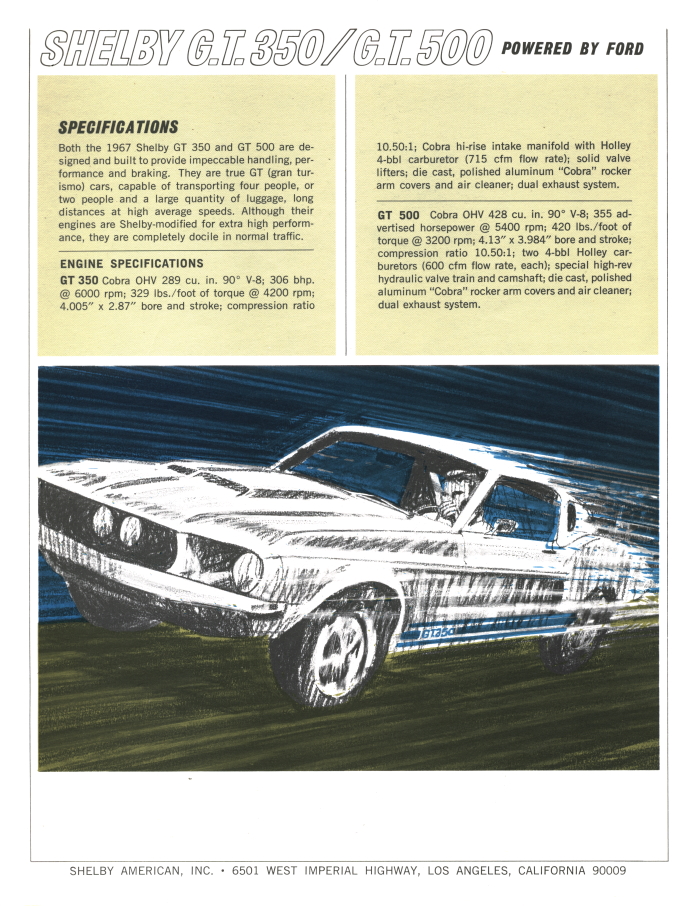

The front of the two-sided ‘spec sheet’ included a G.T. 350 pencil sketch. This same illustration was also on the cover of the “1967 Shelby G.T.350 / G.T.500 Color Guide and Accessories” pre-production sales brochure and the “10 Steps to a Successful Shelby G.T.350 / G.T.500 Public Announcement November 10” brochure. The back of the document lists several specifications and included a G.T. 500 cut-away illustration.


Note: There is a separate topic on the different versions of the cut-away illustration we’ve identified.



It’s likely that the original spec sheet would have been sent-out to dealers in preparation for the official product launch date of November 10, 1966.



The revised version of the spec sheet bears a Revised date of February 5, 1967

(‘Rev 2/5/67’ below the cut-away illustration on the back).



While the copy on the front page of the two versions of the spec sheet is identical, the back page has a few differences:


Section

Heading

Original Version

circa November 1966

Revised Version

Dated February 5, 1967

Construction

The Monte Carlo bar is NOT mentioned.

The “Monte Carlo reinforcement bar” is mentioned as an “optional, dealer- installed item.”

Styling

“full width taillights”

“exclusive safety taillights”

Wheels, Tires

“6.5-inch rim width”

“7.0-inch rim width”

Interior Appointments

In both versions, the ‘Integral roll bar’ and the ‘Inertia reel front shoulder harnesses’ are listed as “Optional, at extra cost.”

Cut-Away Illustration

Eye-level brake and turn signal lights are present.

Eye-level brake and turn signal lights are no longer present in the air extractors.
