Prometheus not working after configuring docker named volume

[Rajesh Singh]

I have following docker-compose file for deploying my monitoring stack:

      version: '3'

      services:

        prometheus:
          image: prom/prometheus:latest
          volumes:
            - ./prometheus/prometheus.yaml:/etc/prometheus/prometheus.yaml
            # - prometheus_data:/prometheus
          command:
            - '--config.file=/etc/prometheus/prometheus.yaml'
            # - '--storage.tsdb.path=/prometheus'
            - '--storage.tsdb.retention.time=24w'
          ports:
            - 9090:9090

        node-exporter:
          image: prom/node-exporter
          ports:
            - 9100:9100

        cadvisor:
          image: google/cadvisor:latest
          ports:
            - 8081:8080
          volumes:
            - /:/rootfs:ro
            - /var/run:/var/run:rw
            - /sys:/sys:ro
            - /var/lib/docker/:/var/lib/docker:ro

        grafana:
          image: grafana/grafana
          user: "1000"
          volumes:
            - ./grafana/provisioning/datasources:/etc/grafana/provisioning/datasources
            - ./grafana/provisioning/dashboards:/etc/grafana/provisioning/dashboards
            - ./grafana/grafana.ini:/etc/grafana/grafana.ini
          depends_on:
            - prometheus
          ports:
            - 3032:3000

      # volumes:
      #   prometheus_data:

It works perfectly fine:



I also have some grafana panels embedded in my web app, which also get rendered.

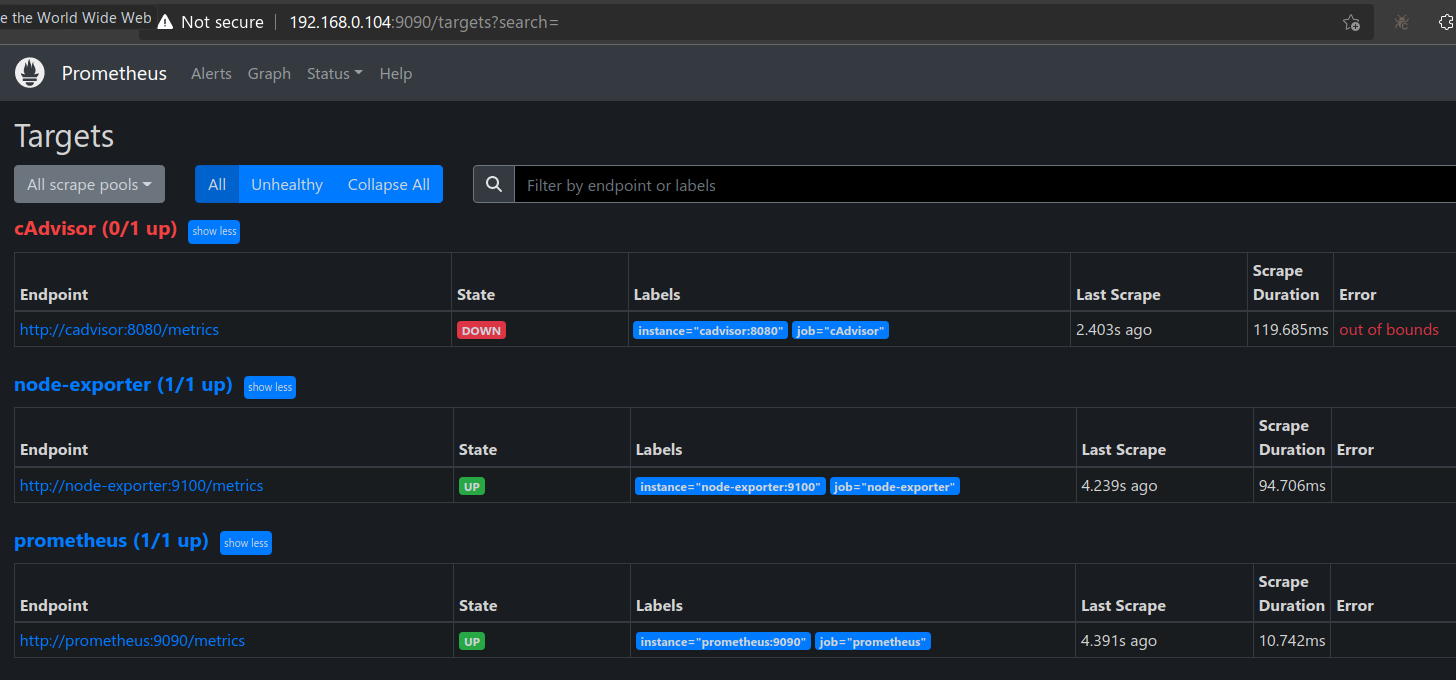

I wanted to persist the monitoring data. So I need to add named docker volume. To this, I un-commented the commented lines in above docker compose file. This made cadvisor unavailable to prometheus:



The embedded panels contained information from both node-exporter (CPU, RAM etc information for host machine) and cadvisor (CPU, RAM etc information for each docker container). All these panels started showing no data after un-commenting those lines! I felt only docker container related metrics should become unavailable given that only cadvisor is unavailable. But I was wrong, even host machine related panels too were down! However, I am still able to access all metrics end points from browser and they were returning huge list of metrics:

1. Prometheus endpoint: http://192.168.0.104:9090/metrics
2. cAdvisor endpoint: http://192.168.0.104:8081/metrics
3. node-exporter endpoint: http://192.168.0.104:9100/metrics

What mistake I am making here?

I also tried to check permissions of the volume directory in my laptop. It is created in my laptop at /var/lib/docker/volumes:

       /var/lib/docker/volumes# ls -l
       total 904
       brw------- 1 root root 259, 4 May 28 17:59 backingFsBlockDev
       drwx-----x 3 root root   4096 Jan 14  2022 myapp_demo_myapp_nginx_volume
       drwx-----x 3 root root   4096 Feb  5  2022 myapp_demo_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Jan 14  2022 myapp_demo_myapp_postgres_volume
       drwx-----x 3 root root   4096 Jan 14  2022 myapp_demo_myapp_redis_volume
       drwx-----x 3 root root   4096 Feb 14  2022 myapp_demo_fm_v2_myapp_nginx_volume
       drwx-----x 3 root root   4096 Feb 14  2022 myapp_demo_fm_v2_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Feb 14  2022 myapp_demo_fm_v2_myapp_postgres_volume
       drwx-----x 3 root root   4096 Feb 14  2022 myapp_demo_fm_v2_myapp_redis_volume
       drwx-----x 3 root root   4096 May 25 20:10 myapp_ip_logging_myapp_nginx_volume
       drwx-----x 3 root root   4096 May 25 20:11 myapp_ip_logging_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 May 25 20:10 myapp_ip_logging_myapp_postgres_volume
       drwx-----x 3 root root   4096 May 25 20:11 myapp_ip_logging_myapp_redis_volume
       drwx-----x 3 root root   4096 Jun  4  2022 myapp_stack_1_myapp_nginx_volume
       drwx-----x 3 root root   4096 Jun  4  2022 myapp_stack_1_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Jun  4  2022 myapp_stack_1_myapp_postgres_volume
       drwx-----x 3 root root   4096 Jun  4  2022 myapp_stack_1_myapp_redis_volume
       drwx-----x 3 root root   4096 May 31 06:28 myapp_stack_1_monitoring_prometheus_data  <---------
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_2_myapp_nginx_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_2_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_2_myapp_postgres_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_2_myapp_redis_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_3_myapp_nginx_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_3_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_3_myapp_postgres_volume
       drwx-----x 3 root root   4096 Jul  1  2022 myapp_stack_3_myapp_redis_volume
       drwx-----x 3 root root   4096 Aug 18  2022 myapp_stack_py3_1_myapp_nginx_volume
       drwx-----x 3 root root   4096 Aug 18  2022 myapp_stack_py3_1_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Aug 18  2022 myapp_stack_py3_1_myapp_postgres_volume
       drwx-----x 3 root root   4096 Aug 18  2022 myapp_stack_py3_1_myapp_redis_volume
       drwx-----x 3 root root   4096 Sep 23  2022 myapp_stats_myapp_nginx_volume
       drwx-----x 3 root root   4096 Sep 23  2022 myapp_stats_myapp_postgres_volume
       drwx-----x 3 root root   4096 Sep 23  2022 myapp_stats_myapp_redis_volume
       drwx-----x 3 root root   4096 Apr 11  2022 myapp_myapp_nginx_volume
       drwx-----x 3 root root   4096 Apr 11  2022 myapp_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 Apr 11  2022 myapp_myapp_postgres_volume
       drwx-----x 3 root root   4096 Apr 11  2022 myapp_myapp_redis_volume
       drwx-----x 3 root root   4096 May 30  2022 myapp_master_myapp_nginx_volume
       drwx-----x 3 root root   4096 May 30  2022 myapp_master_myapp_pgadmin_volume
       drwx-----x 3 root root   4096 May 30  2022 myapp_master_myapp_postgres_volume
       drwx-----x 3 root root   4096 May 30  2022 myapp_master_myapp_redis_volume
       drwx-----x 3 root root   4096 Feb 24  2022 elk_certs
       drwx-----x 3 root root   4096 Feb 24  2022 elk_esdata01
       drwx-----x 3 root root   4096 Feb 24  2022 elk_esdata02
       drwx-----x 3 root root   4096 Feb 24  2022 elk_esdata03
       drwx-----x 3 root root   4096 Feb 24  2022 elk_kibanadata
       drwx-----x 3 root root   4096 Mar 31  2022 jenkins_home
       -rw------- 1 root root 131072 May 31 04:08 metadata.db
       drwx-----x 3 root root   4096 Apr  5  2022 minikube
       drwx-----x 3 root root   4096 Feb 16  2022 vscode

Notice below line:

       drwx-----x 3 root root   4096 May 31 06:28 myapp_stack_1_monitoring_prometheus_data  <---------

It shows prometheus_data volumne too have same permissions as others i.e. drwx-----x. But when I check permissions on directory individually, it gives different permissions:

       # ls -l myapp_stack_1_monitoring_prometheus_data
       total 4
       drwxr-xr-x 5 nobody nogroup 4096 May 31 13:16 _ data

       Notice nobody nogroup in above output. Q. Could this be a problem?

This differs from whats shown for other volumes:

       # ls -l myapp_stack_1_myapp_postgres_volume
       total 4
       drwx------ 19 systemd-coredump systemd-coredump 4096 May 29 19:05 _data

       # ls -l myapp_stack_1_myapp_nginx_volume
       total 4
       drwxr-xr-x 2 root root 4096 Jun  4  2022 _data

       # ls -l myapp_stack_1_myapp_redis_volume
       total 4
       drwxr-xr-x 2 systemd-coredump systemd-coredump 4096 May 31 13:16 _data

Another difference I noticed is the suffix _data in myapp_stack_1_monitoring_prometheus_data, while others have suffix _volume. Q. Could that be a problem?

PS: My prometheus.yaml looks like this:

       global:
         scrape_interval: 5s
         external_labels:
           monitor: 'Monitoring'
       scrape_configs:
         - job_name: 'prometheus'
           static_configs:
             - targets: ['prometheus:9090']
         - job_name: 'node-exporter'
           static_configs:
             - targets: ['node-exporter:9100']
         - job_name: 'cAdvisor'
           static_configs:
             - targets: ['cadvisor:8080']
