Understanding Pinax

[ptone]

I'm taking some time to understand how Pinax is put together before I
commit to it for a project. I wanted to know how the pinax apps
depended on each other, so I wrote a script that uses the modulefinder
module to graph out where the the apps use each other in a stock
social project:

http://ptone.com/temp/pinax_graph.json (best viewed in firefox's
native json viewer)

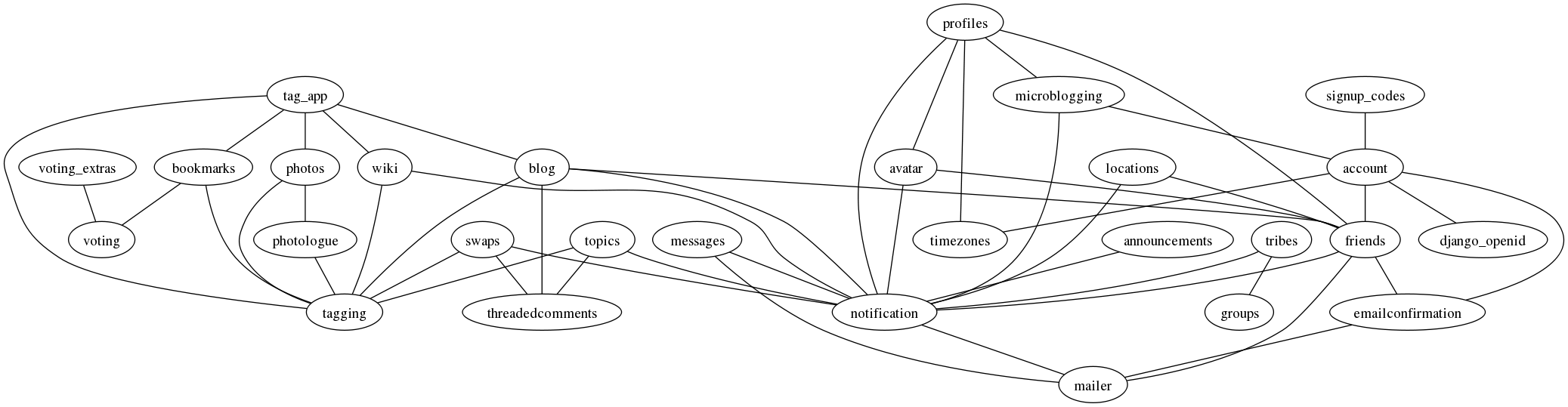

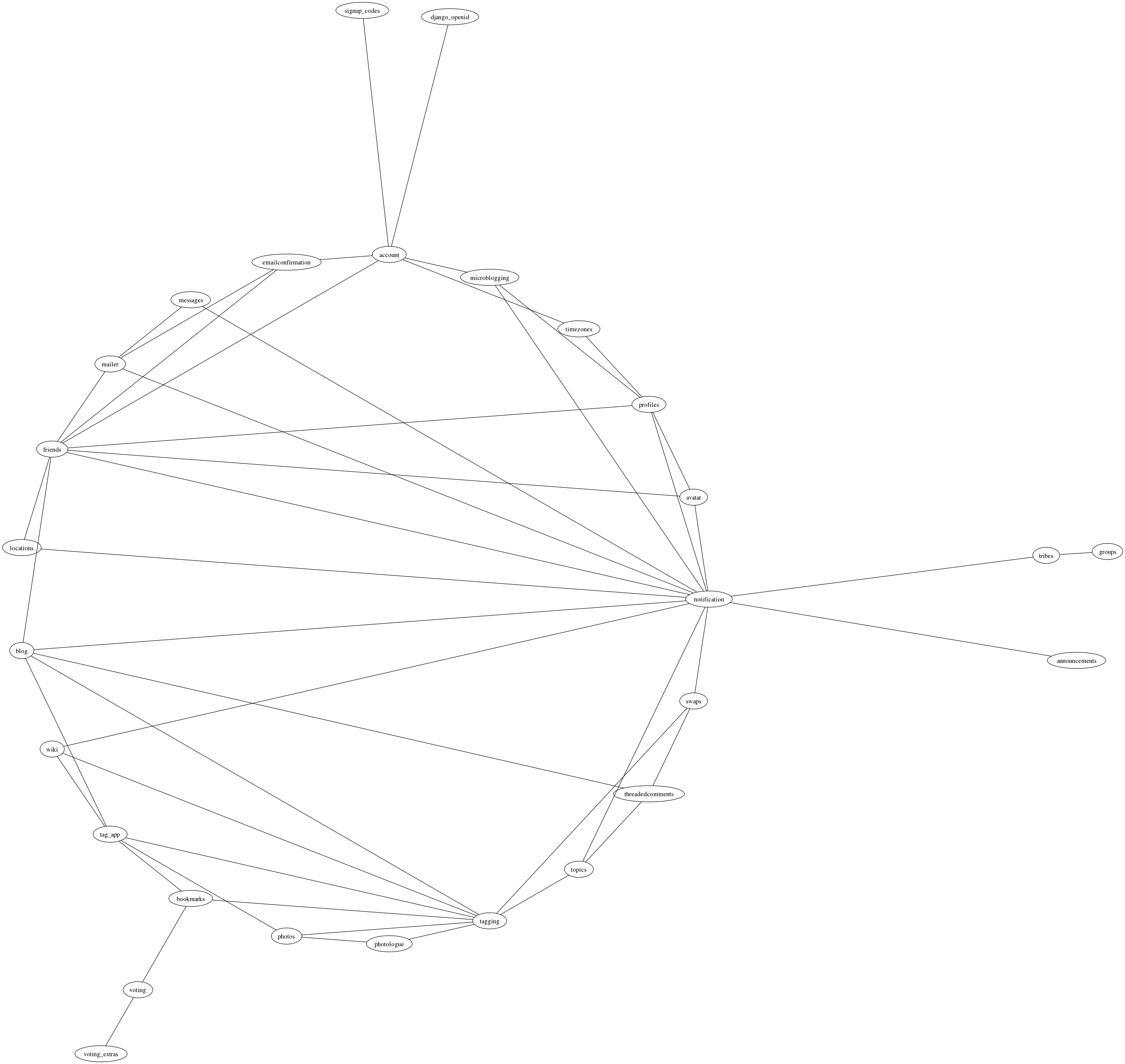

I then used pygraphviz to graph this visually:

http://www.ptone.com/temp/pinax-dot.png

http://www.ptone.com/temp/pinax-circo.png

The ultimate goal is to help come up with some docs that help answer
the perennial question "if I start with basic project, how can I add
certain apps from social project in". So eventually I want to look
into how to introspect urls.py files and template tag usage.

-Preston

[James Tauber]

First of all, thanks for doing this.

Couple of comments:

1. need to distinguish *requirements* from *optionally supported* —
lots of apps CAN use mailer or notification but don't require them
2. some of these dependencies are really bugs in our apps that we
should fix for 0.9

James

[sste...@gmail.com]

On Nov 3, 2009, at 9:49 AM, ptone wrote:

Wow...that's flippin' awesome.

I would love to use that tool to analyze some of my projects that
incorporate some libraries with dependencies I don't really have a
good grasp of.

Would you consider making a github or bitbucket project of it?

Thanks,

S

[ptone]

On Nov 3, 6:53 am, James Tauber <jtau...@jtauber.com> wrote:
> First of all, thanks for doing this.
>
> Couple of comments:
>
> 1. need to distinguish *requirements* from *optionally supported* —
> lots of apps CAN use mailer or notification but don't require them

What sorts of approaches do you suggest for distinguishing between
these? - is it just a matter of looking at the code?

Also a flaw as I see it for my purposes, is that modulefinder will
list implicit exports - that is, if x imports notifications.models,
then it's graphed adjacent to mailer, but its really that mailer is
adjacent to notifications.

> 2. some of these dependencies are really bugs in our apps that we
> should fix for 0.9

Well, hopefully some refinement of this little tool can eventually
help you guys out ;-)

>
> James
>
> On Nov 3, 2009, at 9:49 AM, ptone wrote:
>
>
>
>
>
> > I'm taking some time to understand how Pinax is put together before I
> > commit to it for a project.  I wanted to know how the pinax apps
> > depended on each other, so I wrote a script that uses the modulefinder
> > module to graph out where the the apps use each other in a stock
> > social project:
>

> >http://ptone.com/temp/pinax_graph.json(best viewed in firefox's

[ptone]

On Nov 3, 7:08 am, "sstein...@gmail.com" <sstein...@gmail.com> wrote:
> On Nov 3, 2009, at 9:49 AM, ptone wrote:
>
>
>
>
>
>
>
> > I'm taking some time to understand how Pinax is put together before I
> > commit to it for a project.  I wanted to know how the pinax apps
> > depended on each other, so I wrote a script that uses the modulefinder
> > module to graph out where the the apps use each other in a stock
> > social project:
>

> >http://ptone.com/temp/pinax_graph.json(best viewed in firefox's

> > native json viewer)
>
> > I then used pygraphviz to graph this visually:
>
> >http://www.ptone.com/temp/pinax-dot.png
>
> >http://www.ptone.com/temp/pinax-circo.png
>
> > The ultimate goal is to help come up with some docs that help answer
> > the perennial question "if I start with basic project, how can I add
> > certain apps from social project in".  So eventually I want to look
> > into how to introspect urls.py files and template tag usage.
>
> Wow...that's flippin' awesome.
>
> I would love to use that tool to analyze some of my projects that
> incorporate some libraries with dependencies I don't really have a
> good grasp of.
>
> Would you consider making a github or bitbucket project of it?

Sure - its a bit hackish and not very optimized right now - but I'll
see if I can get it cleaned up a bit more.

-Preston

>
> Thanks,
>
> S

[ptone]

OK - I've updated the graphs and data to only include explicitly
imported apps - but it still doesn't check if something is required -
that's OK for me as I'm interested in how apps might be using other
apps. The dot format graph is now much cleaner - I simply updated the
existing links.

http://ptone.com/temp/pinax_graph.json
http://www.ptone.com/temp/pinax-dot.png
http://www.ptone.com/temp/pinax-circo.png

Also I put the two files up on github - the use of modulefinder makes
the first step run pretty slow, but I think in the end is easier the
writing a custom parser or regex tool

http://gist.github.com/225231

On Nov 3, 8:19 am, ptone <pres...@ptone.com> wrote:
> On Nov 3, 7:08 am, "sstein...@gmail.com" <sstein...@gmail.com> wrote:
>
>
>
>
>
> > On Nov 3, 2009, at 9:49 AM, ptone wrote:
>
> > > I'm taking some time to understand how Pinax is put together before I
> > > commit to it for a project.  I wanted to know how the pinax apps
> > > depended on each other, so I wrote a script that uses the modulefinder
> > > module to graph out where the the apps use each other in a stock
> > > social project:
>

> > >http://ptone.com/temp/pinax_graph.json(bestviewed in firefox's

[sste...@gmail.com]

On Nov 3, 2009, at 12:18 PM, ptone wrote:

>
> OK - I've updated the graphs and data to only include explicitly
> imported apps - but it still doesn't check if something is required -
> that's OK for me as I'm interested in how apps might be using other
> apps. The dot format graph is now much cleaner - I simply updated the
> existing links.
>
> http://ptone.com/temp/pinax_graph.json
> http://www.ptone.com/temp/pinax-dot.png
> http://www.ptone.com/temp/pinax-circo.png
>
> Also I put the two files up on github - the use of modulefinder makes
> the first step run pretty slow, but I think in the end is easier the
> writing a custom parser or regex tool
>
> http://gist.github.com/225231

Awesome! I'm applying it to a graph of a web site map -- I'll send
over any improvements/changes when I get it working.

Pretty cool stuff...

S

[ptone]

Sorry to keep piling on this thread - but for anyone else working to
learn pinax - I'll share the output of the django-extensions
graph_models output in case you don't have the required bits
installed:

http://www.ptone.com/temp/pinax-social-models.png

-Preston

[sste...@gmail.com]

On Nov 3, 2009, at 12:42 PM, ptone wrote:

>
> Sorry to keep piling on this thread - but for anyone else working to
> learn pinax - I'll share the output of the django-extensions
> graph_models output in case you don't have the required bits
> installed:
>
> http://www.ptone.com/temp/pinax-social-models.png

Was this generated with the same code up on github?

S

[ptone]

No this is stock in pinax - its part of django-extensions which is
part of the standard pinax requirements - from your pinax project:

./manage.py graph_models -a -g -o my_project_visualized.png

However you need a working graphviz/pygraphviz install - and I figured
some people didn't, so I figured I'd post.

At some point one of these for each project type could/should be
posted in the docs (could all be automated of course - when everyone
gets extra days in the week ;-)

-Preston

>
> S

[sste...@gmail.com]

On Nov 3, 2009, at 2:37 PM, ptone wrote:
>>
>>> http://www.ptone.com/temp/pinax-social-models.png
>>
>> Was this generated with the same code up on github?
>
> No this is stock in pinax - its part of django-extensions which is
> part of the standard pinax requirements - from your pinax project:
>
> ./manage.py graph_models -a -g -o my_project_visualized.png
>
> However you need a working graphviz/pygraphviz install - and I figured
> some people didn't, so I figured I'd post.
>
> At some point one of these for each project type could/should be
> posted in the docs (could all be automated of course - when everyone
> gets extra days in the week ;-)

The things ya' learn just hangin' out on mailing lists...

Thanks!

S

[ptone]

Another quick little tool to scan and look for use of "settings.*" in
apps to determine what settings could be used:

http://www.ptone.com/misc/pinax_settings

-Preston

On Nov 3, 6:49 am, ptone <pres...@ptone.com> wrote:
> I'm taking some time to understand how Pinax is put together before I
> commit to it for a project.  I wanted to know how the pinax apps
> depended on each other, so I wrote a script that uses the modulefinder
> module to graph out where the the apps use each other in a stock
> social project:
>

> http://ptone.com/temp/pinax_graph.json(best viewed in firefox's

[James Tauber]

This is great and will help with http://code.pinaxproject.com/tasks/task/176/
