VNC Console
noe_norma
error nya seperti ini gambar nya.
ni file nova.conf nya :
## Opsi networking
dhcpbridge_flagfile=/etc/nova/nova.conf
dhcpbridge=/usr/bin/nova-dhcpbridge
firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
#Public IP of network host
routing_source_ip=10.42.14.102
# Opsi valid: FlatManager, FlatDHCPManager dan VlanManager
network_manager=nova.network.manager.FlatDHCPManager
public_interface=eth0
#FlatDhcp akan bridging ke eth1
flat_interface=eth0
flat_network_bridge=br100
#Fixed IP address block for communication among instances
fixed_range=192.168.79.0/27
# Floating IP address block / public IP for instance
floating_range=10.42.14.192/27
vlan_interface=eth0
#Jumlah alamat di tiap subnet privat
network_size=32
num_networks=1
#it's default
flat_network_dhcp_start=192.168.79.2
#Apakah berusaha menginject setup jaringan ke guest
flat_injected=false
#Kirim dhcp release saat terminasi instance
force_dhcp_release=true
#multi_host in networks
multi_host=True
## Opsi untuk volume yang ditempelkan ke VM
#volume_group=nova-volumes #default
iscsi_helper=tgtadm
volume_force_update_capabilities=true
volume_group=nova-volumes
volume_name_template=volume-%08x
## Opsi untuk Compute API, RabbitMQ, EC2 API, S3 API, tipe instance
# LOGS/STATE
verbose=True
logdir=/var/log/nova
state_path=/var/lib/nova
lock_path=/run/lock/nova
#Hostname atau IP yang digunakan Openstack saat mengakses API S3. Using default port 3333
s3_host=10.42.14.102
#Alamat IP untuk server API EC2
ec2_host=10.42.14.102
#RabbitMQ scheduller host
rabbit_host=10.42.14.102
#Daftar server-server API Glance yang tersedia ke nova
glance_api_servers=10.42.14.102:9292
#glance_host=10.42.12.100
# APIS
osapi_compute_extension=nova.api.openstack.compute.contrib.standard_extensions
ec2_dmz_host=10.42.14.102
#Layanan yang digunakan untuk mengambil dan mencari image
# GLANCE
image_service=nova.image.glance.GlanceImageService
glance_api_servers=10.42.14.102:9292
cc_host=10.42.14.102
#Nama file untuk paste.deploy configu untuk nova-api
api_paste_config=/etc/nova/api-paste.ini
#Menyebabkan guest yang diberikan ke suatu host akan restart saat nova-compute start
start_guests_on_host_boot=true
resume_guests_state_on_host_boot=true
#Opsi valid untuk tipe koneksi: libvirt, xenapi, atau fake
connection_type=libvirt
root_helper=sudo nova-rootwrap
verbose=true
# Allow destination machine to match source for resize. Useful when testing in single-host environments.
#allow_resize_to_same_host=true
## Others
allow_admin_api=true
use_deprecated_auth=false
nova_url=http://10.42.14.102:8774/v2/
my_ip=10.42.14.102
#iSCSI discovery
iscsi_ip_prefix=192.168.77
## Opsi untuk otentikasi
#Opsi valid: noauth, keystone, dan deprecated
# AUTHENTICATION
auth_strategy=keystone
# SCHEDULER
compute_scheduler_driver=nova.scheduler.filter_scheduler.FilterScheduler
#Opsi untuk scheduler yang menggunakan algoritma untuk menugaskan VM berjalan di host komputing tertentu
scheduler_driver=nova.scheduler.simple.SimpleScheduler
#using default nova.scheduler.multi.MultiScheduler
#compute_scheduler_driver=nova.scheduler.filter_scheduler.FilterScheduler
#volume_scheduler_driver=nova.scheduler.chance.ChanceScheduler
# Opsi untuk database
sql_connection=mysql://novadbadmin:nova-...@10.42.14.102/nova
# Opsi untuk API EC2
ec2_url=http://10.42.14.102:8773/services/Cloud
keystone_ec2_url=http://10.42.14.102:5000/v2.0/ec2tokens
osapi_compute_extension=nova.api.openstack.compute.contrib.standard_extensions
#Public IP of network host
routing_source_ip=10.42.14.102
# Opsi valid: FlatManager, FlatDHCPManager dan VlanManager
network_manager=nova.network.manager.FlatDHCPManager
public_interface=eth0
#FlatDhcp akan bridging ke eth1
flat_interface=eth0
flat_network_bridge=br100
#Fixed IP address block for communication among instances
fixed_range=192.168.79.0/27
# Floating IP address block / public IP for instance
floating_range=10.42.14.192/27
vlan_interface=eth0
#Jumlah alamat di tiap subnet privat
network_size=32
num_networks=1
#it's default
flat_network_dhcp_start=192.168.79.2
#Apakah berusaha menginject setup jaringan ke guest
flat_injected=false
#Kirim dhcp release saat terminasi instance
force_dhcp_release=true
#multi_host in networks
multi_host=True
## Opsi untuk volume yang ditempelkan ke VM
# VOLUMES
volume_group=nova-volumes
iscsi_helper=tgtadm
volume_force_update_capabilities=true
volume_name_template=volume-%08x
## Opsi untuk Compute API, RabbitMQ, EC2 API, S3 API, tipe instance
# LOGS/STATE
logdir=/var/log/nova
state_path=/var/lib/nova
lock_path=/run/lock/nova
# Opsi untuk hypervisor
# Opsi valid: kvm, lxc, qemu, uml, xen
libvirt_type=kvm
#Menggunakan virtio sebagai interface bridge
libvirt_use_virtio_for_bridges=true
# COMPUTE
instance_name_template=instance-%08x
api_paste_config=/etc/nova/api-paste.ini
allow_resize_to_same_host=True
# VNC access to guest instances
novnc_enabled=true
novncproxy_base_url=http://10.42.14.102:6080/vnc_auto.html
vncserver_proxyclient_address=10.42.14.102
vncserver_listen=10.42.14.102
xvpvncproxy_base_url=http://10.42.14.102:6081/console
start_guests_on_host_boot=true
resume_guests_state_on_host_boot=true
root_helper=sudo nova-rootwrap
Ria Komputer
noe_norma
iya mas,,, gmn? ada solusi kah? mohon bantuannya ya mas fandi..
Ria Komputer
iya mas,,, gmn? ada solusi kah? mohon bantuannya ya mas fandi..
--
You received this message because you are subscribed to the Google Groups "OpenStack Indonesian Chapter" group.
To unsubscribe from this group and stop receiving emails from it, send an email to openstack-id...@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.
Best Regards
Fandi Kurnia
Ria Komputer
Jl. KS TUBUN RAYA NO. 93
Petamburan Jakarta Pusat
02153650188
noe_norma

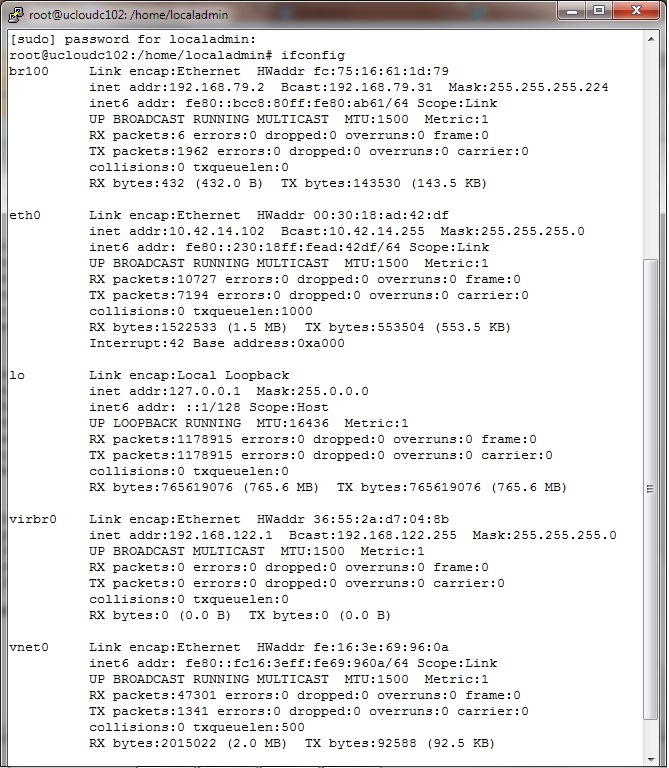

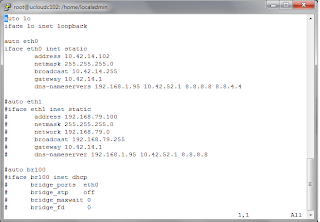

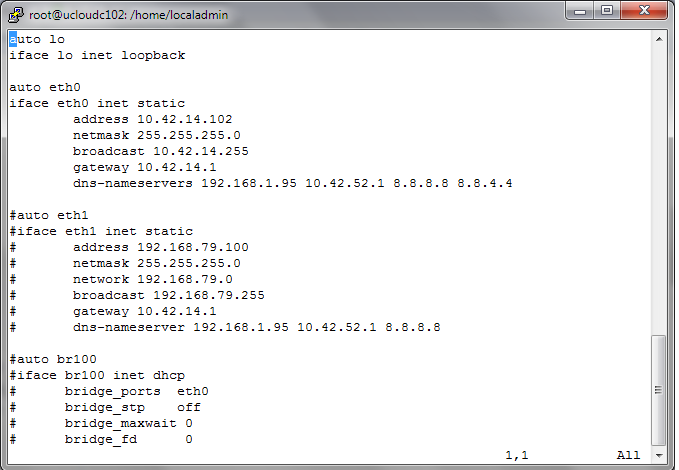

klo begitu sy kasih konfigurasi networknya mas.
Ria Komputer
| Release name | date | Included Component code names [10] | Notes |
|---|---|---|---|
| Austin | 21 October 2010[32][33] | Nova, Swift | |
| Bexar | 3 February 2011[34] | Nova, Glance, Swift | |
| Cactus | 15 April 2011[35] | Nova, Glance, Swift | |
| Diablo | 22 September 2011[36] | Nova, Glance, Swift | |
| Essex | 5 April 2012[37] | Nova, Glance, Swift, Horizon, Keystone | |
| Folsom | 27 September 2012[38] | Nova, Glance, Swift, Horizon, Keystone, Quantum, Cinder | Openstack Folsom Architecture |
| Grizzly | 4 April 2013[39] | Nova, Glance, Swift, Horizon, Keystone, Quantum, Cinder | Openstack Grizzly Architecture |
| Havana | 17 October 2013[40] |
Nova, Glance, Swift, Horizon, Keystone, Quantum, Cinder |
Sorry yah gak perhatiin avatar dan nama ,, kirain noe cowo..
saat ini saya masih pakai konfigurasi dasar menggunakan devstack dan fuel mirantis... untuk install grizzly( catatan) grizzly saya mengalam hal yang sama karena saya di virtual box saya menggunakan 1 controller dan 1 node compute dan mengalam hal yang sama .. (karena ada salah di sisi konfiguras interface di vboxnya) error seperti ba noe.. mungkin coba bisa cek di sisi network apakah bisa ping ke ip tersebut vm ? Nanti kalau sudah selesai saya install mode bridge di fuel mirantis saya.. saya akan coba lagi apakah ada masalah sama vnc nya.
Ria Komputer
kenapa masih pakai essex... kayak kurang berpengalaman. maksudnya "saya kurang berpengelamana sama essex" :D sorry yah.. jangan salah mengira.. tangan saya keseleo
