Focus setting of Lifecam HD3000

[Marius Liebenberg]

Hi
I am rather new to OpenPnP. I have just started my machine build and I am busy getting to know the software.
I purchased two Microsoft Lifecam HD3000 cameras. There was no CD with the packaging so I dont have any means of talking to the camera.
I found that the focus setting are not enabled when I create a new camera under Camera Specific Settings.

Is there a way to enable that so that I can set focus manually please?

[Jason von Nieda]

Hi Marius,

The Internet leads me to believe that that is a fixed focus camera, so the focus is not adjustable from software. See https://answers.microsoft.com/en-us/windows/forum/apps_windows_10-camera/microsoft-lifecam-hd3000-focus-not-working-on/7c2c7958-c327-4699-b849-508df0cd090e?auth=1.

Jason

On Thu, Oct 12, 2017 at 8:20 AM Marius Liebenberg <mdlca...@gmail.com> wrote:

[Cri S]

I have that camera and it is fixed focus.
For using it as macro camera, i have modified it.
Without modifications, the only method is to use additional
(macro/magnifications) lenses.
I don't know if it is suitable as downlooking camera without modification.

> --
> You received this message because you are subscribed to the Google Groups
> "OpenPnP" group.
> To unsubscribe from this group and stop receiving emails from it, send an
> email to openpnp+u...@googlegroups.com.
> To post to this group, send email to ope...@googlegroups.com.
> To view this discussion on the web visit
> https://groups.google.com/d/msgid/openpnp/CA%2BQw0jxwjv04XO2u9ArHQKE%2Bh9sFfNzyS%3D4T6%2ByPf3DZCnV3Dw%40mail.gmail.com.
> For more options, visit https://groups.google.com/d/optout.
>

[n.a.m...@gmail.com]

Hello Marius,

The Microsoft Lifecam HD3000 is a fixed-focus camera, i.e. the focus cannot be changed through software.

Regards,
Niels.

--
You received this message because you are subscribed to the Google Groups "OpenPnP" group.
To unsubscribe from this group and stop receiving emails from it, send an email to openpnp+u...@googlegroups.com.
To post to this group, send email to ope...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msgid/openpnp/51b684b3-f34d-4b08-b8cd-3c443ae86d5e%40googlegroups.com.

[Marius Liebenberg]

What kind of modifications are we talking about?

[Marius Liebenberg]

Hi Cri S
What does the modifications amount to. Is it worth the trouble?

[Cri S]

Modification of optical mount to increase objective distance to sensor.
Using macro lenses is annother equivalent possibility,
It is a great camera
You can see the internal here,
https://astrophotovideo.wordpress.com/adapting-a-webcam-to-a-telescope/
The objective don't have enought movement on the screw in order to do
macro focusing.

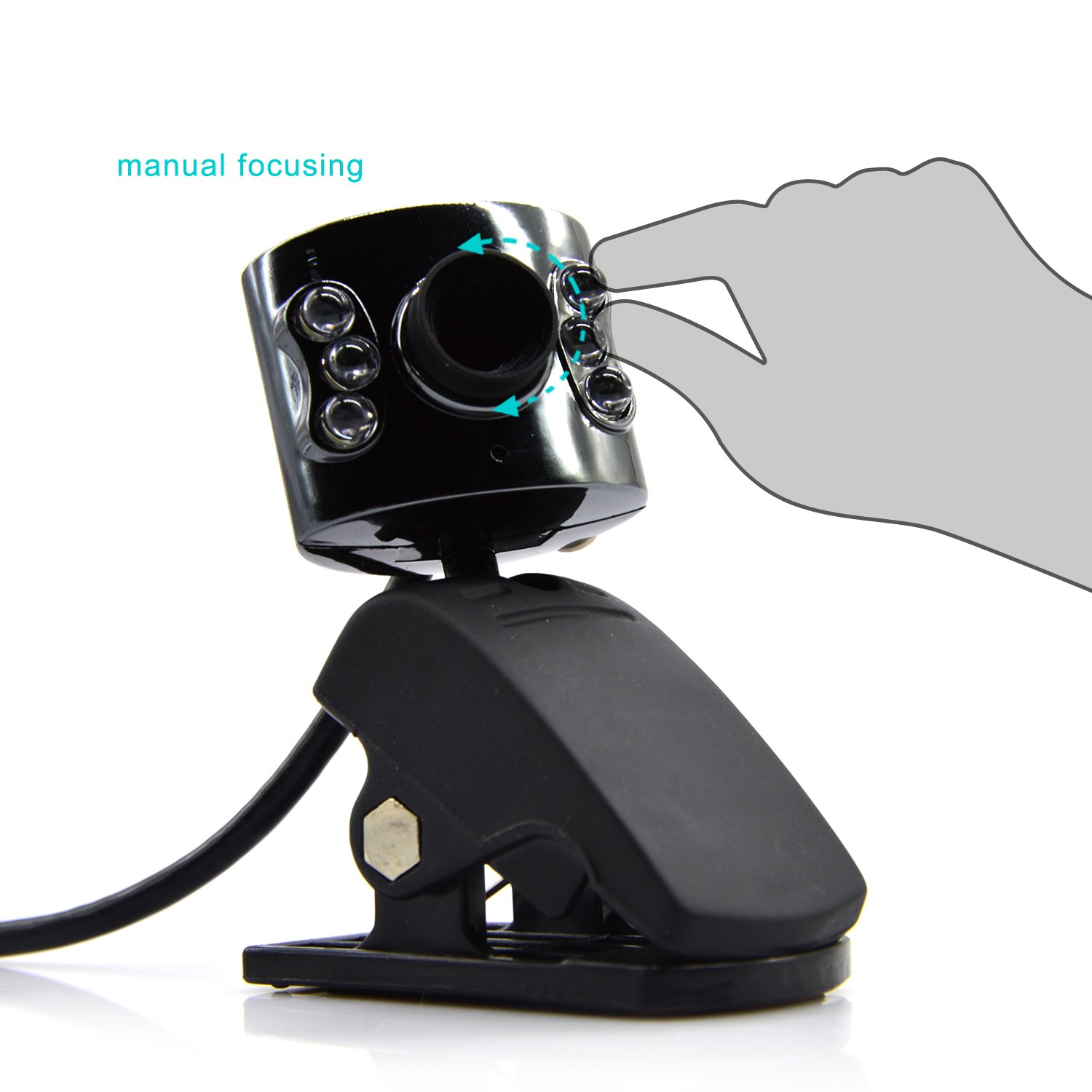

As example on this vga camera the objective need to be just screwed to
macro position.
https://images-na.ssl-images-amazon.com/images/I/71u0PGog%2BFL._SL1500_.jpg
as on most M12 objectives where the objective position could be
changed for 5-10mm.
Maybe there are other versions with more .lense travel , the version i
own have 70% pcb size
compared to the internals displayed on the above link for the hd3000 camera.

Cri.S
