NetAnim doesn't show TCP meta

[Denis Iovlev]

Hi.

I use ns3-3.21 with NetAnim 3.105. And I can not get TCP meta in NetAnim in star-animation example. I get only IPv4 meta only instead.

What is problem?

Also... How can I get graph and diagram such as on this image: https://www.nsnam.org/wiki/File:NetAnim.3.105.png? There are my views:

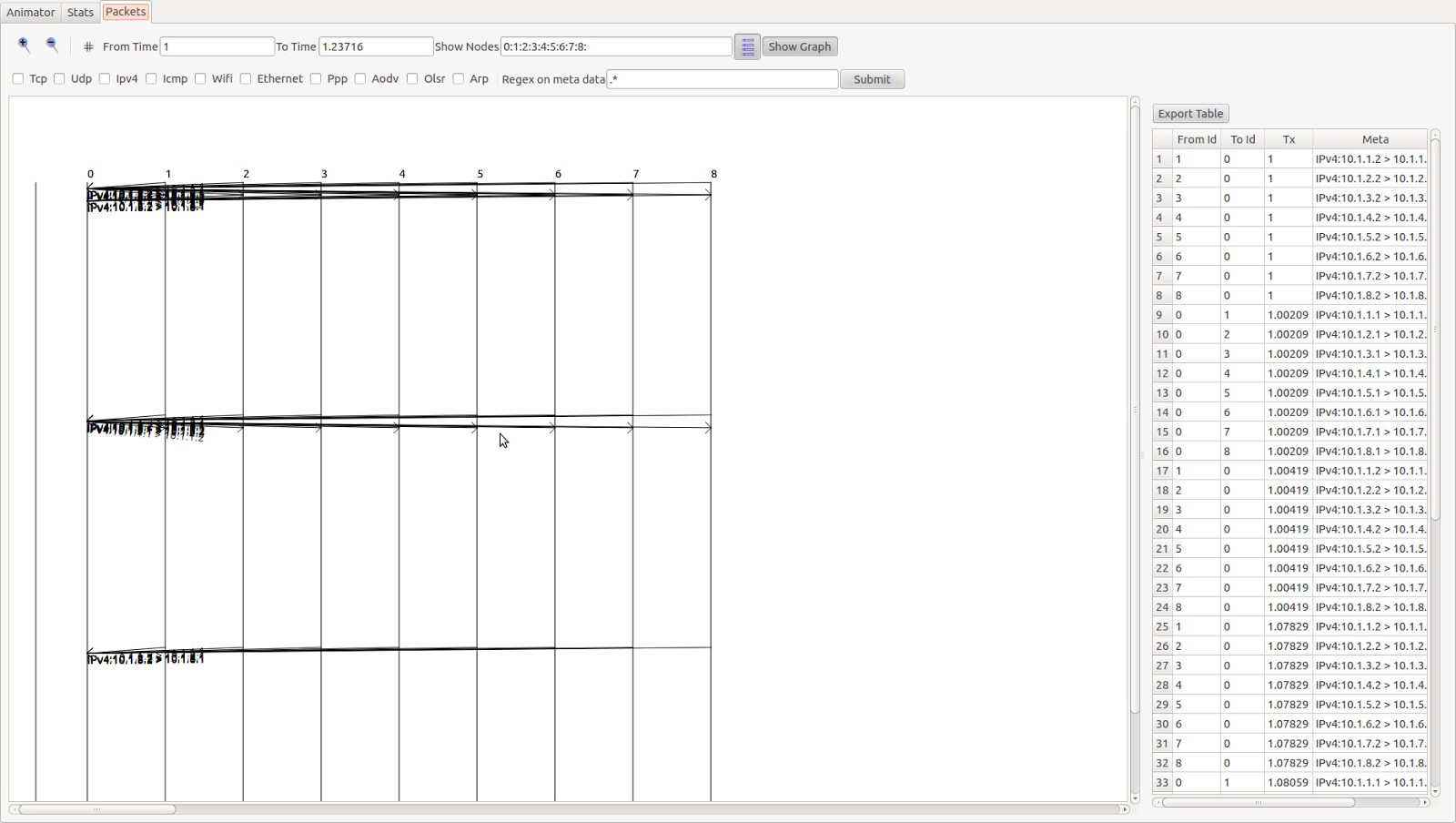

Pic 1. Ugly diagram

Pic 2. No cwnd graph

[john.ab...@gmail.com]

Looks like a bug let me check

--
You received this message because you are subscribed to the Google Groups "ns-3-users" group.
To unsubscribe from this group and stop receiving emails from it, send an email to ns-3-users+...@googlegroups.com.
To post to this group, send email to ns-3-...@googlegroups.com.
Visit this group at http://groups.google.com/group/ns-3-users.
For more options, visit https://groups.google.com/d/optout.

[John Abraham]

can you try cloning netanim again

hg clone http://code.nsnam.org/netanim

there were some TCP headers that were introduced recently that needed a change in the regex I was using.

john

[Denis Iovlev]

It is working! Thanks:)

But I still can not get cwnd graph on node properties tree panel. Do I need to enable something in star-animation example?

[Denis Iovlev]

Also, there are not ipv4 address in node property tree.

[John Abraham]

see attached code,

it requires understanding the "resources_demo.cc" example under neptunium.

and also an understanding of ns-3 trace sources.

attached screenshots. Note, I think node 0 does not have a change in CWND so the trace is not triggered.

Further the counters are triggered (in this case) when a CWND change occurs, so they are available only after 1 second (when the app starts). click the node panel only after that.

[Denis Iovlev]

Thank you for help. It is all right.
