Lte packet go to wrong function(eNB)

[Yu-Xiang Huang]

Hi every one,

Because I want to simulate the MEC(mobile multi-access computing) to measure latency, I use a method(virtual tun net device) which connection type between S/P-GW and RemoteHost to apply eNBs to simulate MEC on eNB.

I add new variable tunDevice(enbVgsDevice) to "Epc-Enb-Application" and set the "SetSendCallBack"  in the  "pointer-to-point-epc-helper::AddEnb(...)" to create link .

This method which is imitated the connection type between S/P-GW and RemoteHost does not modify anything(changed just variable name).

In Epc-Enb-application, I add two function "SendToVgsSocket(..)" and "RecvFromEnbVgsDevice(...)" .

The "SendToVgsSocket(..)" is same the "epc-sgw-pgw-application::SendToTunDevice(...)" (But remove other useless parameters, just leave "->Receive(...)" to sned packet )

and in the "epc-enb-applicaiton::RecvFromLteSocket(...)" to forward packet to VM on the eNB(simulate MEC).

The "RecvFromEnbVgsDevice" is same the "epc-sgw-pgw-application::RecvFromTunDevice(...)" to receive the packet from VM on the eNB , and it is set the "SetSendCallBack" in "pointer-to-point-epc-helper".

(imitate the connection between S/P-GW  and RemoteHost)

A problem is UE packets are received by "Epc-Enb-application::RecvFromLteSocket(..)" first ,but UE packets will received by "Epc-Enb-application::RecvFromEnbVgsDevice(..)" first after I set "SetSendCallBack" for "RecvFromEnbVgsDevice(...)" .

Can any one tell me how to solve it?  Thank you!

Best regard

YX-H

IP :7.0.0.2 is UE, 192.168.10.2 is RemoteHost on the eNB(simulate MEC), I use the lena-simple-epc.cc to test it.

normal before set setSendCallBack:

unnormal after set setSendCallBack:

Packet will go "RecvFromEnbVgsDevice(..)" first.

[Yu-Xiang Huang]

Hi every one,

Maybe I need to explain in detail and shortly.

Becasue I want to simulate the MEC(Multi-access edge computing) on eNBs,

I imitate the relation between S/P-GW and remoteHost.

Fist, I add a variable "Ptr<VirtualNetDevice> enbVgsDevice" and two functions, "SendToVgsSocket" and "RecvFromEnbVgsDevice" in epc-enb-app.

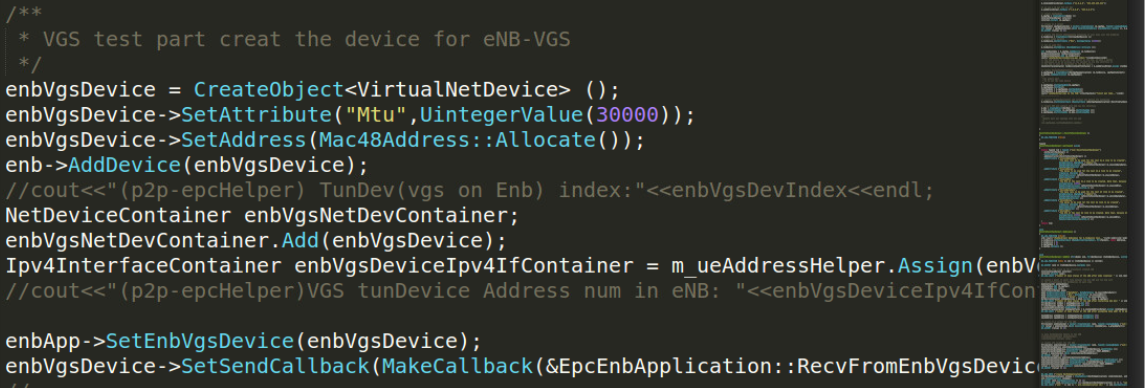

Second, in "void PointToPointEpcHelper::AddEnb(...)" , to configure vgsDev's attribute, Mac, and use the "m_ueAddressHelper" to assign IP to it,

and add "enbVgsDevice->SetSendCallback(MakeCallback(&EpcEnbApplication::RecvFromEnbVgsDevice,enbApp));".

Finally, I use the point-to-point-helper to connect the eNB and the remoteHost on the eNB.

Therefore , there will have the strange result which is the second picture above.

IP :7.0.0.2 is UE, 192.168.10.2 is the remoteHost on the eNB.

I use the example code to test it.(lena-simple-epc).

Thank you!
