Open Source AFM Controller for hacking commercial DIY AFM

[Edwin Hwu]

Hi All,

Here is an open source AFM controller which hacks commercial AFM company's setup:

http://www.stromlinet-nano.com/#

https://www.youtube.com/watch?v=WwAWCcaZgrw

Arduino DUE firmware code by Bobby

https://drive.google.com/open?id=0Bzevg1vN7t_VVk90TnJPMFFKSzA

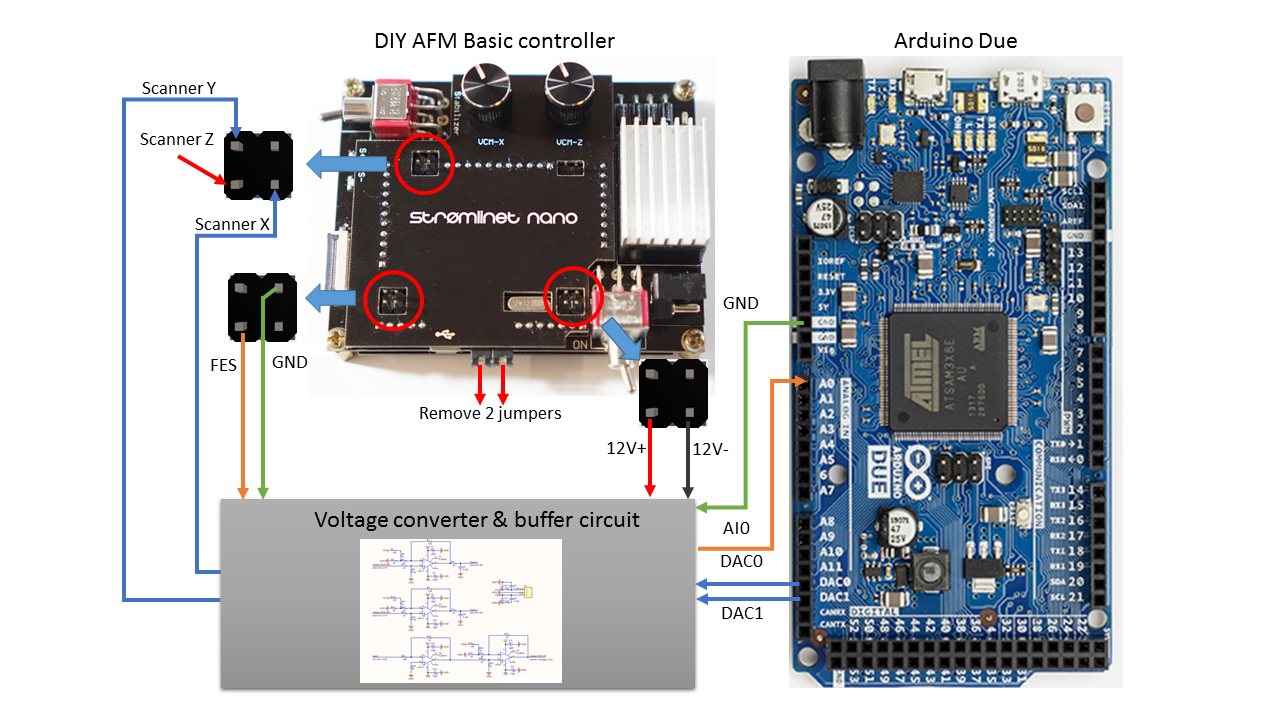

Circuit connection instruction

https://drive.google.com/open?id=0Bzevg1vN7t_VNklvdExlS3JlMEk

Voltage converter and buffer circuit design by Eric

https://drive.google.com/open?id=0Bzevg1vN7t_VTy0zcUZiWXpBMWc

Free Java IDE instruction by Bobby

https://drive.google.com/open?id=0Bzevg1vN7t_VUnRFRndZQjMtV2s

Java based AFM control software code by Bobby

https://drive.google.com/open?id=0Bzevg1vN7t_VYUtWTk54WFEzcGc

[russell_c]

I am trying to build this for our high school STEM (science technology engineering medical ) programs for young students.  Is there some recommendations for the pin out of the PDIC and flex cable connection ?  it is not clear to me if a certain brand should be used or where to find that electrical connections ?  I found some are pretty easy and some have programmable gain.

Thank you for your help,

russell
