How to check Bluetooth Connection

[Wojciech Borkowski]

Hello guys,

I already can connect and disconnect to my BT module (HC-06), but I don't know how to check the connection. I want to alert user about no power on arduino with this module, how can I make this? I spend few hours thinking about it and there is nothing here, please help.

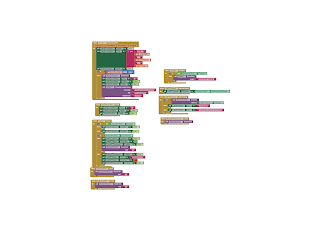

I attach my block diagram.

[Taifun]

send some text to the Arduino and if your get a response, you know it is still connected, else it is disconnected

btw. you might want to connect correctly like this...

Taifun

[Wojciech Borkowski]

@Taifun - thank you for your answer

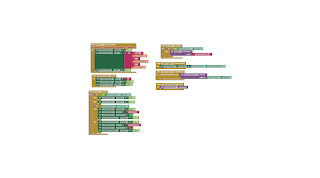

I modified block diagram and now it looks like this. I used your suggestion about correctly connection. I noticed, that error 516 is about broken pipe, so I used it for disconnect my BT, please tell my is that right thing.

[Taifun]

the property IsConnected will not be updated automatically in case the connection is gone

to check if the devices are still connected, as far as I know there is only the already mentioned method...

send some text to the Arduino and if your get a response, you know it is still connected, else it is disconnected

Taifun

[Wojciech Borkowski]

Yeap, tried to use "IsConnected" but it isn't work. You might not notice that I add sending "t" to timer1 :)
