Swiping images in App Inventor 2

[Dea Avega Editya]

Hi everyone,

I want to add images swiping-feature in my app, and in order to do that i just followed the guidance from Taifun on his puravidaapps website. His snippet is just as follow:



(In my own app, i dont need the top or bottom swiping, so i dont use the correlated blocks)

The problem is, i can't find a procedure block that contain Call [left or right] Direction. As you can see below, i just have 2 procedure blocks but not the Direction blocks:

Does anybody know what i have missed here?

Your comments is really appreciated guys.

[SteveJG]

The following tutorial uses a modification of Taifun's example swiping images but only left to right; right to left

Back in Time .. an unusual Talking Clock with App Inventor

 The example might help you.

Regards,

Steve

[Abraham Getzler]

From what I see in the blocks image,

the lesson here is on how to decide

which of 8 or so directions

is being swiped, based on the tests in

the example.

The procedures being called are not necessary for the

sample, just the identification of which of the 8 directions each would handle.

ABG

[Taifun]

the procedure leftOrRight is a custom procedure and you also can copy it from my example snippet How to Swipe left/right and top/bottom to trigger something

but as ABG said, to detect only  left or right swipe, the xvel parameter would be sufficient, see also my App Inventor Classic snippet here https://puravidaapps.com/snippets1.php#flung

if xvel < 0

then <do something for seft swipe>

else <do something else for right swipe>

Taifun

[Dea Avega Editya]

Great, i can copy the direction procedure from your snippet.

If i want to make a text appeared under the image which is swiped, do you have any suggestion to do that?

For example under Image 1 there will be name "The Image 1" automatically, then if image 2 appears, thus the text under it will be changed to "The Image 2".

[Taifun]

use a list to store the image names and a label to display the current image name

• How to work with Lists by Saj
• How to work with Lists and Lists of lists (pdf) by appinventor.org

Taifun

[Dea Avega Editya]

To be honest, that web's explanation is too complicated for me. What i have in my mind is to add Label under the Canvas, when the canvas is swiped left or right, the Label will be automatically changed to the name of image that shown by canvas.

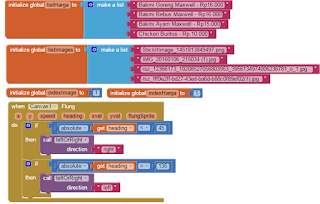

I tried to make my blocks, modified from your snippet, but apparently it doesnt succeed. The label only changed once to name1 (i have 4 list of the images names)

 I understood that the Label is unable to response to touch/swipe. Do you have any alternative/advice to do that?

[Taifun]

you only need one index

Taifun

[Abraham Getzler]

I did a simple left-right swipe example in this thread recently.

https://groups.google.com/d/msg/mitappinventortest/Q1Ow4UCe78g/Xmnn9WvIAQAJ

The if/then/else block test is the relevant part for you, to tell you right or left.

You probably have the rest of the code working by now.

If you have trouble keeping the text and images in sync,

consider switching to a list of pairs ((image1.jpg,image1 text), (image2.jpg,image2 text),...)

and use the lookup in pairs block to translate image file name into label text value.

ABG

[Dea Avega Editya]

The swiping images feature works, but not with the text label.

[Dea Avega Editya]

ABG, I have followed your example. But, I dont understand with your advice by switching to a list of pairs and use the lookup in pairs block to translate image file name into label text value.

[Dea Avega Editya]

Dear all, Alhamdulillah-praise to God! finally i succeed to make dynamic images and label by using some modifications from Taifun snippet. I just added call LeftorRight2 to trigger the label change.

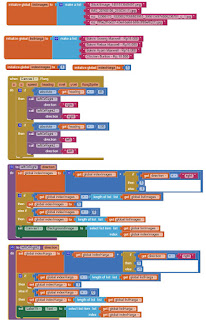

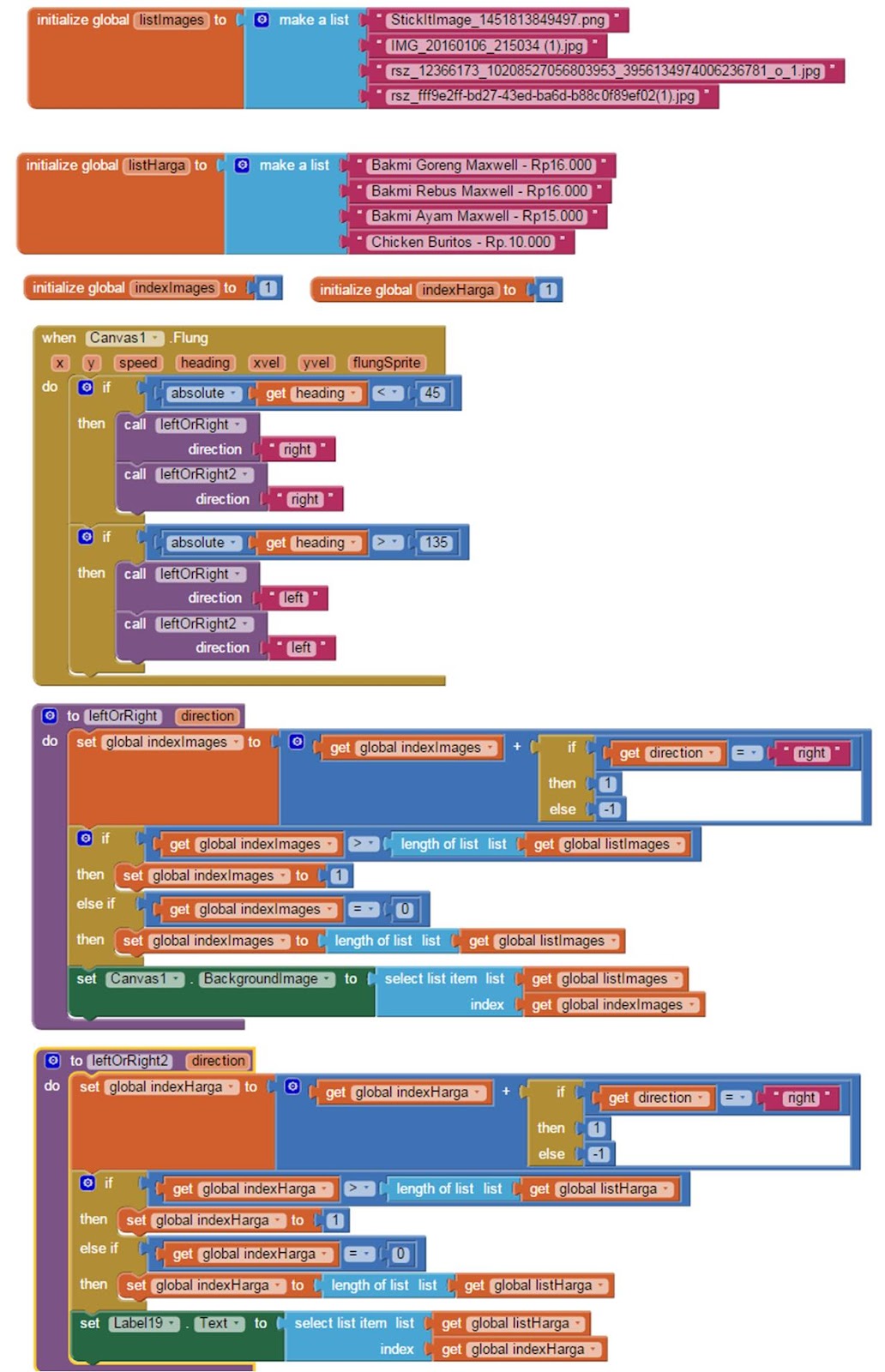

The blocks are as follow:

Now I am so happy, thank you Taifun, ABG, and Scott for your great suggestion. You all are my great mentors!

[Taifun]

as already said earlier, you only need one index, which would avoid redundancy

Taifun

[Dea Avega Editya]

Thank you Steve for your advice. Really kind of you guys!
