mechaduino deconstructed...

Cristian Nicola

unread,

Oct 30, 2016, 2:25:00 PM10/30/16

to Mechaduino

having failed to get my mechaduino(s) board to work and considering the purpose of this exercise for me was to learn about how it all works, i am now starting to deconstruct the mechaduino board into the "components".

if anybody is interested on any parts i can share the OSHPark links. so far i have:
- A4954 module
- 5v to 3v level shifter
- AS5047 nema holder
- zero board (UC with headers for the other boards, switch button, usb, vreg)

Chris

Jeno Bozoki

unread,

Oct 31, 2016, 1:38:35 PM10/31/16

to Mechaduino

Hi Nicola, I did the same. Instead of the zero board I ordered the tau board from rabitprototypes. I also created the as5047 nema compatible breakout. For the motor driver i ordered a 5 pack of dual H bridge from aliexpress, also the level converters. I plan to create a functional modular equivalent of mechaduino, with the options to replace either the decoder with a linear one or the motor driver with a stronger one. I already have 42A dual H bridge modules for heavy lifting. Tuning the software for a different, pwm based motor driver is the main question for me now.

Cristian Nicola

unread,

Oct 31, 2016, 2:03:22 PM10/31/16

to Mechaduino

I am also looking to replace as5047 with an as5311 for some tests :)

i did asked Kai if we can use his repository to put the eagle files, otherwise i will create a new one.

Chris

Cristian Nicola

unread,

Oct 31, 2016, 2:13:34 PM10/31/16

to Mechaduino

the boards:

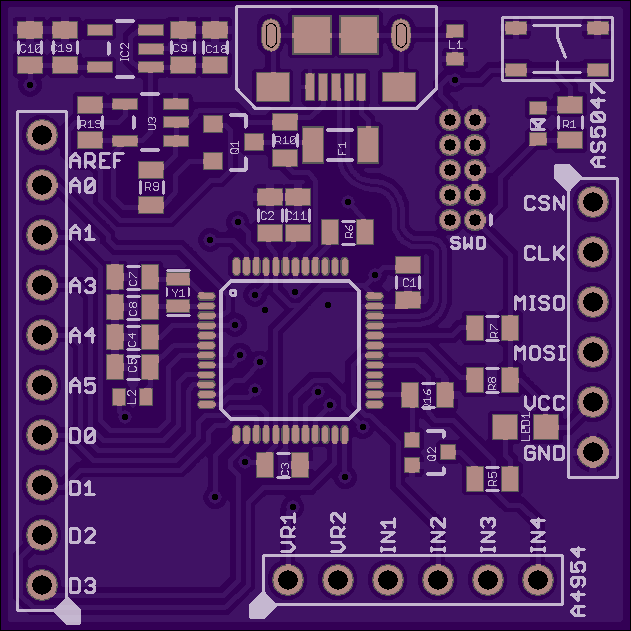

- zero (micro) : https://644db4de3505c40a0444-327723bce298e3ff5813fb42baeefbaa.ssl.cf1.rackcdn.com/3525e9a124d6f177911fcfdd86f5b3fc.png

- as5047 encoder: https://644db4de3505c40a0444-327723bce298e3ff5813fb42baeefbaa.ssl.cf1.rackcdn.com/0cffe1f2f1996a1ac5931e1681f62355.png

- a4954 https://644db4de3505c40a0444-327723bce298e3ff5813fb42baeefbaa.ssl.cf1.rackcdn.com/fcdd04952348ffc41c64b8d6f5f71cf0.png

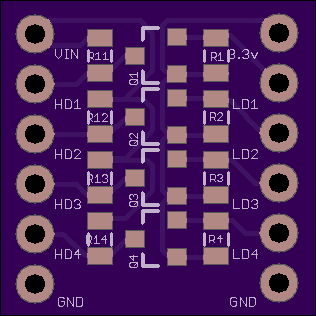

- level shifter https://644db4de3505c40a0444-327723bce298e3ff5813fb42baeefbaa.ssl.cf1.rackcdn.com/afe882d3536a8cc5909f9d842acb6f62.png

Trampas Stern

unread,

Nov 13, 2016, 11:58:14 AM11/13/16

to Mechaduino

Cristian, if you want bare boards please let me know I have a stack of my Mechaduino clone PCBs, see Nano Zero Stepper at www.misfittech.net. I also have some populated boards in stock, I expect to have a larger stock of boards next week.

Trampas

Cristian Nicola

unread,

Nov 13, 2016, 4:14:24 PM11/13/16

to Mechaduino

I would love some but i fear the shipping would be more than the boards themselves. I have ordered some of the boards from OSHPark where i have split mechaduino in modules - a motor driver, an encoder, a zero board and a level shifter. They have now been shipped and i should be able to use them soon. Also i hope to replace the A5047 with an A5311 or something similar for linear measurements, tho i am thinking about having an interface for the encoder which would be separate of the zero board - kind of like what Kai suggested the other day with a smaller micro just continous reading and averaging the encoder thus making the value more precise.

Unfortunatelly my time is very limited on this project ...

Trampas Stern

unread,

Nov 14, 2016, 7:47:27 AM11/14/16

to Mechaduino

Yeap I was looking at making a linear encoder using a string and the AS5047, see pictures here: https://groups.google.com/forum/#!topic/mechaduino/A0VR1HhEY5E

I have looked at the AS5311 in the past, but the magnetic strip/tape that is needed is expensive and hard to come by. I even got a evaluation board to test as I heard that common magnetic strip tape would work, which was false.

As far as the Zero goes, I was needing a Zero that was small for some audio device, so I created one with the same footprint as the Arduino Nano, http://misfittech.net/product/nano-zero/. If I could get volumes of sales high enough I could significantly lower the price.
