Re: Export result into JPEG or PDF

[Robin Mitchell/LBNL]

Masoud

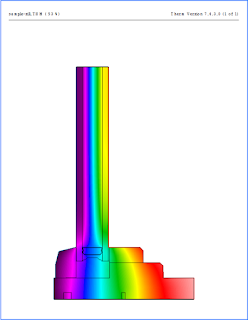

I am not sure what simulation result you want to export, but the Print option can be used to print the currently displayed model (if you had results and were displaying isotherms or color flooded IR they would be printed). You could print to a PDF printer if you had one installed. You can see what would be printed with the File/Print Preview menu option. Here is a screenshot of a Print Preview of a sample model, which could then be printed to a PDF. Alternatively, you can just do a screen capture of the model, which would allow you to get the temperature scale included in the image.

Robin

On Thursday, February 11, 2016 at 2:57:00 AM UTC-8, masoud sajjadian wrote:

To whom it may concern,

How can I export my simulation result into the JPEG or PDF file? or any other format that can be opened without using therm software?

Thank you,

Masoud
