PlayerEndpoint RTSP stream

[Denis Syroezhkin]

Hello!

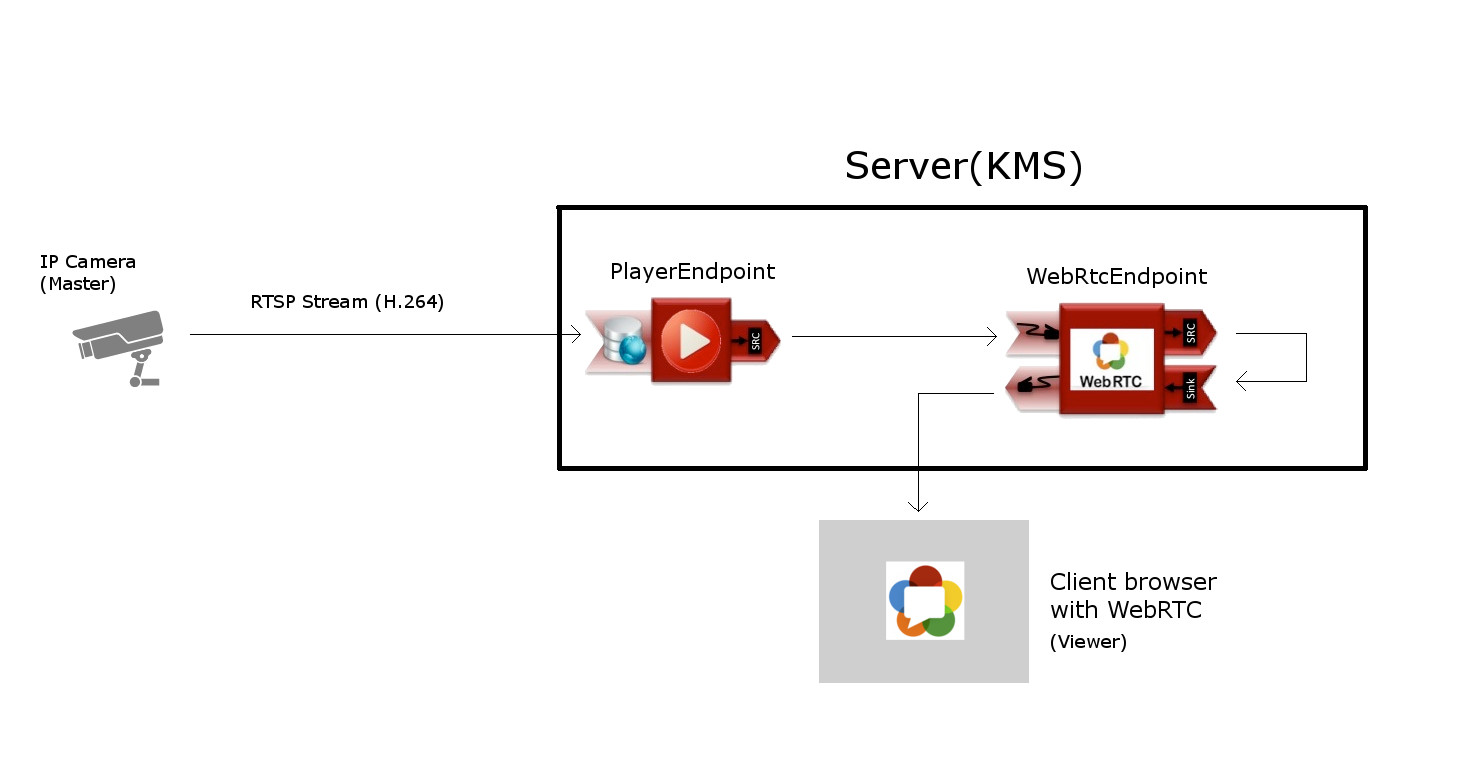

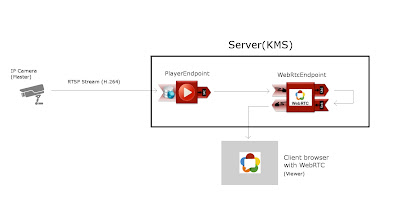

Please tell me how to implement such a scheme? (attached)

To help you answer my question, I will divide it into several small issues:

1. Where indicate the source for RTSP stream on PlayerEndpoint?

2. How to bridge the PlayerEndpoint WebRtcEndpoint?

3. How to use the module as a master PlayerEndpoynt?

Thank you very much!

[Jose Antonio Santos Cadenas]

Your application is as simple as your schema.

Just create a player and a WebRtcEndpoint. Assign rtsp URL to player and negotiate webrtc endpoint. Then execute play in player.

There are examples of all of this in demo projects.

--
You received this message because you are subscribed to the Google Groups "kurento" group.
To unsubscribe from this group and stop receiving emails from it, send an email to kurento+u...@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

[Jose Antonio Santos Cadenas]

I cannot write the code for you now, There is a lot of sample code in the repository, I think that there is a player example for java.

El sáb., 10 de enero de 2015 1:52, Denis Syroezhkin <kol...@gmail.com> escribió:

Okay, but how to do it? You can sample code using PlayerEndpoint? Where to indicate the source PlayerEndpoint?

пятница, 9 января 2015 г., 14:03:08 UTC+4 пользователь Jose Antonio Santos Cadenas написал:

[Denis Syroezhkin]

private synchronized void master(WebSocketSession session, JsonObject jsonMessage) throws IOException {

if (masterUserSession == null) {

masterUserSession = new UserSession(session);

pipeline = kurento.createMediaPipeline();

masterUserSession.setWebRtcEndpoint(new WebRtcEndpoint.Builder(pipeline).build());

WebRtcEndpoint masterWebRtc = masterUserSession.getWebRtcEndpoint();

PlayerEndpoint player = new PlayerEndpoint.Builder(pipeline, "rtsp://user:pass...@192.168.1.6:554").build()); //Create piperline PlayerEndpoint and URL RTSP

player.connect(masterWebRtc);

masterWebRtc.connect(player);

String sdpOffer = jsonMessage.getAsJsonPrimitive("sdpOffer").getAsString();

String sdpAnswer = masterWebRtc.processOffer(sdpOffer);

JsonObject response = new JsonObject();

response.addProperty("id", "masterResponse");

response.addProperty("response", "accepted");

response.addProperty("sdpAnswer", sdpAnswer);

masterUserSession.sendMessage(response);

}

else {

JsonObject response = new JsonObject();

response.addProperty("id", "masterResponse");

response.addProperty("response", "rejected");

response.addProperty("message",

"Another user is currently acting as sender. Try again later ...");

session.sendMessage(new TextMessage(response.toString()));

}

}

Here we go?

суббота, 10 января 2015 г., 13:54:10 UTC+4 пользователь Jose Antonio Santos Cadenas написал:

[wood...@gmail.com]

Hi everyone, Trying to do the same for Node.js.

I've been trying to play around with a modified version the one-2-many tutorial example to establish a PlayerPipeline with RTSP stream and WebSocket Pipeline with no luck so far. I am pretty sure my js code is fine as I can see a stream from my IP Camera to Kurento Media Server but whatever is sent to Chrome from KMS does not seem to display on playback. All SDP exchange is complete and connection between KMS and Chrome seems fine.

Here is my code: https://gist.github.com/WooDzu/6c9ab9bada7572abcdc4
and SDP which comes back to Chrome:

    Received message: {"id":"viewerResponse","response":"accepted","sdpAnswer":"v=0
o=- 4703690930233602263 0 IN IP4 0.0.0.0
s=TestSession
c=IN IP4 0.0.0.0
t=0 0
a=group:BUNDLE audio video
m=audio 57339 RTP/SAVPF 0
c=IN IP4 192.168.1.74
a=rtpmap:0 PCMU/8000
a=sendonly
a=rtcp:57339 IN IP4 192.168.1.74
a=ice-ufrag:Pebg
a=ice-pwd:gBaz2VNNan2mTJbQ8Tdf/S
a=fingerprint:sha-256 ...trunc...
a=rtcp-mux
a=candidate:1 1 UDP 2013266431 192.168.1.74 57339 typ host
a=ssrc:1383035648 cname:user3936730632@host-2fb7e75f
m=video 57339 RTP/SAVPF 100
c=IN IP4 192.168.1.74
a=rtpmap:100 VP8/90000
a=sendonly
a=rtcp-fb:100 ccm fir
a=rtcp-fb:100 nack
a=rtcp-fb:100 nack pli
a=rtcp:57339 IN IP4 192.168.1.74
a=ice-ufrag:Pebg
a=ice-pwd:gBaz2VNNan2mTJbQ8Tdf/S
a=fingerprint:sha-256 ...trunc...
a=rtcp-mux
a=candidate:1 1 UDP 2013266431 192.168.1.74 57339 typ host
a=ssrc:97106667 cname:user3936730632@host-2fb7e75f
"}
SDP answer received, setting remote description

I would be great if anyone could point me into right direction or provide an alternative working sample.

WooDzu

[piotr.ga...@editshare.co.uk]

Thanks to the tip in another thread https://groups.google.com/forum/#!topic/kurento/nbjQQIpuIxA
I figured out that I was connecting WebRTC pipeline to itself. Silly me!

Gist Updated.

Keep up the the great work!

[Ivan Gracia]

WooDzu, could you describe your setup? Is your KMS behind a NAT? You might need a STUN server.

Ivan Gracia

--

[wood...@gmail.com]

Hi Ivan,

I have already figured out I was connecting WebRTC pipeline to itself. That post above I did from another google account
Thanks anyway!

WooDzu

[Ivan Gracia]

Ok, thanks!

--
