[jtablet-dev] JTablet2 backwards compatible bug

[Garret Cole]

Although I said the bug in paintchat was fixed, I guess it would have helped if I 'used' paintchat insead of just activating the pressure sensitivity. I havent been able to investigate why this happens in the current deployed paintchat (cause i have fucked with the code for months before deploying something new). But here is a visual example of the same app using JTablet2 drivers calling the Jtablet0.9x API and the new version.

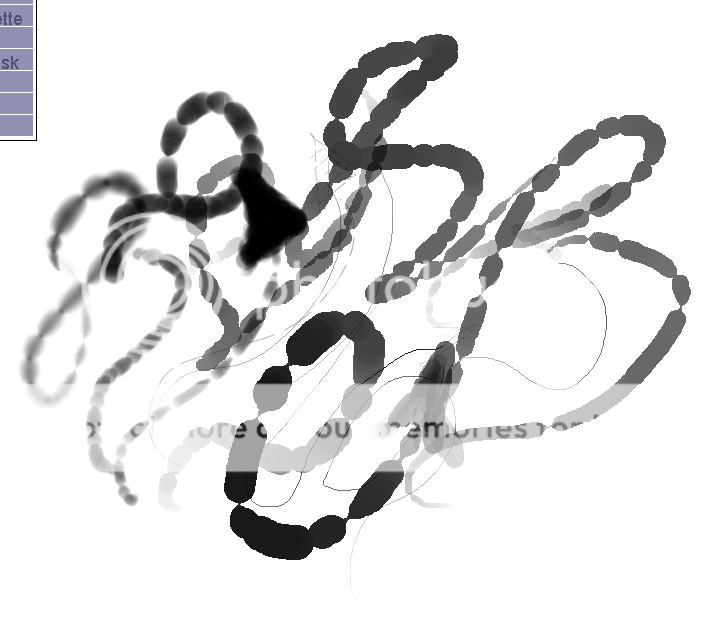

Using jtablet2 with 0.9x API
http://i375.photobucket.com/albums/oo197/riftgarret/screenshots/paintchatjtablet2artifact.png

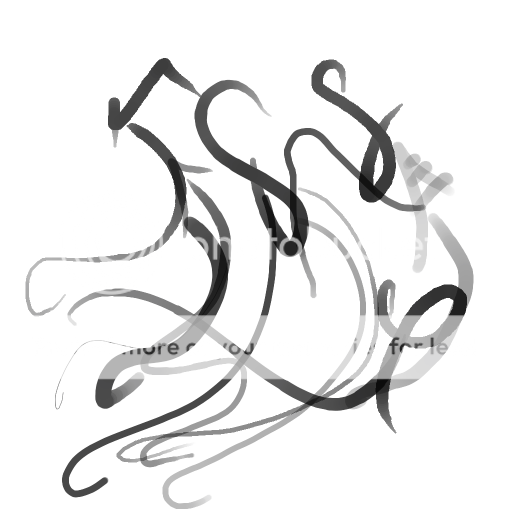

Using jtablet2 with jtablet1.2 API
http://i375.photobucket.com/albums/oo197/riftgarret/screenshots/paintchatjtablet2ok.png

I can tell you how some of the calls are being made, but essentially the bottom line, just swapping out jtablet 0.9x installation for the 'backwards compatable' jtablet2 is not achieving the same results.

Garret

--
You received this message because you are subscribed to the Google Groups "jtablet-dev" group.
To post to this group, send email to jtabl...@googlegroups.com.
To unsubscribe from this group, send email to jtablet-dev...@googlegroups.com.
For more options, visit this group at http://groups.google.com/group/jtablet-dev?hl=en.

[Marcello Bastéa-Forte]

Thanks for the screenshots, that helps a lot! I'll see if I can track it down for the 1.2.5 release.

Marcello

[Marcello Bastéa-Forte]

Hey Garret,

I finally found the cause of the problem you're seeing.

It appears to be due to a misunderstanding in the JTablet 0.9.x API spec by PaintChat/Shi-Painter. Specifically, the poll() method returns false when there is no new data, but PaintChat seems to be interpreting it as  no pressure.

I'll commit a workaround shortly and it should be included in the 1.2.5 release.

Marcello
