Cockpit foot braces for Thin Man

[Todd Aven]

These are gonna make for a cozy ride while heeled.

[Andrew Oeftering]

Where do I order these??

Andy Oeftering
Computer Troubleshooters
Red Bank - Eatontown - Tinton Falls, NJ
732-212-1001

Learn About Our 100% Uptime Guarantee
http://www.ctsredbank.com

Ranked #1 Computer Service Network - Entrepreneur Magazine

--
You received this message because you are subscribed to the Google Groups
"J/92 Owners" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to j92owners+...@googlegroups.com.
To post to this group, send email to j92o...@googlegroups.com.
Visit this group at http://groups.google.com/group/j92owners?hl=en.
For more options, visit https://groups.google.com/groups/opt_out.

[Todd Aven]

They were custom made by my friend. Production time was around 2 years. ;-)

Next weekend I'll take closer pictures and measurements to share with you.

[Ragtime!]

I've posted this before - here's another option:

The Left Coast Footrest

[Aaron]

Looking good Todd!
What are the dimensions? How high are these? Don't have the time to wait for next production run, so I suspect I'll make some up myself... ;)

[Todd Aven]

I'll be back at the boat this weekend and will share actual measurements.

[Todd Aven]

See the attached diagram for details of the foot braces I had made for Thin Man.

They are made of fiberglass and are layed up over a template. The radius of curvature at the top is roughly 1/2"-1", and the radius at the mounting flanges is probably 1/4".

Cheers,
Todd

[TCWippy]

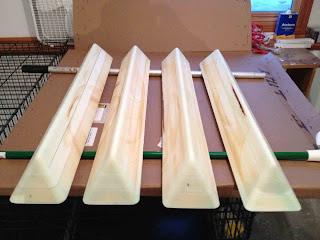

I'm in the process of relaminating my cockpit floor and adding improved footrests.  I bought a 40"x40" piece of 1" thick high density Corecell online from Noah's Marine, cut it into three 13" wide pieces, laminated the three pieces together, and cut that laminated section into four triangular footrests.  After trimming the ends off on a diagonal and shaping the corners up a bit, I'm laying three layers of 10 oz E-glass over them.  Once that has set up I will be epoxying them to the floor and then placing one additional layer of glass on them to fair them to the floor.  After final fairing and sanding, I'll be using Kiwi grip for my final surface.  Here are a couple progress photos.



[Andrew Oeftering]

Got this pix from April.  How did you find these work?



Andy Oeftering
Computer Troubleshooters
Red Bank - Eatontown - Tinton Falls, NJ
732-212-1001

Learn About Our 100% Uptime Guarantee
http://www.ctsredbank.com

Ranked #1 Computer Service Network - Entrepreneur Magazine



Visit this group at http://groups.google.com/group/j92owners?hl=en-US.

[Todd Aven]

The foot braces are awesome. The crew were concerned that it would make maneuvering in the cockpit difficult. In practice, they were _never_ (not once) a problem.

They have the delightful side benefit of providing a safe place to park a bottle of water or a handheld device (GPS, VHF, flashlight).

The only change I intend to make is to move them closer to the center of the cockpit for better ergonomics when heeled hard over.

Here's a video from early in the season which shows them in use.

http://vimeo.com/m/67118435

Cheers,

Todd

Visit this group at http://groups.google.com/group/j92owners.

[Andrew Oeftering]

Veeerrry cool..  Where’d you get that backrest on the starboard side??

[Todd Aven]

My crew brought it. Not sure where he got it, but it doesn't work. :-/

[Saltire]

I have bought a set of these and am having them installed for the driver - will send photos and let you know how well they work.



john
