What are your students printing?

[Matthew Zimmer]

I thought I would share some photos of what my students have been using the printer for.

They are designing a three piece bilge pump motor mount that wedges inside a 1/2inch PVC "T". The photo shows the design and revisions. They used Openscad for designing. They just have to print the third part.

[Matthew Zimmer]

They have run some tests on brushless motors and using them exposed to water. This housing protects the propellers from submerged objects and users from propellers. An easy mount will be added later for mounting to the ROV.

[Matthew Zimmer]

Here is a shot of the modified thruster. Again they used openscad to create the object.

[John E. Velis]

Matt,

That is great. Glad to see you guys are having fun with your new toy.

I am working at the college now and just unpacked a new Replicator2 and Digitizer (I know I'm not as cool as you building yours. :-)) and will fire it up with my elementary kids next week.

Have a great day.

John

--

John E Velis

Instructor, Computer Information Technology Program
Northwestern Michigan College
1701 E Front Street
Traverse City, MI 49686
231-995-1152 (wk)
231-499-4045 (cell)
jve...@nmc.edu (wk)
jo...@johnvelis.com (personal)

[Barb Land]

Way cool!

[Barb Land]

On Friday, September 27, 2013 3:32:45 PM UTC-4, Matthew Zimmer wrote:

[Matthew Zimmer]

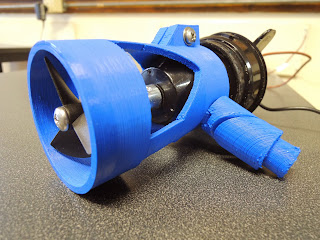

Here is a bilge pump motor mount and propeller guard. The propeller guard and mount for the motor are one piece. It mounts to two other pieces that wedge into a 1/2 pvc tee. Easy way to safely mount bilge pump motors to ROVs and meet MATE requirements of protecting propeller.

[CARIM R Calkins]

Cool piece!  How long did that take to print, and what type of support did you use?

[Grimm, William]

Wow That's a great design.



Is it on open source or did your kids design it?



Bill

William T. Grimm



---

From: innov...@googlegroups.com [innov...@googlegroups.com] On Behalf Of Matthew Zimmer [mzi...@mtu.edu]
Sent: Sunday, November 24, 2013 2:03 PM
To: innov...@googlegroups.com
Subject: Re: What are your students printing?

Here is a bilge pump motor mount and propeller guard. The propeller guard and mount for the motor are one piece. It mounts to two other pieces that wedge into a 1/2 pvc tee. Easy way to safely mount bilge pump motors to ROVs and meet MATE requirements of protecting propeller.

---

For your protection, this message has been scanned for viruses.

---

This email and any files transmitted with it are confidential and intended solely for the use of the individual or entity to whom they are addressed. If you have received this email in error please notify the sender. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Oak Park School District. E-mail transmission cannot be guaranteed to be secure or error-free, as information could be intercepted, corrupted, lost, destroyed, arrive late or incomplete, or contain viruses. The sender therefore does not accept liability for any errors or omissions in the contents of this message, which arise as a result of e-mail transmission. If you have any questions about this policy, contact the Oak Park Schools Technology Department. Get the Oak Park Advantage!

[Matthew Zimmer]

It is student designed. They will be releasing it as open source after adding some more comments to the code. They used openscad to write the part.

The only support was used in the holes for the nut pocket. The printed can build at a 45degree angle. We had 2mm of room left in the z axis when it was printed. Print took about 1.5hours.

[CARIM R Calkins]

Thanks Matt.  Happy Thanksgiving everybody.

[Geoff Clark]

Have you done any testing with it?
