Flatcar does not boot into updated version

[Yasha C]

Hi,

Sorry for bombing this everywhere. I have already filed git ticket and posted this in the user mailing list and the IRC. I am under a tight schedule hence posting even here for any kind of suggestions.

My issue, in summary, is, post-update rollout and reboot, /flatcar/vmlinuz-b is not found. I see this file in /boot/coreos along with the first_boot file.

For ease of the reader, following is the content of the git ticket (https://github.com/flatcar-linux/Flatcar/issues/122):

Flatcar does not boot into updated version

I am trying to upgrade my flatcar deployment from the current stable version (2345.3.1) to the current beta version (2411.1.1) via the Omaha protocol. I am using coreroller for the rollout mechanism. During this upgrade rollout, the OS on 2345.3.1 successfully downloads the new update (i.e. version 2411.1.1)

May 19 17:51:03 localhost update_engine[2575]: I0519 17:51:03.514751  2575 update_attempter.cc:316] Update successfully applied, waiting to reboot.
May 19 17:52:47 localhost update_engine[2575]: I0519 17:52:47.786886  2575 prefs.cc:51] certificate-report-to-send-update not present in /var/lib/update_engine/prefs
May 19 17:52:47 localhost update_engine[2575]: I0519 17:52:47.786928  2575 prefs.cc:51] certificate-report-to-send-download not present in /var/lib/update_engine/prefs
May 19 17:52:47 localhost update_engine[2575]: I0519 17:52:47.786934  2575 update_attempter.cc:131] Not updating b/c we already updated and we're waiting for reboot, we'll ping Omaha instead

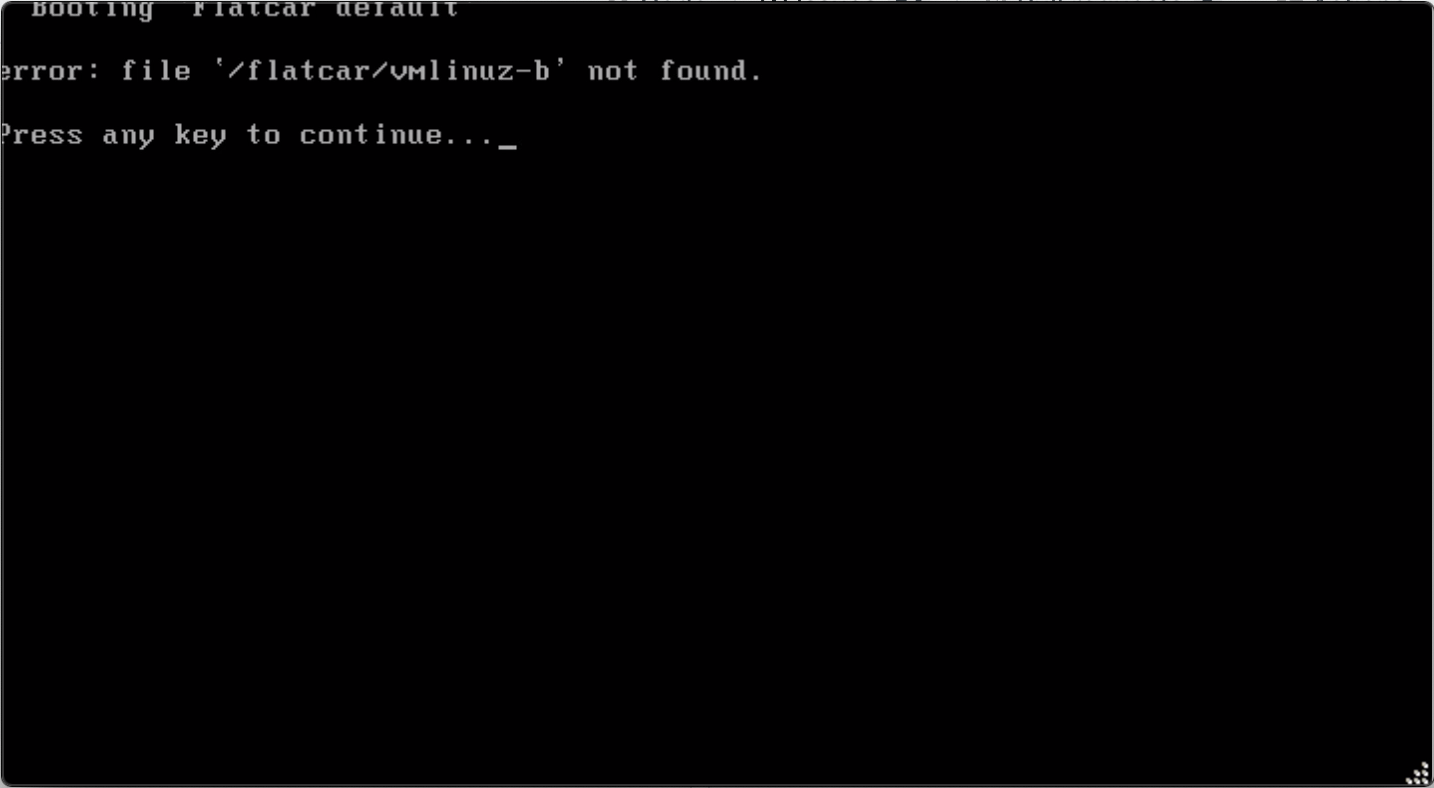

and reboots but stops during the boot cycle with the following error :

On pressing enter, it will show the GRUB menu with :

On selecting "Flatcar default" it will boot back into 2345.3.1 version and the whole cycle repeats.

Impact

I am not able to roll out upgrades to my flatcar deployments.

Environment and steps to reproduce

1. Set-up: The OS is deployed on VMWare Vsphere
2. Task: upgrade the os versions
3. Action(s): As described in the above paragraph
4. Error: Screenshot 1

Expected behavior
Os upgrades to 2411.1.1 version

Additional information
Now if I understand it right, from this document, https://docs.flatcar-linux.org/os/manual-rollbacks/ USR-A with UUID 7130c94a-213a-4e5a-8e26-6cce9662f132 is the active partition and points to the current version, in my case 2345.3.1

And also from grub.cfg,

function gptprio {
    # TODO: device name is no longer needed, should make it optional...
    gptprio.next -d usr_device -u usr_uuid
    if [ $? -ne 0 -o -z "$usr_uuid" ]; then
        echo
        echo "Reading or updating the GPT failed!"
        echo "Please file a bug with any messages above to Flatcar:"
        echo " https://issues.flatcar-linux.org"
        abort
    fi

    set gptprio_cmdline="@@MOUNTUSR@@=PARTUUID=$usr_uuid"
    if [ "$usr_uuid" = "7130c94a-213a-4e5a-8e26-6cce9662f132" ]; then
        set gptprio_kernel="/flatcar/vmlinuz-a"
    else
        set gptprio_kernel="/flatcar/vmlinuz-b"
    fi
}

So from the rollback document and grub.cfg during upgrade rollout and subsequent reboot the UUID will be set to one other than 7130c94a-213a-4e5a-8e26-6cce9662f132. Hence, GRUB is trying to point to /flatcar/vmlinuz-b, which it is not able to find. On inspecting the /boot partition, I do not see /flatcar/vmlinuz-b in /boot/flatcar/ but in /boot/coreos/.

core@localhost ~ $ sudo su
localhost core # cd /boot/flatcar/
localhost flatcar # ls
grub  vmlinuz-a
localhost flatcar # cd ../coreos/
localhost coreos # ls
first_boot  vmlinuz-b

Also hopefully this info helps:

core@localhost ~ $ sudo cgpt show /dev/sda
       start        size    part  contents
           0           1          Hybrid MBR
           1           1          Pri GPT header
           2          32          Pri GPT table
        4096      262144       1  Label: "EFI-SYSTEM"
                                  Type: EFI System Partition
                                  UUID: 15F4D856-29DA-4F9D-BDFB-93CEA0FC7748
                                  Attr: Legacy BIOS Bootable
      266240        4096       2  Label: "BIOS-BOOT"
                                  Type: BIOS Boot Partition
                                  UUID: 757841A0-7143-4BB6-AD13-03F795C6B11F
      270336     4194304       3  Label: "USR-A"
                                  Type: Alias for coreos-rootfs
                                  UUID: 7130C94A-213A-4E5A-8E26-6CCE9662F132
                                  Attr: priority=2 tries=0 successful=1
     4464640     4194304       4  Label: "USR-B"
                                  Type: Alias for coreos-rootfs
                                  UUID: E03DD35C-7C2D-4A47-B3FE-27F15780A57C
                                  Attr: priority=1 tries=0 successful=0
     8658944      262144       6  Label: "OEM"
                                  Type: Alias for linux-data
                                  UUID: 8F99D006-4F26-46D2-A567-B6FAC073BB61
     8921088      131072       7  Label: "OEM-CONFIG"
                                  Type: CoreOS reserved
                                  UUID: FE8334B2-114A-4074-95DF-0030E3F70293
     9052160    29913055       9  Label: "ROOT"
                                  Type: CoreOS auto-resize
                                  UUID: 1C0A563E-E727-4D3D-8920-B0D09FBA7982
    38965215          32          Sec GPT table
    38965247           1          Sec GPT header

Kindly let me know if any further information is required. Any help here is much appreciated.

Regards

Yasha C

[Kai Lüke]

Hi,

for other readers: I've responded in the ticket but can summarize here.

The problem is that as soon as /boot/coreos is created on a new Flatcar installation (not migrated from CoreOS), the kernel will be placed there during the update instead of /boot/flatcar.

Currently, the first_boot flag file can only be created under the new location /boot/flatcar/first_boot.

In-place migrations from CoreOS have to stick to /boot/coreos/first_boot because GRUB checks this file and the GRUB code is not migrated (see https://docs.flatcar-linux.org/ignition/boot-process/#reprovisioning).

I will try to add support for the old location /boot/coreos/first_boot on new Flatcar installations, too, to reduce the migration burden/confusion when new Flatcar machines are provisioned but in-place migrated machines also exist in the cluster and you don't know where to create the flag file.

Regards,

Kai

--
