Monospaced Font Character Width / Draw.io Console API

[Henning Dieterichs]

Hello!

I want to create a diagram that shows a syntax tree above a source text. To do that, I need every character in the source text to have a certain width, preferrable a width that works well with the grid.

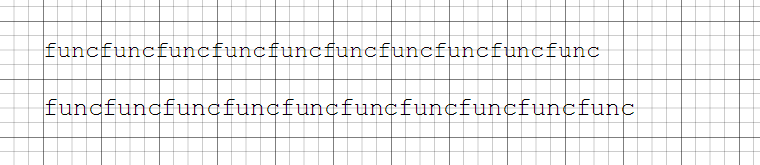

Sadly the following happens when I try to arrange the font size to the grid:

The font is both Courier New, in the first text block with a size of 16pt, in the second 17pt. As there are not font sizes in between, it seems I am out of luck.
What can I do to match the size of a character with the size of these small boxes the grid is made of?

My second approach would be to create a text element for each character so that I can arrange the characters individually. However I don't want to do that manually.

Is there a way to do this via the browsers dev console?

Thanks in advance!

[Gaudenz Alder]

Thanks for the report. We'll add support for text sizes with decimal points (eg. 16.5pt) in the next release.

[Gaudenz Alder]

Fixed in 5.4.4.4.
