Getting Oviyam 2 to display images from Orthan

[Eduin Lopez]

Hey there

I am trying to configure a service with oviyam 2.2 on a Tomcat 7 server and Orthanc 0.9.4 as a Dicom server.

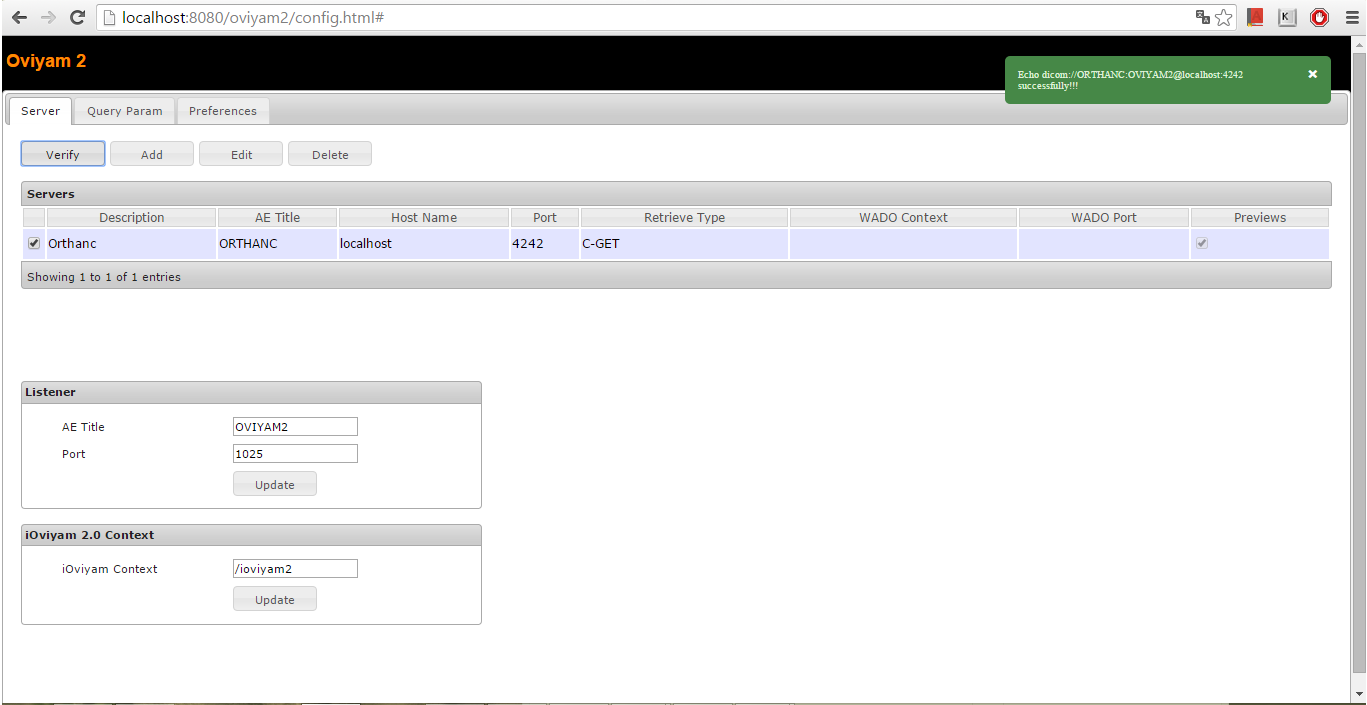

As you can see in the pictures everything seems to be configured correctly, but the problem arises when viewing the images.

I tried using C-MOVE and C-GET but that's not the reason.

Any help?

some Orthanc settings

"DicomServerEnabled": true,

"DicomAet": "ORTHANC",

"DicomCheckCalledAet": false,

"DicomPort": 4242,

   "DicomModalities": {

     "oviyam2": ["OVIYAM2", "localhost", 1025]

   },

Tomcat log attached





[Devishree Kalaiselvi]

Hi,

   There is no problem in the configuration. It seems the problem occurs while issuing instance level query. So make sure Orthanc server supports instance level query.

Thanks,
  Devishree.V

  Raster Images

--
You received this message because you are subscribed to the Google Groups "dcm4che" group.
To unsubscribe from this group and stop receiving emails from it, send an email to dcm4che+u...@googlegroups.com.
To post to this group, send email to dcm...@googlegroups.com.
Visit this group at https://groups.google.com/group/dcm4che.
For more options, visit https://groups.google.com/d/optout.

[Eduin Lopez]

I can see according to the official guide, Orthanc can act as C-Find SCP and C-Move SCP. That's all I could find so far.

[Devishree Kalaiselvi]

Long back, we tested with Orthanc server and unable to reach DICOM instance level query. This seems to be the same issue.

Thanks,
  Devishree.V

  Raster Images

[Sébastien Jodogne]

Hello,

Orthanc does support the instance level query.

However, in the "DicomModalities" of the Orthanc configuration, you need to set the manufacturer to "Dcm4Chee" (read the comments in the configuration file).

Sébastien-

[Devishree Kalaiselvi]

Hi,

  We'll test Oviyam2 with recent version of Orthanc and let you know the results and further processing.

Thanks,
  Devishree.V

  Raster Images

[Eduin Lopez]

Great, thank you very much for your answers, they have helped me a lot.

I'll keep an eye on progress.
