ssd lexar with DM918 controller

[Alandata Recovery]

anybody know if this is a relabelled controller chip

that is supported ?

--

Alandata Data Recovery -  (949)287-3282
"Cleanroom Data Recovery of RAID, VMware, NAS, Linux, Tape, Disk, Forensics"

www.alandata.com   www.alandataRecovery.com

[t...@desertdatarecovery.com]

The Lexar controllers I have seen on Flash media always start with FC.

I am guessing this is a specific one for SSDs.



Tim Homer - Lead Engineer

Desert Data Recovery

t...@desertdatarecovery.com

www.desertdatarecovery.com



From: datarecovery...@googlegroups.com <datarecovery...@googlegroups.com> On Behalf Of Alandata Recovery
Sent: Thursday, December 17, 2020 1:28 PM
To: datarecoveryce. <datarecovery...@googlegroups.com>
Subject: ssd lexar with DM918 controller



anybody know if this is a relabelled controller chip

that is supported ?



--

Alandata Data Recovery -  (949)287-3282
"Cleanroom Data Recovery of RAID, VMware, NAS, Linux, Tape, Disk, Forensics"

www.alandata.com   www.alandataRecovery.com

--
You received this message because you are subscribed to the Google Groups "DataRecoveryCertification" group.
To unsubscribe from this group and stop receiving emails from it, send an email to datarecoverycertif...@googlegroups.com.
To view this discussion on the web visit https://groups.google.com/d/msgid/datarecoverycertification/CAH-%2BjWQVxwwdpSjhzyodJYn_ABxg-KC3u6_53snEuJf%2B_Mm11w%40mail.gmail.com.

[pbzcbf...@gmail.com]

I suspect that the two pins at J2 are the "ROM mode" shorting points. Perhaps the identity of the controller will be visible in this mode.

Alternatively, try the Rx/Tx test points and see what you get via terminal.

[pbzcbf...@gmail.com]

The mystery is solved:

https://post.smzdm.com/p/aekwr8o4/

It's a Maxio controller:

https://post.smzdm.com/p/aekwr8o4/pic_3/#bigImg

[pbzcbf...@gmail.com]

Possibly  MAS0902.

http://www.maxiotek.com/

[t...@desertdatarecovery.com]

Couldn’t that just be a stock image with Maxio photoshopped?

Both Maxio and Lexar might be buying these drives and rebranding them?

Just a thought.



Tim Homer - Lead Engineer

Desert Data Recovery

t...@desertdatarecovery.com

www.desertdatarecovery.com



--

You received this message because you are subscribed to the Google Groups "DataRecoveryCertification" group.
To unsubscribe from this group and stop receiving emails from it, send an email to datarecoverycertif...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msgid/datarecoverycertification/f2b93ee8-9b80-4081-a96b-c3c5ddccaed1n%40googlegroups.com.

[pbzcbf...@gmail.com]

https://club.dns-shop.ru/review/t-101-ssd-nakopiteli/35871-obzor-na-ssd-nakopitel-smartbuy-nitro-480-gb-sbssd-480gq-mx902/

MAS0902A-B2C

[pbzcbf...@gmail.com]

Maxiotek were spun off from JMicron. They make their own flash controllers.

Perhaps you could try a JMicron loader?



[Alandata Recovery]

ok shorted points and came ready...

says generic sata device

fw: 0

256 sectors.

On Thu, Dec 17, 2020 at 2:48 PM pbzcbf...@gmail.com <pbzcbf...@gmail.com> wrote:

Maxiotek were spun off from JMicron. They make their own flash controllers.

Perhaps you could try a JMicron loader?



--

You received this message because you are subscribed to the Google Groups "DataRecoveryCertification" group.
To unsubscribe from this group and stop receiving emails from it, send an email to datarecoverycertif...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msgid/datarecoverycertification/6ff175d2-036c-4fd5-8817-3f074a00d87fn%40googlegroups.com.

[Alandata Recovery]

ok so connected a terminal

not in safe mode gets this

ÿDISK_SIZE(773c256000), MAX_SEC(3b9e12b0)
Faa Format(9,12,0,0,2,2,1,2)
max_dies=20
H:20 M:8 L:4 A:1
DDR2 Mode
PLL CLK:0x  1baa97
TMC:100020f,16,8080308,1008,f0f00,8,0,2222
[Shallow]
NP NP NP NP NP NP NP NP NP NP NP NP NP NP NP NP
PLL CLK:0x  1a2097
TMC:20f,10014,
Desc(e008080308,1008,f0674980,e0079c00,8,0,80004444
78)
BU(e007bdTIMING:27,1,1,0,82,1a2097
clr rmp0 tbl
btlmt init:,e007f4ae,9,5,200,1
0)
DB(e0000140,e004e140)
FB(e004e140,e004f148)
TBMT(e007f640,e00af640)
CMT(e00af640,e00cf640)
RCT(e00d7640,e00e7e40)
GCRCT(e00e7e40,e00f8640)
LowPG(e00f9800,e00fa100)
BadMap(e00fd000,e00ff6f0)
F_LAA_BK(e00fa500,e00fa540)
M_LAA_BK(e00fa540,e00fa580)
SRAM_End(e00fa580)
SRAM CODE(0xe004f180, 0xe0074980, 0xe006f030)
SWAP CODE(0xe006f030, 0xe007794c)
TBL:17,16,1,2
OP:69 WB3(680,68)
BlkCnt:Real(456,504)LOG(425,469)
FixUH(10)FixHSID(26)UH(160)UN(319)

RDC_THR=65536
B_READING=2cf
B_DEGREE=1e
EQ=7
User=Congming_Hao
Path=h
Bin=DBFHCAPC
MakeData=19:26:10,Apr 19 2019
CHIP:A2 CID:31 FID:1
OPAL:0 AES:0 SM4:0 ATA_SECU:0
[C_BK]S
clr remap info
RMP: 1e8, 1f6,0,2,0,1
RMP:   4,   8,1,0,0,1
RMP: 1bf,  bf,1,1,0,0
RMP: 1ea,   8,2,0,0,1
RMP: 1ef, 1f3,2,0,0,1
RMP:   4,   8,2,1,0,1
RMP:   4, 1f5,3,2,0,1
[C_BK]E

[QBT]S
tbl-cnt(c),End(5)
Q-item1:18,5f2c6
Q-item2:60,3
H_P:0x17f,0xc
H_P:0xbf,0xa
H_P:0x11f,0xc
H_P:0xef,0xa
H_P:0x107,0xc
H_P:0xfb,0xc
H_P:0xf5,0xa
H_P:0xf8,0xa
H_P:0xf9,0xc
Page Empty:0xf9
Qbt Invalid Mark
Qbt Query:NG
H:0x0,0x2,0xf9
no vld QBT
rd fail
[QBT]E: 35 ms


[PBT]S
BufLeft:4d
BufReq:4c
BufReq:4b

#BB
8   bf  1de 1df 1ee 1f0 1f1 1f2
1f3 1f4 1f5 1f6 1f7
#BadCnt:13

BufReq:2b
BufReq:2a
BufRls:2b
TblBid1:
(0,ffff),(1,ffff),(2,19),(3,5),(4,18),(5,d),(6,ffff),(7,ffff),

[T]SN_SORT~Read,1,0.254,254546
[T]SN_SORT~Sort,482,0.013,28

B_SysInfo:1
BinSrch:f
[(17f,1),(bf,1),(5f,1),(2f,c),(47,c),(53,1),(4d,c),(50,1),(4e,c),(4f,d),(0,0),(0,0),]
HDieSrch:4f
(92a666,c) (92a666,c) (92a666,c) (92a666,c) (92a666,c) (92a666,c) (92a666,c) (92a666,c)
(92a666,c) (92a666,c) (92a666,c) (0,1) (0,1) (0,1) (0,1) (0,1)


#H_SYS:f,4f,b
sys_l2p[0]:7827d0
sys_l2p[1]:7827c0
sys_l2p[2]:780028
sys_l2p[3]:780038
sys_l2p[4]:780048
sys_l2p[5]:780058
sys_l2p[6]:780068
sys_l2p[7]:780078
sys_l2p[8]:780088
sys_l2p[9]:780098
sys_l2p[a]:7800a8
sys_l2p[b]:7800b8
sys_l2p[c]:7800c8
sys_l2p[d]:7800d8
sys_l2p[e]:7800e8
sys_l2p[f]:7800f8
sys_l2p[10]:780108
[T]SN_SORT~SysinfoBuild,1,0.142,142559
BinSrch:11
[(17f,1),(bf,c),(11f,1),(ef,c),(107,c),(113,1),(10d,1),(10a,1),(108,c),(109,c),(0,0),(0,0),]
HC-W:0,888480,107c80
HC-W:1,888488,107c88
HC-W:2,888490,107c90
HC-W:3,888498,107c98
HC-W:4,8884a0,107d00
HC-W:5,8884a8,107d08
HC-W:6,8884b0,107d10
HC-W:7,8884b8,107d18
HC-W:8,8884c0,107d80
HC-W:9,8884c8,107d88
HC-W:a,8884d0,107d90
HC-W:b,8884d8,107d98
HC-W:c,8884e0,107e00
HC-W:d,8884e8,107e08
HC-W:e,8884f0,107e10
HC-W:f,8884f8,107e18
HDieSrch:109
(92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c)
(92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c) (92a722,c)


#H_PG:109,SN:92a722,SORT_T:0,RFSH:0(888480,8884ff)(888480,8884ff)
#H_F:11,10a,0,0
BinSrch:104
[(47f,1),(23f,1),(11f,1),(8f,1),(47,1),(23,1),(11,c),(1a,c),(1e,1),(1c,1),(1b,c),(0,0),]
HDieSrch:1a
(92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c)
(92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c)


HDieSrch:1b
(92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c)
(92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c) (92a758,c)


#H_PG:1d,SN:92a758,SORT_T:1,RFSH:1(8200d00,8200dff)(8200d00,8200eff)
#H_M:104,1e,0,0
BinSrch:d
[(17f,1),(bf,1),(5f,c),(8f,1),(77,1),(6b,1),(65,1),(62,1),(60,c),(61,1),(0,0),(0,0),]
HDieSrch:60
(92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c)
(92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (92a7ad,c) (0,0)


#H_PG:60,SN:92a7ad,SORT_T:3,RFSH:0(683000,68307f)(683000,68307f)
#H_T:d,61
[T]SN_SORT~HeadSrch,1,0.251,251719
[T]SN_SORT~Total,1,0.660,660393
SN:D(92a758)T(92a7ad)SYS(92a666)GBL(92a7ae)
BufRls:4b
BufReq:4a
BufReq:49
BufReq:48
BufReq:8

B_TBMT_VC:S
got save tbmt faa:680080(d,1),6
blk:5
blk:19
blk:18
blk:d
[T]TMBT_VC_Build~0,1,0.612,612681
ept faa:683080,(d,61,0)
[T]TMBT_VC_Build~1,1,0.072,72166
BufReq:6
bmp_addr[0]:e002b140
bmp_addr[1]:e002c140
err-faa:382d6a,409b4a75,8080
err-tbmt:409b4a75
err-faa:382d6b,6356341c,8080
dbmt:409b4a75

=====================

safe mode says this

ÿBoot into Loader
Ldr_OK>-->[sata_ndt_crst]
<--[sata_ndt_crst]

[pbzcbf...@gmail.com]

FWIW (maybe nothing), there is an SSD tool at the HDD Oracle which purports to be able to dump the firmware of JMicron based SSDs. It can also report the ID of the NAND flash. I don't know if the tool is safe to use, but Google thinks that HDD Oracle is unsafe, so it deletes any post with a link in it.

[pbzcbf...@gmail.com]

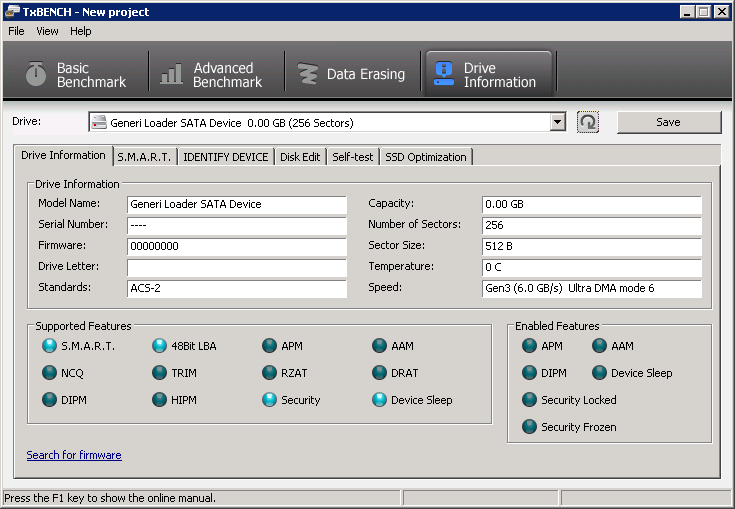

http://vlo.name:3000/hw/ssd/rommode/mas0902_rom.png
