GeoJson and D3.js multipolygon
Michael G
I have this geometric shape file, so no map of a city.
Shapefile of geometric objects.
Shapefile of a few houses and things around them.
I store it in a GIS database and export it as a GeoJson. Now, I want to visualize the geojson data. I created the GeoJson data first with QGIS and exported it as Coordinate Reference System WGS 84 EPSG:4326. This is an example data of Shapefile one:
{
"type":"FeatureCollection",
"crs":{
"type":"name",
"properties":{
"name":"urn:ogc:def:crs:OGC:1.3:CRS84"
}
},
"features":[
{
"type":"Feature",
"properties":{
"Membership":0.000000,
"Membership_1":0.000000,
"Membership_2":0.000000,
"Membership_3":0.000000,
"Membership_4":0.000000,
"Membership_5":0.000000,
"Membership_6":0.000000,
"Membership_7":0.000000,
"Membership_8":0.000000,
"Membership_9":0.997638,
"Asymmetry":0.622090,
"Elliptic_F":0.368607,
"Density":1.720265,
"Radius_of_":2.122269,
"Rectangula":0.701797,
"Radius_of__1":0.341230,
"Main_direc":63.913780,
"Mean_red":251.683422,
"Mean_green":253.246326,
"Mean_blue":251.654027,
"Shape_inde":1.663047,
"Compactnes":2.373016,
"Roundness":1.781040,
"Border_ind":1.603306
},
"geometry":{
"type":"MultiPolygon",
"coordinates":[
[
[
[
0.0,
293.0
],
[
116.0,
293.0
],
[
116.0,
288.0
],
[
117.0,
288.0
],
[
117.0,
287.0
],
GeoJson Shapefile two the geometry is at the end:
{
"type":"FeatureCollection",
"crs":{
"type":"name",
"properties":{
"name":"urn:ogc:def:crs:OGC:1.3:CRS84"
}
},
"features":[
{
"type":"Feature",
"properties":{
"Ratio_red":0.337287,
"Ratio_gree":0.324566,
"Ratio_blue":0.338147,
"Asymmetry":0.233023,
"Elliptic_F":0.835821,
"Density":2.111246,
"Radius_of_":1.191572,
"Max_diff":0.040743,
"Rectangula":0.958607,
"Ratio_DSM_":1.001866,
"Diff_DSM_w":0.604676,
"LengthWidt":1.266667,
"Radius_of__1":0.894812,
"Main_direc":0.507535,
"Standard_d":4.209384,
"Standard_d_1":13.755727,
"Standard_d_2":12.358206,
"Standard_d_3":16.194083,
"Standard_d_4":21.437695,
"Standard_d_5":0.486436,
"Mean_slope":195.593284,
"Mean_slope_1":34.988806,
"Mean_red":143.451493,
"Mean_green":138.041045,
"Mean_blue":143.817164,
"Mean_DSM":324.615672,
"Shape_inde":1.038440,
"Mean_Diff_":0.604676,
"Compactnes":1.063433,
"Brightness":141.769900,
"Roundness":0.296759,
"Area_m2":1.715200,
"Border_ind":1.000000
},
"geometry":{
"type":"MultiPolygon",
"coordinates":[
[
[
[
-1.796831198293312,
46.775409744271464
],
[
-1.796815938387422,
46.775411620389058
],
The geometry is at the end of the file. I already tried things from this post but this works only for polygons and not multipolygons:
Venue/Indoor Map using D3.js and Geojson
I already tried de normal examples with the USA maps but they didn't worked with my GeoJSON data. As far as I understand this works only for citys there are projections available.
How can I visualize this GeoJson data with D3.js?
Best regardsMichael G
I tried to visualize both with the following code:
<!DOCTYPE html>
<meta charset="utf-8">
<body>
<script src="http://d3js.org/d3.v3.min.js"></script>
<script>
//Width and height
var w = 800;
var h = 800;
var colors = d3.scale.category20();
var projection = d3.geo.mercator()
.translate([w/2, h/2]);
var path = d3.geo.path()
.projection(projection);
//Define path generator
var path = d3.geo.path();
//Create SVG element
var svg = d3.select("body").append("svg").attr({width: w, height: h});
//Load in GeoJSON data
d3.json("imageOne.json", function(json) {
//Bind data and create one path per GeoJSON feature
svg.selectAll("path")
.data(json.features)
.enter()
.append("path")
.attr("d", path)
.style("fill", function(d,i){return colors(i)});
});
</script>

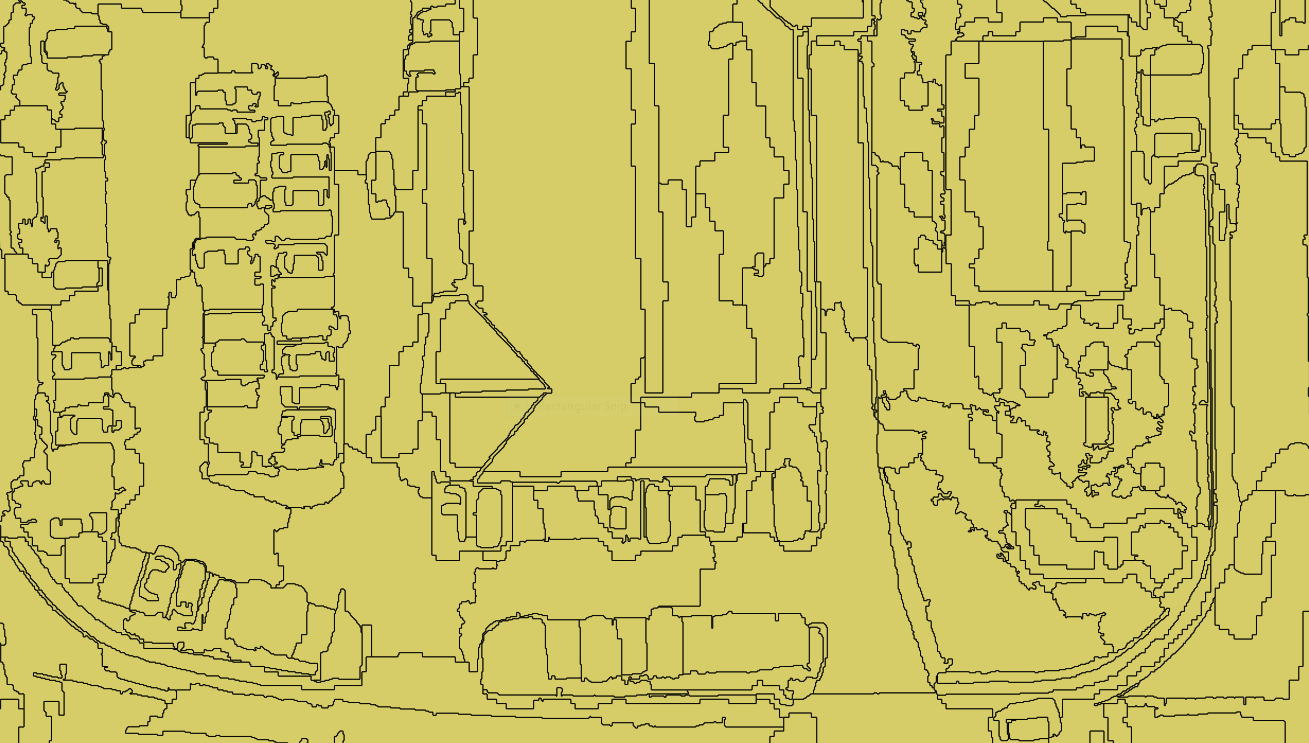

After running the script I get for the first data the following result:
Trying the script for the second image I get a white page.
I uploaded the two shape files https://onedrive.live.com/redir?resid=eff5523c2e7f9ce1!17553&authkey=!AMUTYiNEmDkPYe8&ithint=folder%2Cjson
