Need help for Cubex duo & KISSlicer setting.

[Lie Fecund]

Hi Guys, im Lie Fecund and im new at 3d printing world.
I have cubex duo and cubex with 1.07 firmware. it's almost 1 month for me and this 3d printing.
To be honest, it's a bit dissapointing because the software and the printer dont give good result or something that i want, out of my expectation.

But now, I found something useful and very helpful which is Kisslicer. but unfortunately I dont know how the right setting for kisslicer.
i dont know about coding or something related, because I’m basically from 3D modeller design.


I would like to ask some question to all senior 3d printing here if there is any suggestion for

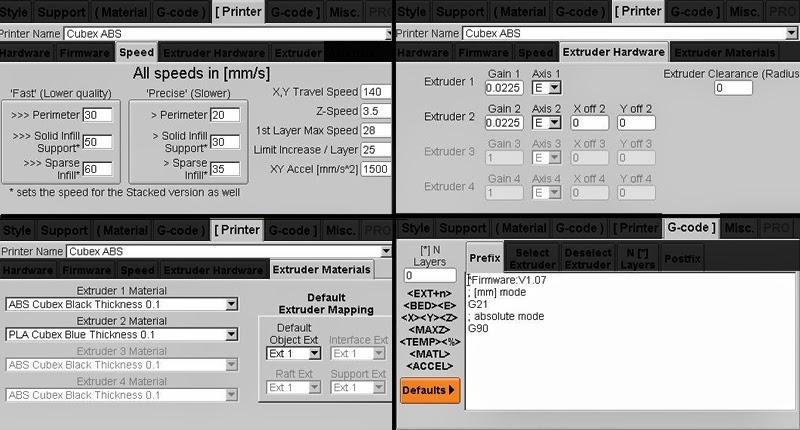

- Please have a look at my image and see the setting. do u have any suggestion?
- I have from thinginverse which is a gear machine that should be able to spin. I ve tried to print it but the print result can't spin because every single side is stick to each other .
- Why can’t I use 2 filament at kisslicer? or is that only for pro?
- I saw this code from this group, i dont remember exactly, but i put this code to "G-code tab at kisslicer (Material G-Code token <MATL>" I dont know where i should put this code..

; End of print
G1 X80 Y50 Z155 F900 (so, normally, direct after the print the extruder goes to this place)
M18 A B(Turn off A and B Steppers)
G1 Z155 F900
G162 X Y F2000
M18 X Y Z(Turn off steppers after a build)
M72 P1  ( Play Ta-Da song )
G4 P600000 (keep warm for 10 minutes after a print)
M109 S0 T0
M104 S0 T0
M104 S0 T1
M70 P5 (We <3 Making Things!)
M72 P1  ( Play Ta-Da song )
M73 P100 (end  build progress )
M137 (build end notification)

I would be really grateful to all of you. thanks for helping me and if you have any suggestion for me to make the printing better, please let me know.

[Giovanni]

- Please have a look at my image and see the setting. do u have any suggestion?

Subscribe to this group :

https://groups.google.com/forum/?hl=fr#!forum/kisslicer-refugee-camp

Look the first post of this thread "Cubeitmod V4.5"

Install Cubeitmod with the ini files for Kisslicer and you'll have the right settings to print with 0.1 layer thickness, for other thickness you have to make adjustments, but you can start from these values that works good with 3Dsystems filaments.

- I have from thinginverse which is a gear machine that should be able to spin. I ve tried to print it but the print result can't spin because every single side is stick to each other .

Try to play with "InsetSurface"

- Why can’t I use 2 filament at kisslicer? or is that only for pro?

Yes is for Pro.

- I saw this code from this group, i dont remember exactly, but i put this code to "G-code tab at kisslicer (Material G-Code token <MATL>" I dont know where i should put this code..

Don't need this, just use Cubeitmod with the ini files and you'll see that your print quality will be better.

[Lie Fecund]

Hi thanks Giovanni for ur kindly reply, I really apreciate it.

I've tried the Cubeitmod V4.5 and new KISSlicer, and the result is really good !!

I'll try to print the bearing again, I hope it can spin now and I'll post here later :D

here are the attachment for my setting and the last printing, a puzzle from http://www.thingiverse.com/thing:181115/#files

>> Actually I'm interested in buying the pro version. But If i buy the kisslicer and next month there's a new update, will I need to buy it again or not?
>> Is it possible to print some objects with the support, only with one material ? what raft/support should I choose ? because sometimes it's hard to remove it.
>> If you look at my kisslicer setting, do you have any suggestion ?


Thanks a lot, sorry for asking you many times.

Best Regards,
Lie Fecund.

[dian...@gmail.com]

On Tuesday, July 22, 2014 12:14:50 PM UTC-6, Lie Fecund wrote:
> Hi thanks Giovanni for ur kindly reply, I really apreciate it.
> I've tried the Cubeitmod V4.5 and new KISSlicer, and the result is really good !!
>
>
>
> I'll try to print the bearing again, I hope it can spin now and I'll post here later :D
> here are the attachment for my setting and the last printing, a puzzle from http://www.thingiverse.com/thing:181115/#files
>
>
>
>
> >>
> Actually I'm interested in buying the pro version. But If i buy the
> kisslicer and next month there's a new update, will I need to buy it
> again or not?
>
> >> Is it possible to print some objects with the support, only
> with one material ? what raft/support should I choose ? because
> sometimes it's hard to remove it.
> >> If you look at my kisslicer setting, do you have any suggestion ?
>
>
> Thanks a lot, sorry for asking you many times.
>
> Best Regards,
>
> Lie Fecund.
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>

[dian...@gmail.com]

On Tuesday, July 22, 2014 12:14:50 PM UTC-6, Lie Fecund wrote:

> Hi thanks Giovanni for ur kindly reply, I really apreciate it.
> I've tried the Cubeitmod V4.5 and new KISSlicer, and the result is really good !!
>
>
>
> I'll try to print the bearing again, I hope it can spin now and I'll post here later :D
> here are the attachment for my setting and the last printing, a puzzle from http://www.thingiverse.com/thing:181115/#files
>
>
>
>
> >>
> Actually I'm interested in buying the pro version. But If i buy the
> kisslicer and next month there's a new update, will I need to buy it
> again or not?
>
> >> Is it possible to print some objects with the support, only
> with one material ? what raft/support should I choose ? because
> sometimes it's hard to remove it.
> >> If you look at my kisslicer setting, do you have any suggestion ?
>
>
> Thanks a lot, sorry for asking you many times.
>
> Best Regards,
>
> Lie Fecund.
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>

will these settings work also for printing PLA. If I just replace ABS to PLA?Thank you

[Giovanni]

Hi Diane,

install Cubeitmod V4.8

use the ini files that are into the same thread, with these files you have good settings for PLA and ABS, look into the material tab.
