Laser triangulation problem

[gwjmc...@gmail.com]

I've got my scanner together. I've worked through the Cowtech Ciclop 3D Scanning Guide until page 23. Everything works until then. However when I run the Laser Triangulation calibration I get a message that says 'Laser triangulation has failed....' It seems to me that the lasers should have turned on during this calibration. Is that correct?

I ran the scanner autocheck and the lasers did not come on for that either. I'm thinking they should have. However when I go to the control workbench I can turn on both lasers just fine.

Can someone give me a little guidance so that I can make my way through the laser triangulation step of the process.

I appreciate people taking the time to give me a hand up. Enjoy your day.

[Jason Smith]

If you just press scan, without running any calibrations, do the lasers come on? They should flash sequentially. They also should come on during triangulation and  autocheck.

--
You received this message because you are subscribed to the Google Groups "CowTech Ciclop 3D Scanner" group.
To unsubscribe from this group and stop receiving emails from it, send an email to cowtech-ciclop-3d-scanner+unsub...@googlegroups.com.
To post to this group, send email to cowtech-ciclop-3d-scanner@googlegroups.com.
To view this discussion on the web visit https://groups.google.com/d/msgid/cowtech-ciclop-3d-scanner/530f7c7b-2895-4393-8eaa-58ffd556d8f4%40googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

--

----------------------------------------------

Founder, CowTech Engineering

www.cowtechengineering.com

(406) 930-0266

[gr...@mismedan.org]

Hi Jason,

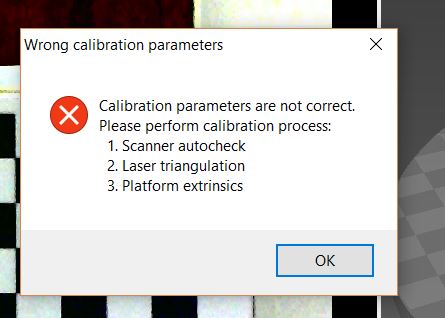

Thanks for the reply. When I press scan without running any calibrations I get the following error message: Calibration parameters are not correct. Please perform calibration process: 1) Scanner autocheck 2) Laser triangulation 3) Platform extrinsics. I attached a screen capture of the error message. While that error message is on the screen the lasers do not come on.
