oric broken tv-out and rgb output
Paul Woodward
parents house. Although I have a tape connector and power supply, the
original tv lead was missing.
I have tried connecting to the composite in connector of my TV, but with
no luck. I suspect the TV-out on the oric is be defective.
If so, does anyone know if/how the TV out could be repaired?
Alternatively, there is the RGB output. I understand (oric)RBG to SCART
(TV) is possible, but making the lead is not easy. My soldering skills
are poor, and I don't have resistors etc lying around the place. Is it
any easier to make a RGB to VGA monitor cable? An idiots guide to making
either of these cables would be appreciated.
I assume there were terminals around 20 years ago which would easily work
with the oric RGB - do we know which ones, and are these available anywhere?
Paul.
Paul Woodward
Well, it had crossed my mind. I was hoping to get it working, partly for old
times sake, and partly at least I could pass it on knowing it was in
working order.
I was also wanting to play Snowball Adventure, but I've since got hold of
euphoric from the oric.org ftp site, and have just spent an hour playing
the game - brings back memories! (I'm still stuck btw.)
I'd love to play with it, but I don't really have the time or money to
spend on it at present. So I might be interested in selling it if it will
go to a good home...
Paul.
P.S. do you know if the TV out should work on the composite in on a modern
TV? I assume it should work OK, but I don't really know...
On Tue, 04 Feb 2003 16:08:09 +0000, Keith Burke wrote:
> Path:
> newsfep3-gui.server.ntli.net!newspeer1-gui.server.ntli.net!ntli.net!newsfee
> d.media.kyoto-u.ac.jp!ctu-gate!news.nctu.edu.tw!feeder.seed.net.tw!attdv1!i
> p.att.net!newsgate.xilinx.com!cliff.xsj.xilinx.com!not-for-mail
> From: Keith Burke <kbu...@xilinx.com> Newsgroups: comp.sys.oric Subject:
> Re: oric broken tv-out and rgb output Date: Tue, 04 Feb 2003 16:08:09
> +0000 Organization: Xilinx Ireland Lines: 69
> Message-ID: <3E3FE569...@xilinx.com> References:
> <pan.2003.02.04....@ntlworld.remove.com> NNTP-Posting-Host:
> ire356.xilinx.com
> X-Mailer: Mozilla 4.72 [en]C-CCK-MCD (WinNT; U) X-Accept-Language: en
> Xref: newspeer1-gui.server.ntli.net comp.sys.oric:9694 X-Received-Date:
> Tue, 04 Feb 2003 16:17:35 GMT
> (newsfep3-gui.server.ntli.net)
> MIME-Version: 1.0
> Content-Type: multipart/mixed;
> boundary=------------11ABD39BF745176E23783DEC
> begin:vcard
> n:Burke;Keith
> tel;cell:0863102489
> tel;home:+353 86 3102489
> tel;work:+353 1 4032486
> x-mozilla-html:FALSE
> adr:;;;;;;
> version:2.1
> email;internet:kbu...@xilinx.com
> fn:Keith Burke
> end:vcard
Jean-Yves Lamoureux
> P.S. do you know if the TV out should work on the composite in on a modern
> TV? I assume it should work OK, but I don't really know...
>
Just a thing, are you talking about a REAL composite input on your TV ?
Because Oric doesn't has composite output, the output I think you are
thinking about is UHF output, so it is plugged on the antenna input of
the TV.
--
Jean-Yves Lamoureux
Workless software developper
jylam at lnxscene dot org
STIG RUNE JOHNSEN
Here is a simple RGB to SCART cable setup for free :-D
RGB = Oric manual : to
SCART:
1 red to
15
2 green to
11
3 blue to
7
4 sync to
20
5 gnd to
13,9,5,17 (together)
Hope you can make some sense out of this.
I have made several cables like this, and all you need is 1 SCART cable and
1 DIN plug.
The picture is crystal clear and steady as a rock!
No need for resistors or transistors or extra power suplies.
Have fun now ;-D
Stig R
"Paul Woodward" <paul.wo...@ntlworld.remove.com> skrev i melding
news:pan.2003.02.04....@ntlworld.remove.com...
STIG RUNE JOHNSEN
Here we go again.................
RGB = Oric manual to SCART
1 RED to 15
2 GREEN to 11
3 BLUE to 7
4 SYNC to 20
5 GND to 13, 9, 5, 17 (together)
Have fun now
Stig R--
"STIG RUNE JOHNSEN" <srun...@online.no> skrev i melding
news:oJT%9.19042$CG6.3...@news4.e.nsc.no...
Steve Marshall
"STIG RUNE JOHNSEN" <srun...@online.no> wrote
> RGB = Oric manual to SCART
>
> 1 RED to 15
> 2 GREEN to 11
> 3 BLUE to 7
> 4 SYNC to 20
> 5 GND to 13, 9, 5, 17 (together)
>
I had a diagram like this on my website and I was emailed by more than one
person who said this wouldn't work and could damage some televisions. The
best available circuit is the one provided on DBug's site - or so I was told
!!!
http://www.defence-force.org/computing/oric/hardware/video/index.htm
Steve M
Steve Marshall
"Paul Woodward" <paul.wo...@ntlworld.remove.com> wrote
> I recently discovered my original (still boxed) oric-1 in the loft of my
> parents house. Although I have a tape connector and power supply, the
> original tv lead was missing.
You can easily make one with a piece of coaxial cable and a TV aerial plug
at one and a phono plug at the other.
>
> I have tried connecting to the composite in connector of my TV, but with
> no luck. I suspect the TV-out on the oric is be defective.
It may well be tuned in wrongly. I've found even if Orics are tuned in right
you still might not get a picture if the settings underneath are not
adjusted properly. It is probable that after this time you need to set it
all up again.
> If so, does anyone know if/how the TV out could be repaired?
If it's just the modulator I'd simply swap it. It just takes a bit of
soldering.
>
> Is it
> any easier to make a RGB to VGA monitor cable?
No !
> An idiots guide to making
> either of these cables would be appreciated.
Check the link I posted -
http://www.defence-force.org/computing/oric/hardware/video/index.htm
>
> I assume there were terminals around 20 years ago which would easily work
> with the oric RGB - do we know which ones, and are these available
anywhere?
Any RGB monitor should work OK if you know trh epin connections - Microvitic
Cub etc. I use an Tatung Einstein Monitor and a Amstrad CPC one too.
Steve M
Paul Woodward
Thanks for the input. The link you point me to is the one I had
previously found, and it scares me. I don't really fully understand the
diagram, but it looks like a fairly complex job to me.
Does anyone (DBug?) have an idiots guide to making such a cable, e.g. bill
of materials, required tools, idiot proof diagram or pictures??
Anyhow, it appears my plugging the oric into the TV composite-in was dumb
anyway, so I will make a suitable coax cable, and see how that works.
Paul.
On Wed, 05 Feb 2003 00:16:05 +0000, Steve Marshall wrote:
> Path:
> newsfep2-win.server.ntli.net!news1-win.server.ntlworld.com!newspeer1-gui.se
> rver.ntli.net!ntli.net!newsfeed.icl.net!newsfeed.fjserv.net!proxad.net!peer
> 1.news.newnet.co.uk!landlord!stones.POSTED!not-for-mail
> Reply-To: "Steve Marshall" <s...@atmos.plus.com>
> From: "Steve Marshall" <s...@atmos-nomorejunk.plus.com>
> Newsgroups: comp.sys.oric
> References: <pan.2003.02.04....@ntlworld.remove.com>
> <oJT%9.19042$CG6.3...@news4.e.nsc.no>
> <l2U%9.19052$CG6.3...@news4.e.nsc.no>
> Subject: Re: oric broken tv-out and rgb output
> Lines: 22
> X-Priority: 3
> X-MSMail-Priority: Normal
> X-Newsreader: Microsoft Outlook Express 5.00.2919.6600
> X-MimeOLE: Produced By Microsoft MimeOLE V5.00.2919.6600
> Message-ID: <JHY%9.16048$pS2.662902@stones>
> Date: Wed, 5 Feb 2003 00:16:05 -0000
> NNTP-Posting-Host: 212.159.32.213
> X-Complaints-To: ab...@plus.net.uk
> X-Trace: stones 1044404073 212.159.32.213 (Wed, 05 Feb 2003 00:14:33 GMT)
> NNTP-Posting-Date: Wed, 05 Feb 2003 00:14:33 GMT
> Organization: Customer of PlusNet
> Xref: newspeer1-gui.server.ntli.net comp.sys.oric:9704
> X-Received-Date: Wed, 05 Feb 2003 00:15:13 GMT
> (newsfep2-win.server.ntli.net)
> MIME-Version: 1.0
> Content-Type: text/plain
Paul Woodward
work! :)
I will make up a proper cable and plug it into the TV correctly. Thanks
for your help,
Paul.
On Tue, 04 Feb 2003 19:14:15 +0100, Jean-Yves Lamoureux wrote:
> Path:
> newsfep1-win.server.ntli.net!news1-win.server.ntlworld.com!newspeer1-gui.se
> rver.ntli.net!ntli.net!peernews.cix.co.uk!newsfeed.hostname.nl!proxad.net!b
> lob.linuxfr.org!not-for-mail
> From: Jean-Yves Lamoureux <jylam...@lnxscene.org>
> Newsgroups: comp.sys.oric
> Subject: Re: oric broken tv-out and rgb output
> Date: Tue, 04 Feb 2003 19:14:15 +0100
> Organization: LinuxFr - http://linuxfr.org/
> Lines: 18
> Message-ID: <b1ovtm$j28$1...@blob.linuxfr.org>
> References: <pan.2003.02.04....@ntlworld.remove.com>
> <3E3FE569...@xilinx.com>
> <pan.2003.02.04...@ntlworld.remove.com>
> NNTP-Posting-Host: 81.220.27.221
> X-Trace: blob.linuxfr.org 1044382454 19528 81.220.27.221 (4 Feb 2003
> 18:14:14 GMT)
> User-Agent: Mozilla/5.0 (X11; U; Linux i686; en-US; rv:1.3a) Gecko/20021212
> X-Accept-Language: en-us, en
> In-Reply-To: <pan.2003.02.04...@ntlworld.remove.com>
> Xref: newspeer1-gui.server.ntli.net comp.sys.oric:9698
> X-Received-Date: Tue, 04 Feb 2003 18:16:51 GMT
> (newsfep1-win.server.ntli.net)
> MIME-Version: 1.0
> Content-Type: text/plain; charset=us-ascii; format=flowed
> Content-Transfer-Encoding: 7bit
Fabrice Frances
"Paul Woodward" <paul.wo...@ntlworld.remove.com> a écrit dans le message
de news: pan.2003.02.05....@ntlworld.remove.com...
> Anyhow, it appears my plugging the oric into the TV composite-in was dumb
> anyway, so I will make a suitable coax cable, and see how that works.
Hey, it's not a TV composite output that you have on the Oric, it's an UHF
modulator !
You can connect it to your TV antenna input, and search around canal 36.
But of course the image will be as good as the one of a Sinclair Spectrum,
so I won't recommend it : build a SCART cable and you will have a
cristal-clear image !
Best regards,
Fabrice
Mickael Pointier
> Thanks for the input. The link you point me to is the one I had
> previously found, and it scares me. I don't really fully understand
> the diagram, but it looks like a fairly complex job to me.
It also scares me, and I don't understand it myself :)
> Does anyone (DBug?) have an idiots guide to making such a cable, e.g.
> bill of materials, required tools, idiot proof diagram or pictures??
That page only reference a schematics that was discussed here few years ago,
and I only put it online so everybody can access it.
Dbug
STIG RUNE JOHNSEN
This cable diagram is not the same you had Steve.
I can't guarantee anything, but this is the setup I use myself both on my tv
and on my monitor witch has scart input.
It shure works for me without any problems.
Stig R.
--
"Steve Marshall" <s...@atmos-nomorejunk.plus.com> skrev i melding
news:JHY%9.16048$pS2.662902@stones...
Steve Marshall
"STIG RUNE JOHNSEN" <srun...@online.no> wrote
> This cable diagram is not the same you had Steve.

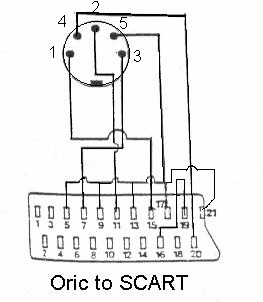

Mmm, it is slightly different. I think it is still online
www.48katmos.freeuk.com/scart.gif
I never really understoof why pins 16 and 19 were connected in this diagram.
The only other difference is the ground is connected to pin 21 - probably a
screen (?)
Steve M
John Gilliver
[]
: The only other difference is the ground is connected to pin 21 - probably a
: screen (?)
[]
"Pin" 21 on a SCART connector is the outer shield - have a look at one and
you'll see what I mean.
--
J. P. Gilliver | Tel: +44 1245 242133
BAE SYSTEMS Advanced Technology Centre, | Fax: +44 1245 242124 or 475244
GREAT BADDOW, Essex, CM2 8HN, | Home: G6JPG [] soft255.demon.co.uk
England, United Kingdom. | Email: john.gilliver [] baesystems.com
| (replace "[]" with "@")
"This post is offered in good faith but shall not be contractually binding on
and does not necessarily reflect the view of the company."
Steve Marshall
"John Gilliver" <g6...@gmrc.gecm.com> wrote
> "Pin" 21 on a SCART connector is the outer shield - have a look at one and
> you'll see what I mean.
Can't ! - all the SCARTs I have are sealed ones on cables. I use moitors for
the Oric so I've never needed to make up cable to SCART on the TV.
I was told that not all UK SCARTs had all the connections and some used to
have just a dummy socket with no connections inside ! They do seem to vary
somewhat.
I think the best option is to find a monitor adn stick the Oric oout of the
way of the telly - then the wife won't see it and complain about all the
computer stuff you are accumulating !
Steve M
John Gilliver
: "John Gilliver" <g6...@gmrc.gecm.com> wrote
: > "Pin" 21 on a SCART connector is the outer shield - have a look at one and
: > you'll see what I mean.
: Can't ! - all the SCARTs I have are sealed ones on cables. I use moitors for
: the Oric so I've never needed to make up cable to SCART on the TV.
[]
I meant, look from the pins side: you'll see two rows of ten pins, staggered,
and the outer metal shell goes where pin 21 would be. This is going from
memory - there may be more than 20 ("21") pins - but there certainly is this
principle.
--
(Amend return address when replying.)
