On Thu, 12 Nov 2020 13:25:51 -0500, Paul wrote:
> The 8TB drive is 3.5".
>
> The power requirements are 12V for motor, 5V for logic.
>
> 3.5" drives are available up to 14TB or so in capacity
> (at least, at your nearest retailer you might find them).
> Some of the larger ones than that, are only intended
> for data centers (host managed versus drive managed).
>
> The 5TB drive is a 2.5". It's the largest 2.5"
> they make. It runs off 5V only. 5V for motor, 5V for logic.
> Generally 2.5" drives try to draw no more than 1 ampere,
> and this occurs during spinup. The current consumed on
> the small 15mm tall 2.5" drives, drops back once they're
> up to speed.
>
> The 2.5" drives come in a variety of heights. 7mm & 9.5mm
> is useful in a laptop. The laptop bay is not big
> enough to support 15mm drives. The 15mm drives were
> made specifically for usage in portable external
> enclosures. It's also why you don't tend to find
> much information on 15mm ones, since they're not
> intended to be sold as "raw" drives at retail.
> As they don't fit in laptops, and nobody wants
> a steady stream of customers bringing raw 15mm
> drives back for a refund because they don't fit.
>
> External drives have a USB connector. Some drives used
> in such devices, the USB connector is part of the drive,
> and the drive cannot be "shucked" and removed for usage
> inside a SATA computer. Other external drives, there is a
> separate controller board which converts SATA protocol
> to USB protocol. Those sorts of drives can be taken
> apart and the disk reused. It's possible the 8TB Seagate
> mentioned, a 3.5", can be removed from the enclosure and
> reused. The warranty is likely void if the drive is
> used in this way (outside of its housing). Running the
> drive serial number on the warranty page, will show the
> drive itself in the bare state, has no warranty. The number
> on the housing could indicate a valid warranty exists for
> the entire item.
>
> Paul
Hi Paul,
Regarding
o 5TB Costco Item #3005555 P/N 2R2AY1-570 (STHP5000600 on sticker)
o 8TB Costco Item #8888881 P/N 1XAAY5-570 (STEL800401 on sticker)
Here are photos I just snapped for you of the two Costco drives:
o <

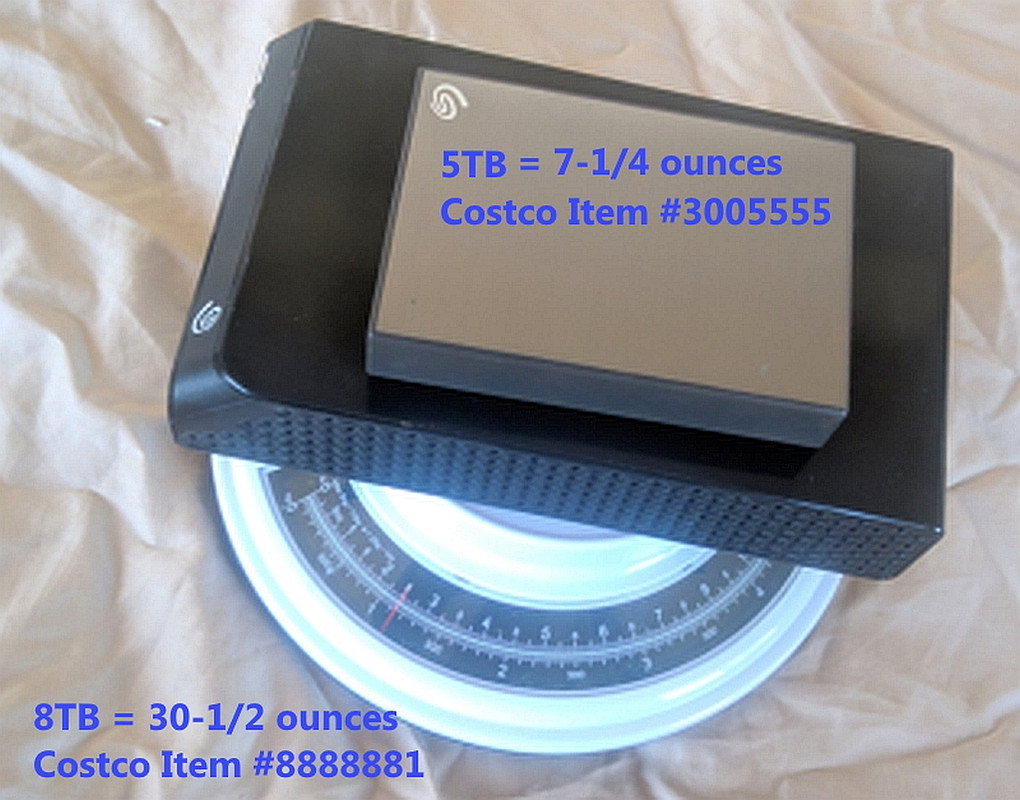

https://i.postimg.cc/MpjQMNM7/hdd01.jpg> size & weight difference
o <

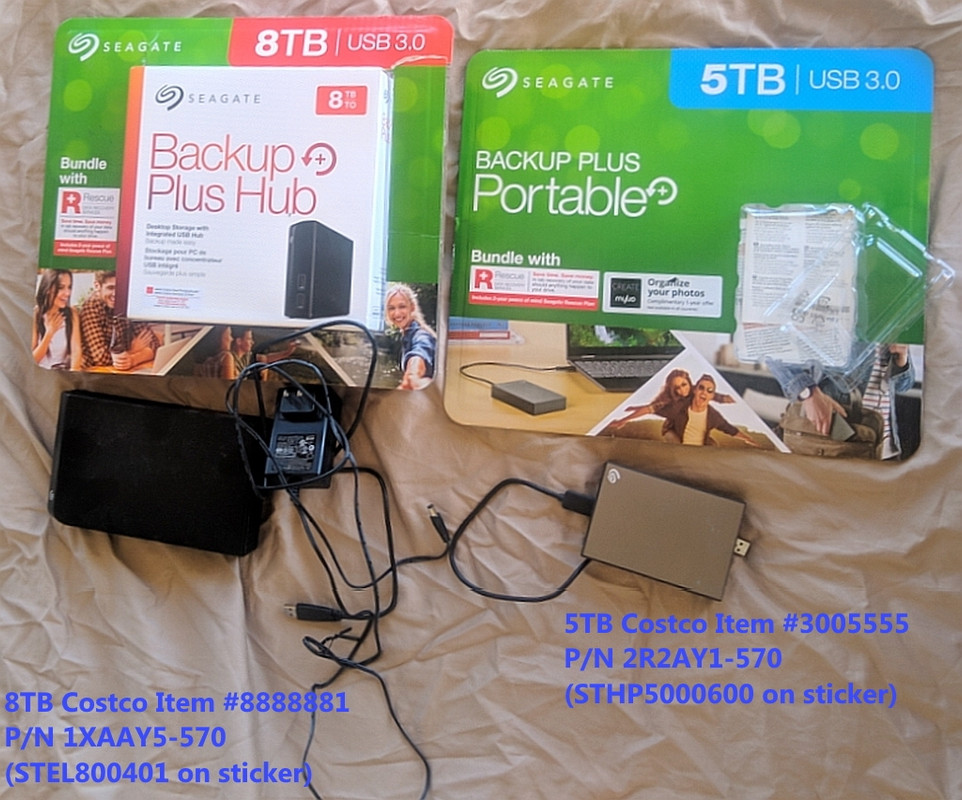

https://i.postimg.cc/5tdFwgLZ/hdd02.jpg> Costco packaging
o <
https://i.postimg.cc/76XGrydk/hdd03.jpg> Model numbers
Thanks for that purposefully helpful information where I must comment that
the sheer physical size & weight difference of these two Seagate devices is
immense.
o The 5TB Seagate drive weighs a puny 7 1/4 ounces all alone
o The 8TB Seagate drive weighs a whopping 30 1/2 ounces all alone
<
https://i.postimg.cc/MpjQMNM7/hdd01.jpg>
Side by side the sheer physical size difference is also huge:
o <
https://i.postimg.cc/5tdFwgLZ/hdd02.jpg>
These are the respective model numbers of the two hard drives:
o 8TB Seagate Backup Plus Hub P/N 1XAAP3-500 [aka Model SRD0PV1] 12VDC, 1A
o 12VDC 3.0A Schenzhen Honor Model ADS-40J-12 12036EPCU Switching Adapter
o 5TB Seagate Backup Plus Portable P/N 2R2APM-505
o <
https://i.postimg.cc/76XGrydk/hdd03.jpg>
What I love about the 5TB is it doesn't require an additional 12VDC power
supply, which means, I would think, perhaps, maybe, it's more likely to
work in a decade or so, but I'm not sure of the correct logic on that.
Which is more likely to work in a decade or two from now?
> The 2.5" drives come in a variety of heights. 7mm & 9.5mm
> is useful in a laptop. The laptop bay is not big
> enough to support 15mm drives.
I do not know how tall the 5TB drive is, inside.
> External drives have a USB connector. Some drives used
> in such devices, the USB connector is part of the drive,
> and the drive cannot be "shucked" and removed for usage
> inside a SATA computer.
The possibility of being "shucked" makes a difference because we want this
drive to work in a decade or two from now.
> Running the
> drive serial number on the warranty page, will show the
> drive itself in the bare state, has no warranty. The number
> on the housing could indicate a valid warranty exists for
> the entire item.
1. I went to the Seagate warranty page
<
https://www.seagate.com/support/warranty-and-replacements/>
2. I enter the 8-character serial number from the Costco sticker.
3. Your Product = Backup Plus Portable <== this is the 5TB
Model Number = STHP5000600
Serial Number = xxxxxxxx
Warranty Valid Until November 29, 2021
Your Product = Backup Plus HUB <== this is the 8TB
Model Number = STEL8000401
Serial Number = xxxxxxxx
Warranty Valid Until October 10, 2022
I'm not so much worried about warranty as I am the basic stone cold logic
of which drive is most likely to be still working a decade or two from now.
--
On Windows newsgroups everyone is always helpful even if we don't like M$.
