How to configure parallel execution in the job engine?

[Tobias Schäfer]

Hi,

I have two service tasks which I would like to execute in parallel (see http://camunda.org/share/#/process/7d501925-631f-4452-9bf5-7275d8926a52). Per default the job engine executes the two service tasks sequentially.

How can the job engine be configured to execute these in parallel? What are the possible downsides?

I found https://app.camunda.com/confluence/display/foxUserGuide/Advanced+Job+Executor, but setting the property maxJobsPerAcquisition had no influence.

Regards,
Tobias

[Roman Smirnov]

Hi Tobias,

you are able to set the asynchronous attribute "async" to "true" on each service task, so that the continuation will happen asynchronous. However, the jobs for each branch are still processed exclusively by default. For more details read the section Concurrent Job Execution in our User-Guide.

Furthermore, you are able to set the "exclusive" attribute to false on each service task, so that the jobs will be performed non-exclusive, see Exclusive Jobs in our User-Guide. In that case you have to know what you are doing there, because that can lead to other problems, that are described in the section Concurrent Job Execution.

I hope that helps you!? What is your use case you want to implement?

Cheers,

Roman

[tosc...@googlemail.com]

Hi Roman,

thanks for posting the links. Setting camunda:exclusive="false" leads to the behaviour described in the documentation.

The use case is theoretical.

Regards
Tobias

[galen...@gmail.com]

Hi,

I'm having some issues getting serviceTasks to run in parallel. Whenever I set

<code>
camunda:async="true"
</code>

the corresponding serviceTask does not run. When I set one to "true" and one to "false", then the "false" on runs.

For example, in the following process, only ServiceTask_1 runs:

<code>
<bpmn2:process id="camunda_parallel_sleeps" isExecutable="true">
<bpmn2:startEvent id="StartEvent_1">
<bpmn2:outgoing>SequenceFlow_3</bpmn2:outgoing>
</bpmn2:startEvent>
<bpmn2:sequenceFlow id="SequenceFlow_3" name="" sourceRef="StartEvent_1" targetRef="ParallelGateway_1"/>
<bpmn2:parallelGateway id="ParallelGateway_1">
<bpmn2:incoming>SequenceFlow_3</bpmn2:incoming>
<bpmn2:outgoing>SequenceFlow_4</bpmn2:outgoing>
<bpmn2:outgoing>SequenceFlow_5</bpmn2:outgoing>
</bpmn2:parallelGateway>
<bpmn2:sequenceFlow id="SequenceFlow_4" name="" sourceRef="ParallelGateway_1" targetRef="ServiceTask_1"/>
<bpmn2:serviceTask id="ServiceTask_2" camunda:class="foo.SleepTask" camunda:exclusive="false" camunda:async="true">
<bpmn2:incoming>SequenceFlow_5</bpmn2:incoming>
<bpmn2:outgoing>SequenceFlow_7</bpmn2:outgoing>
</bpmn2:serviceTask>
<bpmn2:sequenceFlow id="SequenceFlow_5" name="" sourceRef="ParallelGateway_1" targetRef="ServiceTask_2"/>
<bpmn2:endEvent id="EndEvent_1">
<bpmn2:incoming>SequenceFlow_1</bpmn2:incoming>
</bpmn2:endEvent>
<bpmn2:parallelGateway id="ParallelGateway_2">
<bpmn2:incoming>SequenceFlow_6</bpmn2:incoming>
<bpmn2:incoming>SequenceFlow_7</bpmn2:incoming>
<bpmn2:outgoing>SequenceFlow_1</bpmn2:outgoing>
</bpmn2:parallelGateway>
<bpmn2:sequenceFlow id="SequenceFlow_7" name="" sourceRef="ServiceTask_2" targetRef="ParallelGateway_2"/>
<bpmn2:serviceTask id="ServiceTask_1" camunda:class="foo.SleepTask" camunda:exclusive="false" camunda:async="false">
<bpmn2:incoming>SequenceFlow_4</bpmn2:incoming>
<bpmn2:outgoing>SequenceFlow_6</bpmn2:outgoing>
</bpmn2:serviceTask>
<bpmn2:sequenceFlow id="SequenceFlow_6" name="" sourceRef="ServiceTask_1" targetRef="ParallelGateway_2"/>
<bpmn2:sequenceFlow id="SequenceFlow_1" name="" sourceRef="ParallelGateway_2" targetRef="EndEvent_1"/>
</bpmn2:process>
</code>

Is what I'm trying to do technically possible?

Thanks,
Galen

[webcyberrob]

Hi,

perhaps you are mixing two distinct concepts? My understanding is the async flag controls whether the execution occurs in the client thread or a 'background' thread provided by the job executor. Parallel execution using a splitting and gate on the other hand is a slightly different concept and default behaviour is to serialize execution (the user guide gives a great explanation). Hence if you follow the advice and links provided in the earlier posts, all may be a little more clear...

R

[galen...@gmail.com]

Hi webcyberrob,

Thanks for the info. So are you saying that if I use a parallel gate, then there is only ever going to be one token of execution? In other words a whole branch of the gate has to reach the converging gate before spawning another token to follow another path?

I guess I'm still unclear why adding async=true would cause the serviceTask to not be executed. I guess what you are saying is that somehow the splitting/gate only sends the execution along on the "main" thread, and if tasks are on the background thread, this "main" thread will never reach them.

++++++++++++++++++++++++++++++++++++++++++

Among all of the engines I've tried, implementing true parallel execution is probably one of the trickiest concepts. Each engine has a somewhat "hacky" way of allowing for it.

In jBPM it's accomplished by using asynchronous WorkItemHandlers, and a callback of "completeWorkItem".
https://community.jboss.org/thread/165545?_sscc=t

In Activiti it's accomplished via async camel seda queues http://bpmn20inaction.blogspot.in/2012/12/implement-parallel-execution-in-activiti.html

In Camunda, I'm still trying to figure out the best way to do this. So far, the best way I've come up with is to have the Java serviceTask spawn another thread, then return control to the process engine immediately. Immediately following the serviceTask in the flow is a message receive event, which picks up a message sent out at the end of the thread's execution. This approach works, but requires extra nodes in the diagram, and extra implementation to manage the threads and the message sending at the end.

+++++++++++++++++++++++++++++++++++++++++++++

As a side note, I've seen some arguments (mostly by engine implementors) that true parallelization is really overkill, or not needed. But it really depends in practice. If the tasks you are trying to run are mostly single-threaded apps that are CPU intensive, and you have a lot of cores on your machine, then you might as well be taking care of things in parallel. If the tasks are just proxies to executions that run on physically different hosts, then you also might as well be running in parallel. I understand that running on physically different hosts usually is a result of a web service call or a REST call, but in general it would be nice to just have the abstraction around parallel tasks in a single node, without having to think about it more. I think when most users see the parallel gateway, they initially think that it will be true concurrent execution.

By the way, I'm totally fine with the default behavior being serial execution -- I think that's probably the smartest default. I just think that the developer should have the flexibility to choose multi-threaded if he/she desires.

From the posts above it sounds like multi-threading can be achieved if not using gates. I would love to see my example (using a parallel gate) massaged into a working multi-threaded example if at all possible.

Thanks,
Galen

[Daniel Meyer]

Hi Galen,

>  In other words a whole branch of the gate has to reach the converging gate before spawning another token to follow another path?

No. If an execution reaches a Parallel Gateway (fork), child executions will be created for each outgoing sequence flow. The process engine then advances each of there executions in the current thread as far as possible. "As far as possible" meaning that it will advance those executions until they either reach a Transaction Boundary (like a User Task or an Asynchronous Continuation point) or a Synchronization Point (like a joining gateway).

Lets consider the example of a parallel gateway with three outgoing sequence flows connected to three service tasks. In this case the process engine will create the tree concurrent executions for the service tasks and then commit. It will also create three Jobs for the Job Executor. Now, the process engine is able to execute these three Jobs in a truly concurrent fashion (in three truly concurrent Threads). BUT: if you have a subsequent Joining Gateway, we need to synchronize the three executions again. And this is where your optimistic exception happens. I have explained some more details here: http://docs.camunda.org/latest/guides/user-guide/#process-engine-the-job-executor-exclusive-jobs

The optimistic locking exception does NOT happen due to the fact that you execute the service tasks concurrently. It only happens due to the joining of the executions in a parallel gateway.

So the point is: the camunda engine IS able to execute stuff truly concurrently BUT it will use optimisitic locking for synchronizing conflicting concurrent transactions.

There are three classes of conflicting concurrent transactions:

1. Racing incoming signals: multiple threads signal the same execution concurrently. (Example: Two users click on the "complete Task" button at the same time for the same task instance.)
2. Synchronization (Joining Parallel Gateway, concurrent multi instance, Or Gateway ...)
3. Cancel Activity Instance (We Execute a Service Task while an interrupting Message event is received, A scope-destroying Error event is thrown from a concurrent branch.)

Those three classes of conflicting concurrent transactions will always require some sort of conflict resolution. We use optimistic locking. The alternative would be pessimistic locking.

You write:

> In Camunda, I'm still trying to figure out the best way to do this.  So far, the best way I've come up with is to have the Java serviceTask spawn another thread, then return control to the process engine immediately.  Immediately following the serviceTask in the flow is a message receive event, which picks up a message sent out at the end of the thread's execution.  This approach works, but requires extra nodes in the diagram, and extra implementation to manage the threads and the message sending at the end.

Dangerous! What if the threads you spawn manually die at some point? Or if there is an exception before the callback is sent to the process engine? Spawning such treads does not sound like a robust scalable solution to me. Better buffer this using a JMS Queue or something of the like.

You write

> As a side note, I've seen some arguments (mostly by engine implementors) that true parallelization is really overkill, or not needed.  But it really depends in practice.  If the tasks you are trying to run are mostly single-threaded apps that are CPU intensive, and you have a lot of cores on your machine, then you might as well be taking care of things in parallel.

Yes, but typically you run more than one process instance at a time. So what are you interested in?

Inter-process instnace concurrency or intra-process instance concurrency? I think most of the time you want to maximize the number of process instances completed per time frame. Intra-process instance concurrency (concurrency within a process instance) must not always be the approach leading to that goal.

You write

> In Activiti it's accomplished via async camel seda queues http://bpmn20inaction.blogspot.in/2012/12/implement-parallel-execution-in-activiti.html

Why not using the camunda camel component: https://github.com/camunda/camunda-bpm-camel ?

Cheers,

Daniel Meyer

[galen...@gmail.com]

Hi Daniel,

Thanks for the information about parallel gateways and execution behavior. I actually am not getting an optimistic exception. What I am seeing (in my example above) is the following:

CASE 1 (async=false, exclusive=true): both serviceTasks run in a serial fashion (as expected)

CASE 2 (async=false, exclusive=false): both serviceTasks run in a serial fashion (same behavior as CASE 1. Shouldn't this execute on concurrent Threads?)

CASE 3 (async=true, exclusive=true): neither serviceTask ever gets executed, process hang forever (no exceptions)

CASE 4 (async=true, exclusive=false): neither serviceTask ever gets executed, process hang forever (no exceptions) (same behavior as CASE 3)

So this is what I was concerned about in my above post -- the fact that serviceTasks aren't executing. I understand that there will be synchronization issues at the joining gateway if I go with non-defaults (i.e. async=true), but I'm simply not even able to get the tasks executed in the first place, so it never even gets to the joining gateway. Forgive me if I'm still not understanding this.

++++++++++++++++++++++++++++++++++++++

I totally agree with you about the dangerous aspects of spawning a thread. I'm just doing this for now as a proof-of-concept. In the future, something like a JMS queue would be used. For now I'm just evaluating various engine implementations.

++++++++++++++++++++++++++++++++++++++

In terms of one process vs. multiple processes, I'm looking to run a single process that manages multiple concurrent tasks by using a parallel gateway. It just makes for a simpler model that way. I understand that you could have several different process definitions instantiated via messages/signals, and that they can run in parallel fine, but then you would have to have sort of a "master process" "worker processes" model where there are joining message receives in the master. I would be interested in seeing some inter-process concurrency examples though. Maybe I'm thinking about this whole paradigm the wrong way :) In general, we are shooting to simplify the overall model, and hopefully keep things encapsulated in one process definition.

++++++++++++++++++++++++++++++++++++++

With regards to the camel component, thanks for bringing that up -- I will check that out further. I'm assuming the implementation of what I'm trying to do would be very similar to the activiti post I mentioned above? In general though, I think that people who model BPMN, and want to execute something concurrently don't want to think in terms of two nodes (a call, and a receive like the activiti example). It would be cool if the engine did the camel stuff under the covers in a single node implementation. That is to say it would take are of the seda async route, the execution and the callback all in one node. It would sort of act like a User Task in that sense, where it would be a transaction boundary, and other stuff could execute.

Thanks,
Galen

[thorben....@student.hpi.uni-potsdam.de]

Hi Galen,

regarding cases 1 and 2: with async=false both service tasks are executed sequentially in the current thread. That's why the exclusive attribute has no effect. It's only meaningful with async=true.

With async=true, the current thread reaches both service tasks and instead of executing them creates a job, i.e. persists it to the database. It then returns, the tasks are not immediately executed. This is now the responsibility of the job executor. You write that the tasks are not executed at all. This may be that the job executor is not activated (see http://docs.camunda.org/latest/guides/user-guide/#process-engine-the-job-executor-job-executor-activation) or some other issue in your setup. To help you with this, you could post some infos about your setup, for example if you are using the pre-built distribution from camunda.org or running inside a unit test or using the embedded engine. Furthermore you might also post your process engine configuration. In addition, you could take a look at the ACT_RU_JOB_ table in the database to ensure that the jobs are actually created.

Best regards,
Thorben

[webcyberrob]

Hi Daniel and others..

I tried a small example with a parallel split to two service tasks A & B followed by a parallel join to a service task C. I marked all the tasks as async and task A&B I marked as exclusive=false. I created a basic delegate class which prints a line, sleeps for 1 second, then prints another line. Hence the sleep is to try to ensure that I really do get concurrent execution.

At runtime, I get intertwined output from task A&B as expected. However at the join when the last task (either A or B depending on thread scheduling) completes, I get the optimistic locking exception. When the job executor tries again later, the task which caused the exception is re-run, the join completes and the process continues to the end.

Hence whilst there was initially parallel execution, the end result is additional execution of one of the concurrent tasks. Hence the end result it may as well have been serial execution. Is this the expected behaviour?

R

[Daniel Meyer]

Hi Rob,



yes, in your scenario that is the expected behavior. The cause is that we need to synchronize two transactions at the joining parallel gateway. If those transactions are executed concurrently, only one is able to complete successfully since we use the optimistic locking scheme. It will then roll back to the last persistent state which is in your case the Service Task A or B. If you had a sequence of multiple service tasks on each branch with each of them having an asynchronous continuation configured, then only the last service task would be rolled back and the previous ones could be executed in a truly concurrent way.



Maybe we should add the possibility to make the joining parallel gateway asynchronous? That way the optimistic locking exception would not roll back the service task but would only retry execution of the join?



Cheers,

Daniel Meyer

[webcyberrob]

Thanks Daniel

All is clear now. As the user guide says, you really need to know what you are doing! I guess the lesson here in the interim is to effectively add an async, 'null' service task at the end of each parallel branch to act as the 'sacrificial' locking exception generator which does no harm when rerun.

As for async gates, hmm its getting complicated... I have a few more use cases to try...

R

[webcyberrob]

Hi Daniel,

Here's another variation I tried, this one ultimately throws a null pointer exception when the job executor retries after the optimistic lock exception

http://camunda.org/share/#/process/097a06be-fd74-4623-a50c-5444fdbb76f2

java.lang.NullPointerException

        at org.camunda.bpm.engine.impl.pvm.runtime.AtomicOperationTransitionCrea

teScope.execute(AtomicOperationTransitionCreateScope.java:36)

        at org.camunda.bpm.engine.impl.interceptor.CommandContext.performOperati

on(CommandContext.java:121)

        at org.camunda.bpm.engine.impl.jobexecutor.AsyncContinuationJobHandler.e

xecute(AsyncContinuationJobHandler.java:50)

        at org.camunda.bpm.engine.impl.persistence.entity.JobEntity.execute(JobE

ntity.java:84)

        at org.camunda.bpm.engine.impl.persistence.entity.MessageEntity.execute(

MessageEntity.java:29)

        at org.camunda.bpm.engine.impl.cmd.ExecuteJobsCmd.execute(ExecuteJobsCmd

.java:70)

        at org.camunda.bpm.engine.impl.interceptor.CommandExecutorImpl.execute(C

ommandExecutorImpl.java:24)

        at org.camunda.bpm.engine.impl.interceptor.CommandContextInterceptor.exe

cute(CommandContextInterceptor.java:42)

        at org.camunda.bpm.engine.impl.interceptor.LogInterceptor.execute(LogInt

erceptor.java:32)

        at org.camunda.bpm.engine.impl.jobexecutor.ExecuteJobsRunnable.executeJo

b(ExecuteJobsRunnable.java:79)

        at org.camunda.bpm.engine.impl.jobexecutor.ExecuteJobsRunnable.run(Execu

teJobsRunnable.java:67)

        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.

java:1110)

        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor

.java:603)

        at java.lang.Thread.run(Thread.java:722)

On Thursday, November 14, 2013 11:32:26 PM UTC+11, Daniel Meyer wrote:

[Daniel Meyer]

Hi Rob,



yes, thank you for that. This is currently a known issue:

https://app.camunda.com/jira/browse/CAM-428



Cheers,

Daniel Meyer

[galen...@gmail.com]

Hi Daniel,

> Maybe we should add the possibility to make the joining parallel gateway asynchronous? That way the optimistic locking exception would not roll back the service task but would only retry execution of the join?

Yes, this would be awesome if you could implement this behavior. This seems like the correct thing to do in this case. But I'm not sure if the best terms to use on the gateway is "asynchronous". It seems like a "lock-wait-retry" flag (similar to the way MySQL retries for a period of time when encountering a lock, before eventually giving). It would be great is there would be a configurable "timeout", and "retryFrequency" values. Of course most users would just use the defaults.

Thanks,
Galen

[galen...@gmail.com]

Hi Thorben,

Thanks for the debugging tips. When I run CASE 3, I do see two rows being created in the ACT_RU_JOB table. Here is what they look like (sorry for the formatting):

mysql> select * from ACT_RU_JOB;
+------+------+---------+----------------+-------------+------------+---------------+----------------------+----------+---------------------+----------------+----------+---------+--------------------+-------------------------+----------------+
| ID_ | REV_ | TYPE_ | LOCK_EXP_TIME_ | LOCK_OWNER_ | EXCLUSIVE_ | EXECUTION_ID_ | PROCESS_INSTANCE_ID_ | RETRIES_ | EXCEPTION_STACK_ID_ | EXCEPTION_MSG_ | DUEDATE_ | REPEAT_ | HANDLER_TYPE_ | HANDLER_CFG_ | DEPLOYMENT_ID_ |
+------+------+---------+----------------+-------------+------------+---------------+----------------------+----------+---------------------+----------------+----------+---------+--------------------+-------------------------+----------------+
| 4313 | 1 | message | NULL | NULL | 1 | 4311 | 4308 | 3 | NULL | NULL | NULL | NULL | async-continuation | transition-create-scope | 4301 |
| 4314 | 1 | message | NULL | NULL | 1 | 4312 | 4308 | 3 | NULL | NULL | NULL | NULL | async-continuation | transition-create-scope | 4301 |

I then checked my configuration, and for some reason (maybe I copied and pasted from some example), I had:

<property name="jobExecutorActivate" value="false" />

So I changed this to "true", and restarted and now I'm seeing the expected behavior:

CASE 1 (async=false, exclusive=true): both serviceTasks run in a serial fashion (as expected)

CASE 2 (async=false, exclusive=false): both serviceTasks run in a serial fashion (as expected)
CASE 3 (async=true, exclusive=true): both serviceTasks run in a serial fashion (as expected)
CASE 4 (async=true, exclusive=false): both serviceTasks run concurrently, then I get an OptimisticLockingException

What is interesting though, is that in CASE 4, it leaves one row in the ACT_RU_JOB table. Is this to be expected. Per other posts, I would have expected this one to be reprocessed.

Thanks,
Galen

[webcyberrob]

With regard to a row being left in case 4 - are you waiting long enough for the process to complete? For example in the default configuration it will be about 5 minutes before the job is retried by the background job executor (I think 5 minutes if the defualt expiry time for the optimistic locking leases)

R

[Bernd Rücker (camunda)]

+1 - I like the async joining gateway (and all necessary infrastructure
should be already in place!).

-----Urspr�ngliche Nachricht-----

Von: camunda-...@googlegroups.com
[mailto:camunda-...@googlegroups.com] Im Auftrag von

galen...@gmail.com
Gesendet: Freitag, 15. November 2013 01:34
An: camunda-...@googlegroups.com
Cc: tosc...@googlemail.com; galen...@gmail.com
Betreff: Re: [camunda-bpm-users] Re: How to configure parallel execution
in the job engine?

--
You received this message because you are subscribed to the Google Groups
"camunda BPM users" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to camunda-bpm-us...@googlegroups.com.
To post to this group, send email to camunda-...@googlegroups.com.
To view this discussion on the web visit
https://groups.google.com/d/msgid/camunda-bpm-users/02e290db-5dde-4d00-996
d-bbf927619c3d%40googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.

[Daniel Meyer]

Hi all,

I opened 2 Jiras for this:

https://app.camunda.com/jira/browse/CAM-1531

https://app.camunda.com/jira/browse/CAM-1532

@Galen: actually you can already configure the retry intervals of Failed Jobs: http://stage.docs.camunda.org/guides/user-guide/#failed-jobs

Cheers,

Daniel Meyer

[galen...@gmail.com]

Thanks,

After checking back with the database table, the job did eventually get processed (probably after the 5 minute wait). Thanks for the info about retry intervals.

Galen

[galen...@gmail.com]

Hi Daniel,

> > In Activiti it's accomplished via async camel seda queues http://bpmn20inaction.blogspot.in/2012/12/implement-parallel-execution-in-activiti.html
> Why not using the camunda camel component: https://github.com/camunda/camunda-bpm-camel ?

I tried implementing an example using camunda-bpm-camel by:

1) Using a parallel gateway
2) 2 serviceTasks that call different camel routes
3) In the middle of the routes, some work is performed (i.e. Processor())
4) At the end of the routes, they send a message indicating the work is done.
5) 2 message receive events receive message from routes
6) Sleep tasks (java delegate) get executed after message receive
7) Finally, a joining parallel gateway

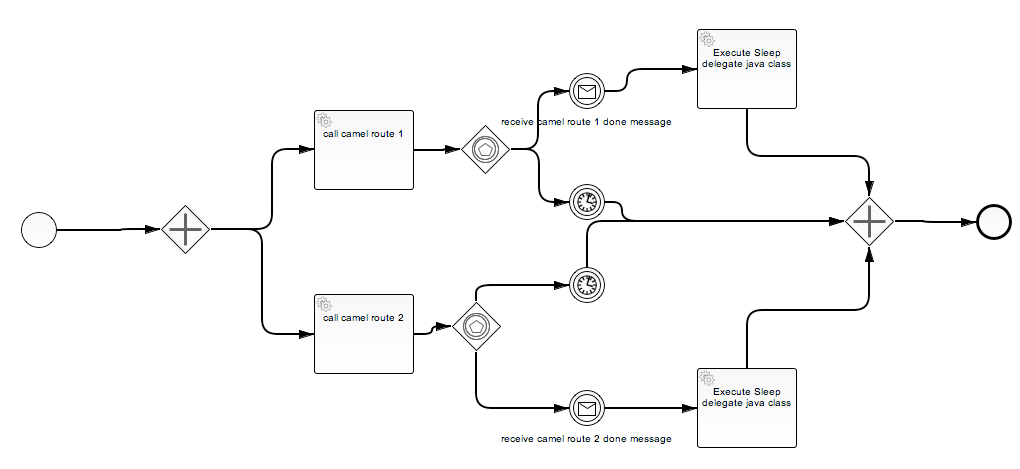

See diagram here:
http://i801.photobucket.com/albums/yy298/ghollins/ScreenShot2013-11-19at120340PM_zps8dbf68dd.png

The problem I'm seeing is that I get an OptimisticLocking exception on the joining parallel gateway. I noticed that the receive tasks kick off the sleep tasks on separate threads, and this may be the root of my problem:

12:09:13,839 [Camel (camelContext) thread #5 - seda://runStuff1] INFO task.builtin.SleepTask - sleep for 13000 milliseconds...

12:09:15,057 [Camel (camelContext) thread #6 - seda://runStuff2] INFO task.builtin.SleepTask - sleep for 3000 milliseconds...

Then I get:

12:09:26,851 [Camel (camelContext) thread #5 - seda://runStuff1] ERROR org.apache.camel.processor.DefaultErrorHandler - Failed delivery for (MessageId: ID-ghollins on ExchangeId: ID-ghollins). Exhausted after delivery attempt: 1 caught: org.camunda.bpm.engine.OptimisticLockingException: ExecutionEntity[1017] was updated by another transaction concurrently

Although, it's weird, because they can't be reaching the gateway at the same time, since I've delayed one by 10 seconds (13000 millis vs. 3000 millis).

Any ideas?

Thanks,
Galen

[Bernd Rücker (camunda)]

Hi Galen.

I briefly looked at the process - did you notice that you will never be
able to complete the process because of a deadlock in the joining parallel
gateway at the end? That is an error in the BPMN I guess (you could upload
it to www.camunda.org/share/ then I could point to the problem directly).

Anyway - regarding your problem:

If you do the Thread.sleep in the ServiceTask after the ReceiveEvent you
block that thread for the time and keep the transaction open. If the
second message arrives it is still open and you run in a normal
OptimisticLockException. Pretty logical in my view.

You would have to do the sleep in the Camel route I think - then you get a
"fresh" process instance when sending the message later - avoiding the
problem with the optimistic lock.

Cheers
Bernd

-----Urspr�ngliche Nachricht-----
Von: camunda-...@googlegroups.com
[mailto:camunda-...@googlegroups.com] Im Auftrag von
galen...@gmail.com

Gesendet: Dienstag, 19. November 2013 21:13

An: camunda-...@googlegroups.com
Cc: tosc...@googlemail.com; tosc...@googlemail.com;
galen...@gmail.com; galen...@gmail.com

Betreff: [camunda-bpm-users] Re: How to configure parallel execution in

the job engine?

Hi Daniel,

> > In Activiti it's accomplished via async camel seda
queues�http://bpmn20inaction.blogspot.in/2012/12/implement-parallel-execut
ion-in-activiti.html
> Why not using the camunda camel
component:�https://github.com/camunda/camunda-bpm-camel�?

I tried implementing an example using camunda-bpm-camel by:

1) Using a parallel gateway
2) 2 serviceTasks that call different camel routes
3) In the middle of the routes, some work is performed (i.e. Processor())
4) At the end of the routes, they send a message indicating the work is
done.
5) 2 message receive events receive message from routes
6) Sleep tasks (java delegate) get executed after message receive
7) Finally, a joining parallel gateway

<a
href="http://s801.photobucket.com/user/ghollins/media/ScreenShot2013-11-19
at120340PM_zps8dbf68dd.png.html" target="_blank"><img
src="http://i801.photobucket.com/albums/yy298/ghollins/ScreenShot2013-11-1
9at120340PM_zps8dbf68dd.png" border="0" alt=" photo
ScreenShot2013-11-19at120340PM_zps8dbf68dd.png"/></a>

The problem I'm seeing is that I get an OptimisticLocking exception on the
joining parallel gateway. I noticed that the receive tasks kick off the
sleep tasks on separate threads, and this may be the root of my problem:

12:09:13,839 [Camel (camelContext) thread #5 - seda://runStuff1] INFO
task.builtin.SleepTask - sleep for 13000 milliseconds...

12:09:15,057 [Camel (camelContext) thread #6 - seda://runStuff2] INFO
task.builtin.SleepTask - sleep for 3000 milliseconds...

Then I get:

12:09:26,851 [Camel (camelContext) thread #5 - seda://runStuff1] ERROR
org.apache.camel.processor.DefaultErrorHandler - Failed delivery for
(MessageId: ID-ghollins on ExchangeId: ID-ghollins). Exhausted after
delivery attempt: 1 caught:
org.camunda.bpm.engine.OptimisticLockingException: ExecutionEntity[1017]
was updated by another transaction concurrently

Although, it's weird, because they can't be reaching the gateway at the
same time, since I've delayed one by 10 seconds (13000 millis vs. 3000
millis).

Any ideas?

Thanks,
Galen

--
You received this message because you are subscribed to the Google Groups
"camunda BPM users" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to camunda-bpm-us...@googlegroups.com.
To post to this group, send email to camunda-...@googlegroups.com.
To view this discussion on the web visit

https://groups.google.com/d/msgid/camunda-bpm-users/e51b37e5-43d8-4e8c-b56
d-ccca8bde5e9f%40googlegroups.com.

[galen...@gmail.com]

Hi Bernd,

> I briefly looked at the process - did you notice that you will never be
>
> able to complete the process because of a deadlock in the joining parallel
>
> gateway at the end? That is an error in the BPMN I guess (you could upload
>
> it to www.camunda.org/share/ then I could point to the problem directly).
>

I have shared my BPMN at:
http://www.camunda.org/share/#/process/05f8db4e-8113-49eb-8395-9b2990fa8d25

Here are my camel routes:
from("direct://syncService1")
.onException(SampleException.class) // map exception to BPMN error
.throwException(new BpmnError("camel.error"))
.end()
.process(new Processor() {
@Override
public void process(Exchange exchange) throws Exception {
System.out.println(Thread.currentThread()+"1: FORWARDING TO runStuff1");
}
})
.to("seda:runStuff1?waitForTaskToComplete=Never");

from("seda:runStuff1")
.onException(SampleException.class) // map exception to BPMN error
.throwException(new BpmnError("camel.error"))
.end()
.process(new Processor() {
@Override
public void process(Exchange exchange) throws Exception {
System.out.println(Thread.currentThread()+"1: SLEEPING FOR 2 SECONDS...");
Thread.sleep(2000);
System.out.println(Thread.currentThread()+"1: DONE WITH SLEEP");
}
})
.to("camunda-bpm:message?messageName=camel.done1");


from("direct://syncService2")
.onException(SampleException.class) // map exception to BPMN error
.throwException(new BpmnError("camel.error"))
.end()
.process(new Processor() {
@Override
public void process(Exchange exchange) throws Exception {
System.out.println(Thread.currentThread()+"2: FORWARDING TO runStuff2");
}
})
.to("seda:runStuff2?waitForTaskToComplete=Never");

from("seda:runStuff2")
.onException(SampleException.class) // map exception to BPMN error
.throwException(new BpmnError("camel.error"))
.end()
.process(new Processor() {
@Override
public void process(Exchange exchange) throws Exception {
System.out.println(Thread.currentThread()+"2: SLEEPING FOR 12 SECONDS...");
Thread.sleep(12000);
System.out.println(Thread.currentThread()+"2: DONE WITH SLEEP");
}
})
.to("camunda-bpm:message?messageName=camel.done2");

+++++++++++++++++++++++++++++++++++

When I sleep in both camel routes for the exact same amount of time (i.e. 2 seconds in each route), I get an OptimisticLockingException at the joining gateway:

Thread[pool-1-thread-1,5,main]1: FORWARDING TO runStuff1
Thread[Camel (camelContext) thread #5 - seda://runStuff1,5,main]1: SLEEPING FOR 2 SECONDS...
Thread[pool-1-thread-1,5,main]2: FORWARDING TO runStuff2
Thread[Camel (camelContext) thread #6 - seda://runStuff2,5,main]2: SLEEPING FOR 2 SECONDS...
Thread[Camel (camelContext) thread #5 - seda://runStuff1,5,main]1: DONE WITH SLEEP
Thread[Camel (camelContext) thread #6 - seda://runStuff2,5,main]2: DONE WITH SLEEP
msg 1 received.
msg 2 received.
Nov 20, 2013 10:40:45 AM org.camunda.bpm.engine.impl.interceptor.CommandContext close
SEVERE: Error while closing command context
org.camunda.bpm.engine.OptimisticLockingException: ExecutionEntity[3501] was updated by another transaction concurrently
...
...
<<<MORE STACKTRACE -- TRUNCATED>>>

When I sleep for different amounts of time the messages are received, but the process never finishes (deadlock at the joining gateway?):

Thread[pool-1-thread-1,5,main]1: FORWARDING TO runStuff1
Thread[Camel (camelContext) thread #5 - seda://runStuff1,5,main]1: SLEEPING FOR 2 SECONDS...
Thread[pool-1-thread-1,5,main]2: FORWARDING TO runStuff2
Thread[Camel (camelContext) thread #6 - seda://runStuff2,5,main]2: SLEEPING FOR 12 SECONDS...
Thread[Camel (camelContext) thread #5 - seda://runStuff1,5,main]1: DONE WITH SLEEP
msg 1 received.
Thread[Camel (camelContext) thread #6 - seda://runStuff2,5,main]2: DONE WITH SLEEP
msg 2 received.
<<< PROCESS NEVER FINISHES>>>

+++++++++++++++++++++++++++++++++++++

NOTE: in this BPMN model there are no sleeps in Java, they are all in the camel routes.

I would expect that in the case where I stagger the arrivals at the gateway by sleeping for different amounts of time, the problem is not one of concurrency. So I assume the deadlock is due to the fact that there are two different threads that arrive at the gateway. Each one of them doesn't know about the other, so they think that only 1 out of 2 tokens have reached the gateway.

If you could please elaborate the problem on my shared diagram, that would be awesome. Also, proposing a solution to accomplish what I'm trying to do would be great.

Thanks!
Galen

[Bernd Rücker (camunda)]

Hi Galen.

OK - this makes perfectly sense:

1.) If you have the exact same waiting time both messages arrive at the
same time: OptimisticLock. Same as no waiting time (as it is really
exactly the same time).

2.) If you have different waiting times everything works well - but you
really experience the deadlock - which is a bug in your process model.

I marked that in share.

And I shared an improved version which did solve the deadlock:
http://www.camunda.org/share/#/process/738b0cf7-ee1a-4fbd-bf19-c2d91bd7ccc
b. Let me know if you are interested in a BPMN 2.0 training
(http://www.camunda.com/consulting/bpmn/training/) ;-)

Hope that helps?

Cheers
Bernd
Consultant & Evangelist
www.camunda.org/community/team.html

-----Urspr�ngliche Nachricht-----
Von: camunda-...@googlegroups.com
[mailto:camunda-...@googlegroups.com] Im Auftrag von
galen...@gmail.com

Gesendet: Mittwoch, 20. November 2013 19:49
An: camunda-...@googlegroups.com
Cc: tosc...@googlemail.com
Betreff: Re: [camunda-bpm-users] Re: How to configure parallel execution
in the job engine?

--
You received this message because you are subscribed to the Google Groups
"camunda BPM users" group.
To unsubscribe from this group and stop receiving emails from it, send an
email to camunda-bpm-us...@googlegroups.com.
To post to this group, send email to camunda-...@googlegroups.com.
To view this discussion on the web visit

https://groups.google.com/d/msgid/camunda-bpm-users/f3c07390-0e75-4675-901
f-24fb681e65dd%40googlegroups.com.

[galen...@gmail.com]

>
> 1.) If you have the exact same waiting time both messages arrive at the
>
> same time: OptimisticLock. Same as no waiting time (as it is really
>
> exactly the same time).
>
>
>
> 2.) If you have different waiting times everything works well - but you
>
> really experience the deadlock - which is a bug in your process model.
>
>
>
> I marked that in share.
>
>
>
> And I shared an improved version which did solve the deadlock:
>
> http://www.camunda.org/share/#/process/738b0cf7-ee1a-4fbd-bf19-c2d91bd7ccc
>

Hi Bernd,

Thank you very much, that definitely helps. For some reason the link you posted doesn't display a diagram (I see no diagram on the screen). I've tried it on 2 different browsers, and I get the same result. I think I can imagine what your solution would look like though. You probably add 2 XOR gateway (similar to figure 2.30 in your Real-Life BPMN book) to merge the events. I will try this approach. It all makes sense to me now.

Thanks,
Galen
