Displaying an Image with Brython

Caleb John

unread,

Feb 4, 2013, 7:35:39 PM2/4/13

to bry...@googlegroups.com

I've been playing with context but i havn't been able to actually display an image using canvas. I was hoping for an explanation on how this might be possible.

Matthew Parry

unread,

Feb 4, 2013, 8:17:32 PM2/4/13

to bry...@googlegroups.com

I'm new to Brython, and perhaps this version is not sufficiently Brythonic, but you can find a working example below.

For this example, I re-engineered the tutorial at this other site.

You can find the demo hosted through Dropbox: Demo.

You can also download the source including the distribution version of Brython for testing: Source.

Hope that helps,

Matthew Parry

Francois Dion

unread,

Feb 4, 2013, 8:38:33 PM2/4/13

to bry...@googlegroups.com

Another way is using SVG instead of canvas. It allows animations too
that way. Note that you will need to use xlink_href and that since
from is a reserved keyword, you have to use From with a capital F or
all uppercase FROM.

<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN"
"http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
<html>
<head>
<title>Brython test</title>
<script src="py_tokenizer.js"></script>
<script src="py_utils.js"></script>
<script src="py_tokens.js"></script>
<script src="py_classes.js"></script>
<script src="py_list.js"></script>
<script src="py_string.js"></script>
<script src="py_dom.js"></script>
<script src="py2js.js"></script>
<script src="py_ajax.js"></script>
<script src="py_svg.js"></script>
</head>
<body onLoad="brython()">
<script type="text/python">
doc["display"] <= SVG.image(id="logo",
xlink_href="brython.png", x="0", y="0", height="60px", width="192px")
doc["display"] <=
SVG.animate(attributeName="x",xlink_href="#logo", From="0", to="100",
dur="5s",repeatCount="indefinite" )
</script>

<svg width="10cm" height="4cm" version="1.1" width="300px"
height="100px" xmlns="http://www.w3.org/2000/svg"
xmlns:xlink="http://www.w3.org/1999/xlink" id="display">
</svg>
</body>
</html>

Francois

> --
> You received this message because you are subscribed to the Google Groups
> "brython" group.
> To unsubscribe from this group and stop receiving emails from it, send an
> email to brython+u...@googlegroups.com.
> To post to this group, send email to bry...@googlegroups.com.
> To view this discussion on the web visit
> https://groups.google.com/d/msg/brython/-/G_blTJtdb90J.
> For more options, visit https://groups.google.com/groups/opt_out.
>
>

Caleb John

unread,

Feb 5, 2013, 12:36:11 AM2/5/13

to bry...@googlegroups.com

Thank you for the reply's i tried both methods without luck, the canvas loads but no image is displayed and the same for the svg method. Could this be my setup that is causing these problems?

MR Essop

unread,

Feb 5, 2013, 7:25:27 AM2/5/13

to Brython

May be a silly question, but just checked your source code, and want to confirm: your brython.js script file IS in the root folder, right? Have you tried "piggybacking" off a remote "CDN" source, and/or a different version

Regards, MR Essop

From: Matthew Parry <kurofu...@gmail.com>

Sender: bry...@googlegroups.com

Date: Mon, 4 Feb 2013 17:17:32 -0800 (PST)

To: <bry...@googlegroups.com>

ReplyTo: bry...@googlegroups.com

Subject: Re: Displaying an Image with Brython

--

You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/ioRr5BkGWvkJ.

Francois Dion

unread,

Feb 5, 2013, 7:33:36 AM2/5/13

to bry...@googlegroups.com

What browser are you using? Do you get any errors in the console?

Francois

On Feb 5, 2013, at 12:36 AM, Caleb John <caleb...@gmail.com> wrote:

Thank you for the reply's i tried both methods without luck, the canvas loads but no image is displayed and the same for the svg method. Could this be my setup that is causing these problems?

--

You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/m9FayZyNHqYJ.

Caleb John

unread,

Feb 5, 2013, 6:19:34 PM2/5/13

to bry...@googlegroups.com

I tested on both chrome and firefox and didn't get errors on either. The clock demo works for me but it just seems to be these demos using drawImage

DI DIO Salvatore

unread,

Feb 6, 2013, 1:44:17 AM2/6/13

to bry...@googlegroups.com

Hello Caleb,

Look at this sample

http://jsdo.it/Salvatore/hs65

Regards

Le 6 févr. 2013 à 00:19, Caleb John a écrit :

I tested on both chrome and firefox and didn't get errors on either. The clock demo works for me but it just seems to be these demos using drawImage

--
You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/3aPUc7tYq64J.

Francois Dion

unread,

Feb 7, 2013, 4:12:07 PM2/7/13

to brython

On Feb 5, 6:19 pm, Caleb John <calebjo...@gmail.com> wrote:
> I tested on both chrome and firefox and didn't get errors on either. The
> clock demo works for me but it just seems to be these demos using drawImage

Bump brython to 1 or 2 ( ie. call brython(1) or brython(2) in the
code). Also, can you get a screenshot with the console open? Need to
know the exact version of firefox and whatever output from the
console. There has to be some. These demos work on firefox 14 and
above without problem (the oldest I currently have installed - I'll
set up some VMs with some older versions to test too). Are you sure
you dont have indentation issues, maybe mixed tabs and spaces?

Francois

Caleb John

unread,

Feb 7, 2013, 7:30:07 PM2/7/13

to bry...@googlegroups.com

Thanks for the reply,
It appears that Matthew Parry's example has started working for me but i still can't get mine to work,
I am using firefox v. 18.0.2
This is the link to my test

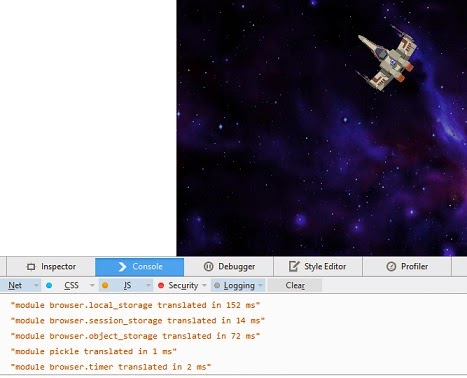

attached is my screenshot of the console

hopefully you can see where i went wrong


Caleb John

unread,

Feb 7, 2013, 9:33:00 PM2/7/13

to bry...@googlegroups.com

So it appears that i had a number of comments in the code and when i removed those it started working fine,
Thank you all for the help and I'm excited for the future of this project.

Jamie Keefer

unread,

Feb 8, 2013, 12:30:33 PM2/8/13

to bry...@googlegroups.com

I'd like to see the source on this. I think there is room to improve the controls; not sure how you are handling Key_up and Key_down event handlers, but I am curious to see if the latency is in the javascript translation or in the python code.

On Thu, Feb 7, 2013 at 9:33 PM, Caleb John <caleb...@gmail.com> wrote:

So it appears that i had a number of comments in the code and when i removed those it started working fine,
Thank you all for the help and I'm excited for the future of this project.

--
You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/eMG2RYQgmuAJ.

Message has been deleted

Caleb John

unread,

Feb 8, 2013, 2:43:06 PM2/8/13

to bry...@googlegroups.com

Here is the link to the source, I just through this together last night, but I hope you can find the issue

pie.py

Jamie Keefer

unread,

Feb 8, 2013, 3:02:31 PM2/8/13

to bry...@googlegroups.com

Ah shucks, I forgot about that...just clicking on the pie.py should work. Thanks. We are getting bunch of snow tonight so I will be hunkered down at the keyboard. I will let you know.

jamie

On Fri, Feb 8, 2013 at 2:33 PM, Caleb John <caleb...@gmail.com> wrote:

That would be great if you could take a look, I'll post the source when I get home but if you want to take a look now just open the page source in the link and the source should link to pie.py

--
You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/GdhBbyvw-ZIJ.

Jamie Keefer

unread,

Feb 8, 2013, 3:45:29 PM2/8/13

to bry...@googlegroups.com

Your suggestion to just click the link in the source worked. I think I see what can be done to make it smoother. Rather than update position with each key press, you have a keypress change the velocity of the paddle which in turn updates the position. I want to see if I can fix it, for fun, but if you know what I mean, don't let me stop you.

you have:

ship_pos[0] += x
ship_pos[1] += y (not going to be changed...yet? :) )

but instead:

ship_pos[0] += ship_vel_x

###  where ship_vel_x is a variable to change based on user input and until either the key_up event sets the velocity to zero to stop or the keypress changes to negative ship_x_vel and makes ship go other way...

On Fri, Feb 8, 2013 at 2:43 PM, Caleb John <caleb...@gmail.com> wrote:

Here is the link to the source, I just through this together last night, but I hope you can find the issue

--
You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/p_rOz0tooxkJ.

Caleb John

unread,

Feb 8, 2013, 4:52:14 PM2/8/13

to bry...@googlegroups.com

Great idea! I think I've got what you mean but if you want to experiment with it by all means go ahead, i would love to see what you come up with

Caleb John

unread,

Feb 8, 2013, 5:01:00 PM2/8/13

to bry...@googlegroups.com

I ended up using a queue to hold directional key presses so that you can press two keys at once without the ship jolting. Let me know what you think and maybe what needs to be changed :)

Jamie Keefer

unread,

Feb 8, 2013, 7:39:28 PM2/8/13

to bry...@googlegroups.com

Just got settled in at home here...taking a look now

On Fri, Feb 8, 2013 at 5:01 PM, Caleb John <caleb...@gmail.com> wrote:

I ended up using a queue to hold directional key presses so that you can press two keys at once without the ship jolting. Let me know what you think and maybe what needs to be changed :)

--
You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/WSFQb0oWlwAJ.

Jamie Keefer

unread,

Feb 8, 2013, 7:46:52 PM2/8/13

to bry...@googlegroups.com

Hah! You got it!! Now just need to check for edges and you are solid :)

Caleb John

unread,

Feb 8, 2013, 9:00:07 PM2/8/13

to bry...@googlegroups.com

Thanks a lot for the help, I wont be working much on it tonight but I'm hoping to put in shields and make the aliens actually able to shoot tomorrow

Jamie Keefer

unread,

Feb 8, 2013, 9:02:14 PM2/8/13

to bry...@googlegroups.com

Thanks for sharing your code, you helped me see how brython works with canvas.

On Fri, Feb 8, 2013 at 9:00 PM, Caleb John <caleb...@gmail.com> wrote:

Thanks a lot for the help, I wont be working much on it tonight but I'm hoping to put in shields and make the aliens actually able to shoot tomorrow

--
You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msg/brython/-/vAUHc42zRkUJ.

dan d.

unread,

Dec 8, 2014, 3:45:59 PM12/8/14

to bry...@googlegroups.com

Thats odd. The example code you gave runs and displays the image with the version of Brython contained in the Zip file.
But when I try to run the same HTML and Python code with a Brython version 3.0 , the example does not work.

I get the following in the console:

"RuntimeError: ReferenceError: doc is not defined
Traceback (most recent call last):"

I'm guessing that Brython has changed since your post? (February 2013).

Could someone post a working example of displaying an image on the canvas?

Thanks in advance
Dan

Pierre Quentel

unread,

Dec 8, 2014, 4:35:40 PM12/8/14

to bry...@googlegroups.com

Le lundi 8 décembre 2014 21:45:59 UTC+1, dan d. a écrit :

Thats odd. The example code you gave runs and displays the image with the version of Brython contained in the Zip file.
But when I try to run the same HTML and Python code with a Brython version 3.0 , the example does not work.

I get the following in the console:

"RuntimeError: ReferenceError: doc is not defined
Traceback (most recent call last):"

I'm guessing that Brython has changed since your post? (February 2013).

Could someone post a working example of displaying an image on the canvas?

If you put this code in site/gallery it should display an image :

<!doctype html>
<html>
<meta charset="utf-8">
<head>

<script type="text/javascript" src="../../src/brython.js"></script>

</head>
<body onLoad="brython(1)">
<script id="ascript" type="text/python">
from browser import window, document
import javascript

img = javascript.JSConstructor(window.Image)()
img.src = 'img/sky.jpg'

canvas = document["myCanvas"]
ctx = canvas.getContext("2d")
ctx.drawImage(img,0,0)
</script>

<canvas id="myCanvas" width="200" height="100">
</canvas>

</body>
</html>

With Javascript, creating an image is done by

img = new Image()

The equivalent in Brython is the line

img = javascript.JSConstructor(window.Image)()

To get a reference to the built-in Javascript object Image, use attribute "Image" of the object window defined in module browser : window.Image

Since this object is a constructor, the Brython object that generates instances is built with javascript.JSConstructor (see the documentation page "Using Javascript objects and libraries")

Joao S. O. Bueno

unread,

Dec 9, 2014, 7:04:06 AM12/9/14

to bry...@googlegroups.com

On 8 December 2014 at 19:35, Pierre Quentel <pierre....@gmail.com> wrote:
> img = new Image()
>
> The equivalent in Brython is the line
>
> img = javascript.JSConstructor(window.Image)()

Oh, please. no!! If it was this way, writting Brython would be harder
than Javascript, and the whole purpose of the thing is to be simpler
and saner.

The Brython equivalent to create an Image is:

from browser import html
img = html.IMG()

Pierre Quentel

unread,

Dec 9, 2014, 7:14:17 AM12/9/14

to bry...@googlegroups.com, gwi...@gmail.com

You are right, but dan wanted a working example, and for the moment this version with html.IMG doesn't work : canvas.drawImage(img, 0, 0) raises an Exception. It's on my todo list

dan d.

unread,

Dec 9, 2014, 9:59:53 AM12/9/14

to bry...@googlegroups.com, gwi...@gmail.com

Yes, thank you Pierre.

Indeed, I am all for short clean syntax, if it works. But if does not, then I would rather have the long syntax that does work :)

Just to give you some context, I am completely new to Brython.

And I would like to port a simple little game I wrote, to Brython. Right now it is written in Python but on top of a web browser framework (HTML5), but which is not open source. It uses Skulpt as the Python translator, and it has additional libraries for handling all the graphics and sound, and user interface. These libraries are not open source.
So the idea is to use Brython instead for this game. If this is possible...

Pierre, can you tell me if it is possible to play sounds (mp3/ogg files) via Brython?

Thanks
Dan

dan d.

unread,

Dec 10, 2014, 5:36:10 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

Hello Pierre,

I am trying to do something rather simple, rotatating the image using the canvas context rotate() method and using a timer.I got the timer working fine looking at the Brython docs.

In the code below if I hard code the value 150 for (img.width/2) or (img.height/2), the code works. The image is positioned correctly and spins on itself.

If I leave (img.width/2) or (img.height/2) this is evaluated to 0, for some reason, although the image is 300x300 pixels...
Line 18 and 28, the img.width and myImage.width do not contain the correct value for the image.
Since we created the img object using a 300x300 image, shouldn't img.width contain the value 300 ? Or is this a Brython / Javascript interaction particularity?
Or maybe I just made some dump mistake.

from browser import window, document, timer
import javascript
import math

img = javascript.JSConstructor(window.Image)()
img.src = 'img/sun_300x300.png'

canvas = document["stage"]

ctx = canvas.getContext("2d")
ctx.drawImage(img,0, 0)

counter = 0
TO_RADIANS = math.pi/180.0

def loop():
    global ctx, counter, img
    ctx.clearRect(0,0,canvas.width, canvas.height)
    drawRotatedImage(img,(img.width/2),(img.height/2),counter)
    #drawRotatedImage(img,150,150,counter)
    counter+=2

def drawRotatedImage(myImage, x, y, angle):
    global ctx
    ctx.save()
    #move to the middle of where we want to draw our image
    ctx.translate(x, y)
    ctx.rotate(angle * TO_RADIANS)
    #ctx.drawImage(myImage, -(myImage.width/2), -(myImage.height/2))
    ctx.drawImage(myImage, -150, -150)
    ctx.restore()

timer.set_interval(loop,1000/1)

Le mardi 9 décembre 2014 13:14:17 UTC+1, Pierre Quentel a écrit :

Joao S. O. Bueno

unread,

Dec 10, 2014, 5:53:55 AM12/10/14

to Pierre Quentel, bry...@googlegroups.com

Hmm.. that is sad. I thought that objects created using the HTML
method where equivalent to ones that could be created with window.*
methods and wrapped.

Are you working on that now? Could you summarize the difference in a
few words? (If it is too long an explanation, just leave it, I will
look on the sources)

Regards,

js
-><-

Kiko

unread,

Dec 10, 2014, 6:11:21 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

I think that during the evaluation of the script the image is not loaded so the script (Brython/js) cannot access the height and width attributes (0,0).

In this case, you should load the image previously or already know the size of the image.

For example, this is working fine:

http://jsfiddle.net/ky622122/

See here:

http://stackoverflow.com/questions/17255883/get-image-width-height-javascript/17255898#17255898

Le mardi 9 décembre 2014 13:14:17 UTC+1, Pierre Quentel a écrit :

Le mardi 9 décembre 2014 13:04:06 UTC+1, João Sebastião de Oliveira Bueno a écrit :
On 8 December 2014 at 19:35, Pierre Quentel <pierre....@gmail.com> wrote:
> img = new Image()
>
> The equivalent in Brython is the line
>
> img = javascript.JSConstructor(window.Image)()

Oh, please. no!! If it was this way, writting Brython would be harder
than Javascript, and the whole purpose of the thing is to be simpler
and saner.

The Brython equivalent to create an Image is:

from browser import html
img = html.IMG()

You are right, but dan wanted a working example, and for the moment this version with html.IMG doesn't work : canvas.drawImage(img, 0, 0) raises an Exception. It's on my todo list

--

You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msgid/brython/b9333f36-bbfa-49dc-8273-8bc53ee0f790%40googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

dan d.

unread,

Dec 10, 2014, 6:57:37 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

Hello Kiko.

Thank you for your response. But I am not sure this answers my question.
The code does work, as you said (this is also what I said in my original post) , but only when the values are hard coded and not gotten from the image object.

From what I see in the JSFiddle link you gave, that copies my code, you added a couple variables: IW and IH and you "hard coded" the image width and height to those variables. So yeah, in that cas it also works. But what I want is to be able to load an image and then use the img.width and img.height properties of the JS image object.

I am going to try to add a delay before trying to get the values. To allow the browser to load the image before the code is executed. We'll see if this helps.
But this is surprising since, I am loading the image (JS object) in the Brython code and not in the HTML. So the object should exist when I try to access the width and height properties. I'll try the delay anyways... its a quirky hack, but if it works...

Dan

Joao S. O. Bueno

unread,

Dec 10, 2014, 7:07:50 AM12/10/14

to dan d., bry...@googlegroups.com

On 10 December 2014 at 09:57, dan d. <dandelso...@gmail.com> wrote:
> Hello Kiko.
>
> Thank you for your response. But I am not sure this answers my question.
> The code does work, as you said (this is also what I said in my original
> post) , but only when the values are hard coded and not gotten from the
> image object.
>
> From what I see in the JSFiddle link you gave, that copies my code, you
> added a couple variables: IW and IH and you "hard coded" the image width
> and height to those variables. So yeah, in that cas it also works. But what
> I want is to be able to load an image and then use the img.width and
> img.height properties of the JS image object.
>
> I am going to try to add a delay before trying to get the values. To allow
> the browser to load the image before the code is executed. We'll see if this
> helps.
> But this is surprising since, I am loading the image (JS object) in the
> Brython code and not in the HTML. So the object should exist when I try to
> access the width and height properties. I'll try the delay anyways... its a
> quirky hack, but if it works...

Hi Dan - just remember that instead of a "synchronous" delay you'd
better return control to the browser, and then continue your work on
the image object - you can do that with timer.set_timeout. It is one
of those javascript quirks we can't get rid of at the moment. Maybe
in a future when we get "yield from" and "tulip" working. :-)

Kiko

unread,

Dec 10, 2014, 7:24:28 AM12/10/14

to bry...@googlegroups.com, João Sebastião de Oliveira Bueno

2014-12-10 12:57 GMT+01:00 dan d. <dandelso...@gmail.com>:

Hello Kiko.

Thank you for your response. But I am not sure this answers my question.
The code does work, as you said (this is also what I said in my original post) , but only when the values are hard coded and not gotten from the image object.

From what I see in the JSFiddle link you gave, that copies my code, you added a couple variables: IW and IH and you "hard coded" the image width and height to those variables. So yeah, in that cas it also works. But what I want is to be able to load an image and then use the img.width and img.height properties of the JS image object.

I am going to try to add a delay before trying to get the values. To allow the browser to load the image before the code is executed. We'll see if this helps.
But this is surprising since, I am loading the image (JS object) in the Brython code and not in the HTML. So the object should exist when I try to access the width and height properties. I'll try the delay anyways... its a quirky hack, but if it works...

Ok, the following seems it is working as you expect:

http://jsfiddle.net/b39huugw/1/

To view this discussion on the web visit https://groups.google.com/d/msgid/brython/b4da4bae-ac11-407d-bfaf-cb6dbd91e841%40googlegroups.com.

Kiko

unread,

Dec 10, 2014, 7:36:06 AM12/10/14

to bry...@googlegroups.com, João Sebastião de Oliveira Bueno

2014-12-10 13:24 GMT+01:00 Kiko <kikoco...@gmail.com>:

2014-12-10 12:57 GMT+01:00 dan d. <dandelso...@gmail.com>:
Hello Kiko.

Thank you for your response. But I am not sure this answers my question.
The code does work, as you said (this is also what I said in my original post) , but only when the values are hard coded and not gotten from the image object.

From what I see in the JSFiddle link you gave, that copies my code, you added a couple variables: IW and IH and you "hard coded" the image width and height to those variables. So yeah, in that cas it also works. But what I want is to be able to load an image and then use the img.width and img.height properties of the JS image object.

I am going to try to add a delay before trying to get the values. To allow the browser to load the image before the code is executed. We'll see if this helps.
But this is surprising since, I am loading the image (JS object) in the Brython code and not in the HTML. So the object should exist when I try to access the width and height properties. I'll try the delay anyways... its a quirky hack, but if it works...

Ok, the following seems it is working as you expect:
http://jsfiddle.net/b39huugw/1/

BTW, you are creating the image dynamically. I think the browser parses first the script so the script itself doesn't have access to the attributes of the image because it doesn't 'exists'.

You can include (load) a hidden image via markup and then use the code to work with the image. I think this should work.

Billy Earney

unread,

Dec 10, 2014, 7:43:08 AM12/10/14

to bry...@googlegroups.com, João Sebastião de Oliveira Bueno

dan,

I only had about 5 minutes to look into this, but this is what I came up with:

http://jsfiddle.net/ky622122/3/

It seems to be rotating at a pivot at (0,0), but it is one step closer (ie, don't have to hardcode the values)..

Billy

To view this discussion on the web visit https://groups.google.com/d/msgid/brython/CAB-sx602UaEfJCVNRPhp-Kaw_uQxKAC-%2BX0sYAS5wfBjcTwnVg%40mail.gmail.com.

Pierre Quentel

unread,

Dec 10, 2014, 8:02:21 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

Le mercredi 10 décembre 2014 11:36:10 UTC+1, dan d. a écrit :

Hello Pierre,

I am trying to do something rather simple, rotatating the image using the canvas context rotate() method and using a timer.I got the timer working fine looking at the Brython docs.

In the code below if I hard code the value 150 for (img.width/2) or (img.height/2), the code works. The image is positioned correctly and spins on itself.

If I leave (img.width/2) or (img.height/2) this is evaluated to 0, for some reason, although the image is 300x300 pixels...
Line 18 and 28, the img.width and myImage.width do not contain the correct value for the image.
Since we created the img object using a 300x300 image, shouldn't img.width contain the value 300 ? Or is this a Brython / Javascript interaction particularity?

There is a bug in the code that gets the attributes "width" and "height". It currently uses the Javascript attribute offsetWidth and offsetHeight, but these values are apparently not set for images. It will be fixed in the next release

Pierre Quentel

unread,

Dec 10, 2014, 8:03:57 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

Le mardi 9 décembre 2014 15:59:53 UTC+1, dan d. a écrit :

Yes, thank you Pierre.

Indeed, I am all for short clean syntax, if it works. But if does not, then I would rather have the long syntax that does work :)

Just to give you some context, I am completely new to Brython.

And I would like to port a simple little game I wrote, to Brython. Right now it is written in Python but on top of a web browser framework (HTML5), but which is not open source. It uses Skulpt as the Python translator, and it has additional libraries for handling all the graphics and sound, and user interface. These libraries are not open source.
So the idea is to use Brython instead for this game. If this is possible...

Pierre, can you tell me if it is possible to play sounds (mp3/ogg files) via Brython?

HTML5 provides the AUDIO tag, so you can generate a player with the usual play/pause buttons with :

from browser import document, html
document <= html.AUDIO(src='mymusic.mp3', controls=True)

dan d.

unread,

Dec 10, 2014, 11:35:30 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

Hey Pierre,

No need for play/pause buttons for the audio. Although why not....
But the main goal is to programmatically be able to start the game music, and game sounds.

So for example, the player presses the "fire" button (space bar) the ship shoots a rocket, and the game plays a rocket sound.

I hope I am not asking for things that are completely not suited for Brython and its original intended use...

Thanks Dan

dan d.

unread,

Dec 10, 2014, 11:44:09 AM12/10/14

to bry...@googlegroups.com, gwi...@gmail.com

Yeah Billy,

That's exactly the result I get too... which is not what it should do, and not what I want it to do :)
It should rotate on itself (around the image center) and not on a (0,0) origin. If you hard code 150 everywhere on a 300x300 pixel pic, everything works perfect. But you need to hard code.

Pierre Q. answered the question, saying there is a bug in Brython and it is going to get fixed in the next release.

So I am just unlucky since the little I am trying to accomplish so far in Brython does a lot of image manipulations, and there seem to be a couple of bugs, in that area, in the current version of Brython. But I guess its cool, since they are going to get fixed and Brython will be that much better!

Sorry for creating more work for the Brython dev team :)

Thanks for giving it a shot Billy.

Dan

Billy Earney

unread,

Dec 10, 2014, 11:52:25 AM12/10/14

to bry...@googlegroups.com

Dan, this seems to be inline with pygame, which is on my todo list to translate to brython. I can try to help by finding how to do these sound effects in html5 (brython) and then try to create the relevant function in pygame. You might want to check the site-packages directory under Lib to see if pygame is there in the repo. I personally have not added a sounds module but some else may have.

Good luck!

Billy

--

You received this message because you are subscribed to the Google Groups "brython" group.
To unsubscribe from this group and stop receiving emails from it, send an email to brython+u...@googlegroups.com.
To post to this group, send email to bry...@googlegroups.com.

To view this discussion on the web visit https://groups.google.com/d/msgid/brython/c328cea0-ad7b-49e4-9fd2-9e8b52114a1d%40googlegroups.com.

Billy Earney

unread,

Dec 10, 2014, 1:17:40 PM12/10/14

to bry...@googlegroups.com

Thanks for pointing that out. We definitely need to know, so we can make brython better!

To view this discussion on the web visit https://groups.google.com/d/msgid/brython/29cd9be0-e8a2-4b80-9f16-a70e0ca100d6%40googlegroups.com.

Billy Earney

unread,

Dec 10, 2014, 1:29:19 PM12/10/14

to bry...@googlegroups.com

Dan,

I've looked in the brython repo, and pygame is not there. It must only be in my local repo. I can push it to the brython repo, but don't be shocked, there isn't much there, mainly some skeleton files. Probably not much use to anyone seriously wanting a library to develop from.

I brought this up, because if you get some things working, I can use it as a cheat to add some functionality to pygame, unless a brave soul in this group wants to do it themselves.. :)

Billy

dan d.

unread,

Dec 11, 2014, 11:05:44 AM12/11/14

to bry...@googlegroups.com

So far my spaceship is flying away, spinning endlessly in space thanks to Brython :)
Runs pretty well. And I have the background music going. Good start for the port of the game.

Now I need to look into Brython UI event handling for picking up keyboard events. To control the ship :)

Dan

Billy Earney

unread,

Dec 11, 2014, 11:12:47 AM12/11/14

to bry...@googlegroups.com

Dan,

Once you get it working could you send us the code (or donate the code to brython's gallery)?.

This maybe a good candidate for me to translate to pygame (and help bring the pygame library to better functionality).

Billy

To view this discussion on the web visit https://groups.google.com/d/msgid/brython/a1290cfb-cf64-4615-8e09-eece2f6fc5c7%40googlegroups.com.

dan d.

unread,

Dec 11, 2014, 4:08:54 PM12/11/14

to bry...@googlegroups.com

First lets see if I get it finished :)

Sure, if its decent enough for theBrython gallery, no problem.

Just remember that I am not really a programmer... so don't expect too much from the code :)
If I get it done, it will work, but it will most likely not be as elegant as code can be, and it will not have any "crazy advanced" Python or JS stuff in it.

Dan

Reply all

Reply to author

Forward
