2014-08-01:

When a digit is entered after equals buton is pressed, the result is cleared before displaying the digit.

This fixes the bug where the digit was appended to the result.




2013-11-23:

Added C (clear) button explanation.

---



This calculator is a good exercise in using some of the basic features and blocks of App Inventor 2.
It supports entering whole positive numbers only to keep things as simple as possible, but does provide some error handling without too much fuss.
The four functions add, subtract, multiply, divide are supported.
Chain calculations can be done as follows: 3 + 4 = (7 is displayed) * 3 = (21 is displayed) etc.

You may either download the aia project or recreate it with the following instructions.

Start MIT App Inventor 2 and give your project the name MyCalculator

Designer

In the Designer, Set the Screen Title to My Calculator
Uncheck Scrollable.

Calculator Display:

Create a label named DisplayLBL
Set it's properties as follows:
BackgroundColor Black
FontBold checked
FontSize 48
Text (empty)
TextAlignment right
TextColor Cyan

Numeric Keypad:

I chose to use the cell phone keypad layout rather than the traditional calculator layout.

Below this put a VerticalArrangment set to Fill parent in width and height

Inside the VSA put four HorizontalArrangements
Set each to Fill parent in width and height

Inside each HSA put four buttons (16 buttons in all)

Set each button's Text as follows:
1,2,3,+
4,5,6,-
7,8,9,x
C,0,=,/

Rename these buttons as follows:
OneBTN,TwoBTN,ThreeBTN,AddBTN
FourBTN,FiveBTN,SixBTN,SubtractBTN
SevenBTN,EightBTN,NineBTN,MultiplyBTN
ClearBTN,ZeroBTN,EqualsBTN,DivideBTN

Then set each button's Width and Height to Fill parent

That is all for the Designer!
Your Viewer pane in the Designer should look like this:


Blocks Editor

Now switch to the Blocks editor

Drag out ten Button Click blocks -- one for each of the digits 0 to 9.

Consider what happens when the user touches one of the digit buttons.
Suppose DisplayLBL.Text contains 45 and the user touches the 6 button.
You want 456 to display. This can be done with the 'join' Text block.

You can write blocks inside each of the digit click blocks to do this, but a more efficient way is by using a reusable procedure block.

Here is how to make a reusable procedure that can be called from each of the ZeroBTN to NineBTN Click blocks to join digits to the number in DisplayLBL.Text.

In the Blocks panel, Procedures section, drag out a 'to procedure do' block
Rename it to AddDigit
Add an argument named digit to this procedure to allow us to pass the value of the digit pressed.
Inside the procedure place a 'set DisplayLBL.Text to' block.
Attach a Text 'join' block to this.
Inside the join block put a 'DisplayLBL.Text' and a 'get digit' block.
The procedure should look like this:

Now we can add a call to this reusable procedure in each of our digit button blocks.

Here is what the OneBTN.Click block looks like with a call to AddDigit. Do this for ZeroBTN.Click to NineBTN.Click as well.


At this point the user can type digits into the display.

We now need to be able to perform an arithmetic calculation based on two operands and an operator.

The user touches the digit buttons (ZeroBTN to NineBTN) for Operand1 first, then touches an Operator button(AddBTN,SubtractBTN,MulitplyBTN,DivideBTN), then digit buttons for Operand2, and finally the EqualsBTN.

Create three global variables:

Operand1, Operator, Operand2

Set their default values to Empty Text.

Suppose the user has typed in a number for Operand1, then touched an Operator button.

We need to save the typed number in DisplayLBL.Text in Operand1, clear the text in DisplayLBL.Text and remember what Operator was touched.

After the user has typed in Operand2  into DisplayLBL then pressed the EqualsBTN button we can determine what arithmetic operation to perform by looking at the saved Operator.

Create a procedure called SetOperator with an argument operator.

When this procedure is called from one of the four operator Click blocks (AddBTN.Click,SubtractBTN.Click,MultiplyBTN.Click,DivideBTN.Click):

  • Operand1 will contain the first number typed in
  • DisplayLBL.Text will be emptied for the next number to be entered
  • The operator symbol will be saved in global Operator variable



Here is a call to SetOperator from the SubtractBTN.Click block. Repeat this for the AddBTN.Click, MultiplyBTN.Click and DivideBTN.Click blocks:

Finally, when the user touches the = symbol button, the EqualsBTN.Click block is triggered.

At this point we need to store the contents of DisplayLBL.Text in global Operand2.

Next we need to determine what operation to perform based on the symbol stored in global Operator.

This is accomplished with 'if then else blocks' that return the calculated value to DisplayLBL.Text

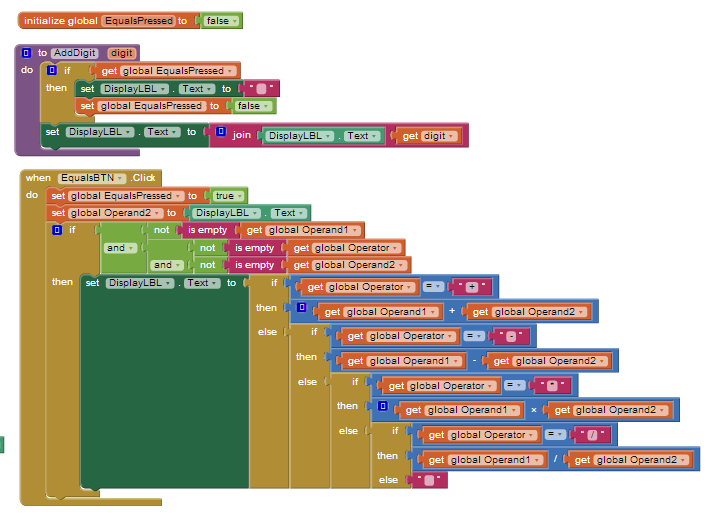

The blocks to do this are as follows:


The initial blocks in EqualsBTN.Click make sure that there are numbers in the operand and operator variables. This is one example of error handling.

Finally, the C (clear) button clears the display and resets the variables:


At this point you can test your project. If there are errors, compare it to the attached project.

---

END



MyCalculator.aia
