Getting ImageSprite Pictures from a Spritesheet

[Scott Ferguson]

Spritesheets are used in many games to store tiled images in one image file.

The spritesheet file typically contains rows and columns of these tiled images in a grid pattern -- all with the same width and height.

When needed, one of the tiled images is copied from the spritesheet into an ImageSprite to form it's Picture.

A Typical Spritesheet:

This project uses a method to copy a part of the spritesheet into a Canvas, then save that Canvas on the device.

The saved image can then be assigned to an ImageSprite Picture.

Screen shot:

In the example above, the user had uploaded a spritesheet to the Media list.

He then entered the name of the spritesheet (tiles_spritesheet.png) into the textbox.

He entered the width (790) and height (934) of the spritesheet, then touched the Load Spritesheet button.

This displays a preview of the entire spritesheet and part of a full-size spritesheet is shown below it.

The preview image lets the user see all of the spritesheet as a reference.

The full-size spritesheet image is used for copying specified tiled images.

There is a 2 pixel gap between the images in spritesheet so the tiles spacing value is set to 2.

Each tile is 70 px wide and 70 px tall, so the tile width and tile height values are set to 70.

The user provides a name for the image to be copied from the spritesheet.

In the example above it is called cornice.png.

The image he wants is located at column 3 and row 4 in the spritesheet.

That corresponds to this image:

When the user touches the Copy Tile button, the area containing the above image is copied pixel-by-pixel to another Canvas that is 70x70 pixels.

That smaller canvas is then saved to the device using the name specified by the user with the Canvas SaveAs block.

The user can then assign that saved image to an ImageSprite.

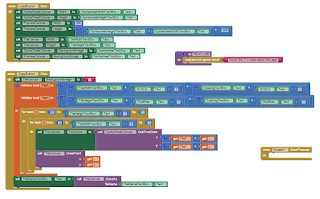

Blocks:

---
