Cityscape scroller demo

[Scott Ferguson]

YouTube video: http://youtu.be/TWiEDvmnMd0

---

2014-01-12: Added Designer images and captions to this documentation

---

This demo is based on an MIT Scratch project 3D Cityscape that I modified to make the car wheels rolling match the scrolling speed.

In it I observed that four ImageSprites made up the cityscape which scrolls in two rows at different speeds.

After trying different methods of doing this with App Inventor, I arrived at this solution.

It uses two rows of three ImageSprites each to make the scrolling cityscape - each row moving at a different speed.

The wheels of the car in the foreground move fastest and determine the speed of the two rows of buildings.

A slider component allows changing the speed and direction of the rolling car.

Sound track: Bee Gees - Stayin' Alive (midi)

Building images courtesy of the developer of the Scratch 3D Cityscape applet.

The midi file was cropped and exported from Anvil Studio 2013 as a wav file, then exported from Audacity as an ogg (much smaller).

GIMP was used to create the ImageSprite Pictures and the Canvas BackgroundImage.

Testing was done on a 10" ASUS TF-101 and 7" $69 Nextbook.

The app works either in Landscape or Portrait mode.

The method I used here to allow scrolling uses half of the Canvas to hide the ImageSprites under left and right mask ImageSprites.

The Canvas Width is 480px and Height is 170px.

Each of the building ImageSprites is 120px wide and there are always three in a row.

So 360px of the Canvas are always occupied, but there can be up to 120px on the left or the right where ImageSprites are swapped as the scene scrolls.

This area is masked on the left and right with the maskL and maskR ImageSprites which are each 120px wide.

So as the scene scrolls, the viewer sees only the buildings moving but not the swapping that is happening under the mask ImageSprites.

I found out that the Canvas can extend beyond the width of the screen. Did you know that? I didn't.

To see this in action, start this app then turn the device first landscape then portrait orientation.

In portrait orientation, only part of the Canvas edges are visible, and the canvas width of 480px is maintained.

That opens up some possibilities for improved horizontal scrolling.

When I did this project I assumed that nothing could extend beyond the screen border.

The ability to extend the Canvas beyond the Screen Width is evident in the fact that the mask gray areas used to hide the swapped ImageSprites on the left and right can be outside of the viewable area of the screen.

Yes, it is true that an ImageSprite is not allowed to move beyond the edge of the Canvas, but since the Canvas can extend beyond the edge of the Screen then that means we can move ImageSprites off screen and have them appear on the other side in a natural way.

We just need to make the Canvas wider than the Screen Width and allow enough room for the ImageSprite to move off Screen.

To the user of the app they are viewing the entire Canvas, however.

DESIGNER

All component properties can be observed in the aia project Designer.

I will not reproduce them here.

The Viewer Screen is set to landscape orientation here for demonstration purposes to see the entire canvas, but in the project orientation is set to unspecified.

The Canvas contains a BackgroundImage containing the sun, sky ground and blacktop road.

There are three Pictures shared by all six ImageSprites that make up the front and back rows of buildings.

Of the three back row ImageSprites two are shown here to get an idea of size and position.

Their heights are shorter than the front row buildings heights.

Their Z Properties are 1.0 which means that they are at the lowest level in the scene.

There are three front row ImageSprites.

Two are shown in the normal height of their contained Pictures.

Their Z Properties are 2.0 which places them in front of the back row which contains one ImageSprite in this example.

The car ImageSprite is displayed above the buildings at Z = 200.

The tires don't turn.

The rims for the wheels are ImageSprites with Z = 300.

They will turn as the scene moves left or right.

The mask ImageSprites are added to the left and right sides of the Canvas.

They hide the fact that the buildings don't extend to the end of the Canvas and allow swapping of Images from one side to the other.

Their Z = 500.

A HorizontalArrangement containing Slider component and a Label to hold it's current value is placed below the Canvas.

Next, a HorizontalArrangement containing buttons is placed.

Once the start button is pressed, it is hidden.

All components visible.

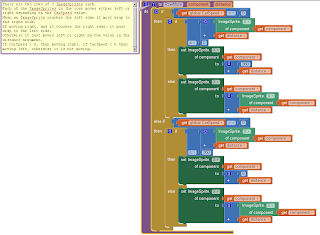

BLOCKS

---

END
