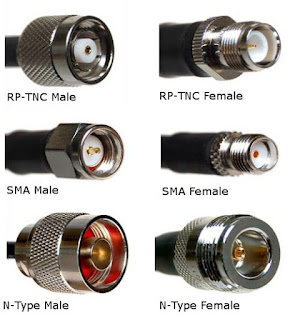

I am studying the type of connectors between Antenna and readers.  Below is pretty much the possible combo.  As per my understanding, the best combo is to have reader & antenna to have the same type, like RP-TNC at both reader & antenna. This is what ART is recommending such as using FX9500 and MT/Laird antennas.  T200 & FX7500 used combo of RP-TNC & SMA.  My next question is to understand the series like 195  or 200 which related to length. Does the number indicate only the length difference or  Material difference. Thanks.



[Ohio Race Day]

The LMR number is the thickness of the cable.  The higher the number the thicker the cable.  You have signal loss over longer cables and a thicker cable prevents this.  LMR 195 is good for about 15'.  But double check this.

[Jamie Chandler]

This is what we recommend here at Agee Race Timing:

For connecting the TR265 reader to the MTI262006 Antenna:

10 ft. Antenna Cable (LMR-195, RP-TNC Male to RP-SMA Male)

For connecting the Motorola FX7400/7500/9500 readers to the MTI262006 Antennas:

15 ft. Antenna Cable (LMR-195, RP-TNC Male to RP-TNC Male)

20 ft. Antenna Cable (LMR-195, RP-TNC Male to RP-TNC Male)

25 ft. Antenna Cable (LMR-240, RP-TNC Male to RP-TNC Male)

30 ft. Antenna Cable (LMR-240, RP-TNC Male to RP-TNC Male)

35 ft. Antenna Cable (LMR-400, RP-TNC Male to RP-TNC Male)

40 ft. Antenna Cable (LMR-400, RP-TNC Male to RP-TNC Male)

45 ft. Antenna Cable (LMR-400, RP-TNC Male to RP-TNC Male)

50 ft. Antenna Cable (LMR-400, RP-TNC Male to RP-TNC Male)

Hope that helps!

Thanks,

Jamie

Jamie Chandler

Agee Race Timing

VP of Sales and Operations

970-313-7166

[amir]

That's really-really very helpful. Thanks Jamie.
