DTL with ComplexRecordmap as source

r.be...@solilog.fr

unread,

Jan 31, 2014, 5:42:23 AM1/31/14

to Ensemble-in...@googlegroups.com

Hello everyone,

I'm working on a production , my goal is to achieve transformation and routing of an HPRIM ORU message into a HL7 ORU message.
I managed to create a complex record map to map the HPRIM messages , given that there not an HPRIM message schema initially created in Ensemble.

The point is when i created a DTL transforming the mapped HPRIM message into a HL7 message, using this very complex recordmap in input , and a 2.4 HL7 ORUR01 schema message in output , it didn't work. when i test the DTL i have no result.

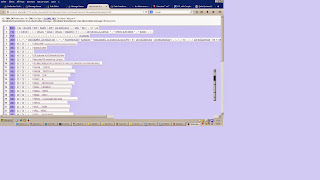

These are screens of the DTL and test interface

Any clues about this issue ?
Thank you

Raouf

Joshua Goldman

unread,

Jan 31, 2014, 7:34:56 AM1/31/14

to Ensemble-in...@googlegroups.com

We have just encountered this restriction and are documenting the current behavior and evaluating possible solutions. If the target and source in a DTL transformation are different types you can only use leaf assignments. You cannot assign a structured type to another even if the structures appear to be parallel. I believe that you cannot also use the empty parentheses to iterate through a repeating structure but need to use explicit for each actions.

We just ran into this two days ago so we are still investigating the scope of the problem.

Sent from my Windows Phone

From: r.be...@solilog.fr
Sent: ‎1/‎31/‎2014 5:42 AM
To: Ensemble-in...@googlegroups.com
Subject: [InterSystems-EnsHlth] DTL with ComplexRecordmap as source

--
You received this message because you are subscribed to the Google Groups "InterSystems: Ensemble in Healthcare Community" group.
To post to this group, send email to Ensemble-in...@googlegroups.com
To unsubscribe from this group, send email to Ensemble-in-Healt...@googlegroups.com
For more options, visit this group at http://groups.google.com/group/Ensemble-in-Healthcare?hl=en
---
You received this message because you are subscribed to the Google Groups "InterSystems: Ensemble in Healthcare" group.
To unsubscribe from this group and stop receiving emails from it, send an email to Ensemble-in-Healt...@googlegroups.com.
For more options, visit https://groups.google.com/groups/opt_out.

r.be...@solilog.fr

unread,

Feb 4, 2014, 4:15:40 AM2/4/14

to Ensemble-in...@googlegroups.com

Thank you Joshua .
hope we find a solution

Le vendredi 31 janvier 2014 13:34:56 UTC+1, Josh Goldman a écrit :

We have just encountered this restriction and are documenting the current behavior and evaluating possible solutions. If the target and source in a DTL transformation are different types you can only use leaf assignments. You cannot assign a structured type to another even if the structures appear to be parallel. I believe that you cannot also use the empty parentheses to iterate through a repeating structure but need to use explicit for each actions.

We just ran into this two days ago so we are still investigating the scope of the problem.

Sent from my Windows Phone

From: r.be...@solilog.fr
Sent: ‎1/‎31/‎2014 5:42 AM
To: Ensemble-in...@googlegroups.com
Subject: [InterSystems-EnsHlth] DTL with ComplexRecordmap as source

Hello everyone,

I'm working on a production , my goal is to achieve transformation and routing of an HPRIM ORU message into a HL7 ORU message.
I managed to create a complex record map to map the HPRIM messages , given that there not an HPRIM message schema initially created in Ensemble.

The point is when i created a DTL transforming the mapped HPRIM message into a HL7 message, using this very complex recordmap in input , and a 2.4 HL7 ORUR01 schema message in output , it didn't work. when i test the DTL i have no result.
These are screens of the DTL and test interface

Any clues about this issue ?
Thank you

Raouf

--
You received this message because you are subscribed to the Google Groups "InterSystems: Ensemble in Healthcare Community" group.
To post to this group, send email to Ensemble-in...@googlegroups.com

To unsubscribe from this group, send email to Ensemble-in-Healthcare-unsub...@googlegroups.com

For more options, visit this group at http://groups.google.com/group/Ensemble-in-Healthcare?hl=en
---
You received this message because you are subscribed to the Google Groups "InterSystems: Ensemble in Healthcare" group.

To unsubscribe from this group and stop receiving emails from it, send an email to Ensemble-in-Healthcare+unsub...@googlegroups.com.

r.be...@solilog.fr

unread,

Jan 15, 2015, 12:34:10 PM1/15/15

to Ensemble-in...@googlegroups.com

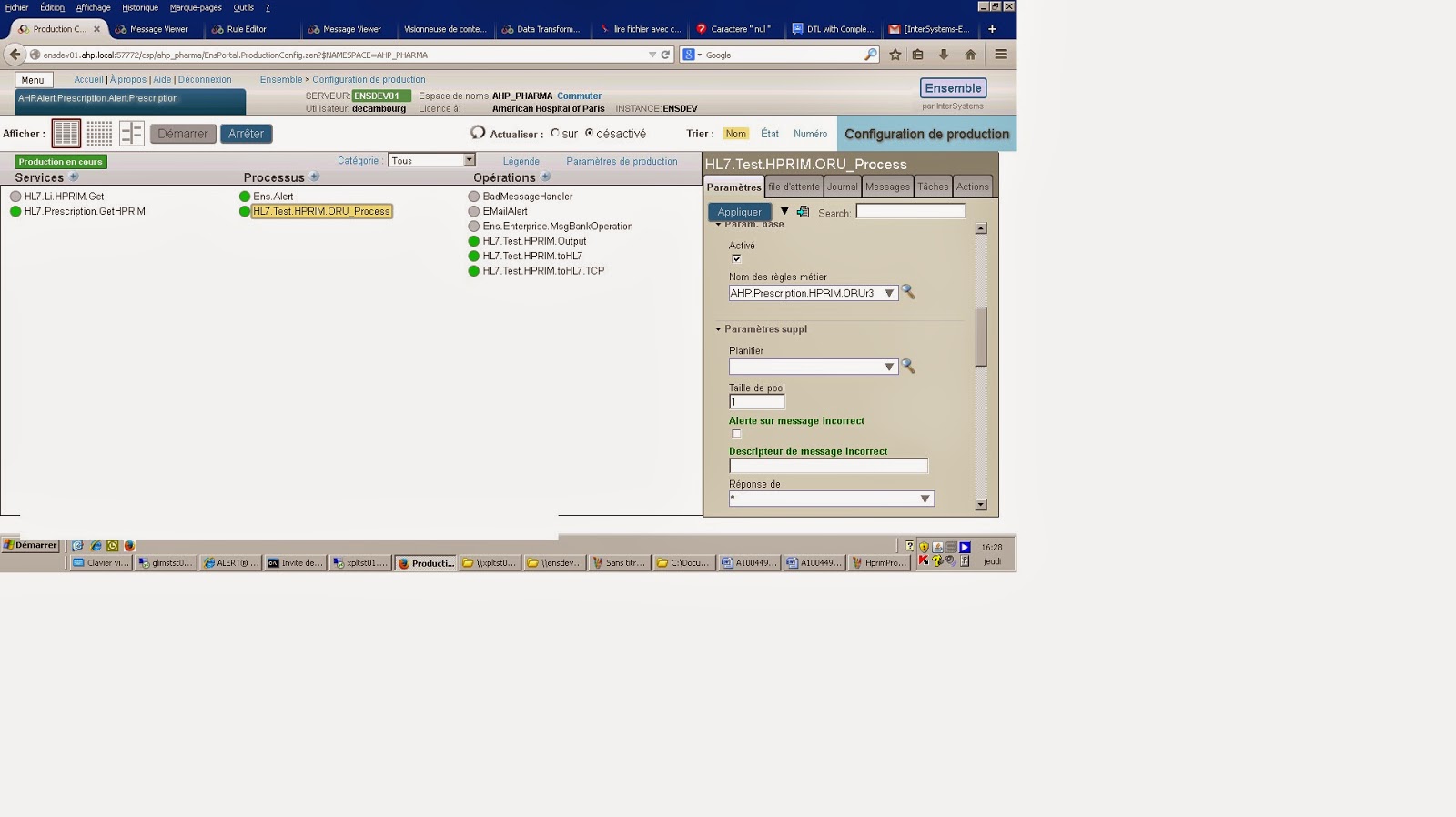

Hello Everyone. I managed to create a DTL which transforms HPRIM and DOC message in input (business service HL7.Prescription.GetHPRIM ) into a HL7 ORU message in output (Business Operation HL7.Test.ToHPRIM )

When I test the transformation with the DTL test editor , it works correctly ( data from both input files HPRIM and DOC are found in the ORU message)

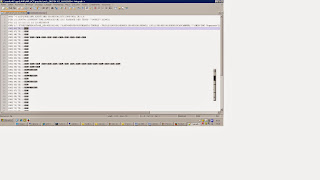

However when i start the production , and check the output message , all the fields incoming from the DOC file are written in "nul" character , and consequently impossible to use.( all OBX fields)

Any idea about this issue ? Thank you

Raouf

Bear, Alex

unread,

Jan 15, 2015, 1:06:16 PM1/15/15

to Ensemble-in...@googlegroups.com

Just taking a guess. When you run the test with Studio, you specify the input allowing information from both files. When running the production, only one input file is being processed at a time.

Thanks,

Alex Bear

IT Programmer/Analyst

5 East

3200 Burnet Ave

Cincinnati, OH 45229

513-585-7345

--

You received this message because you are subscribed to the Google Groups "InterSystems: Ensemble in Healthcare Community" group.
To post to this group, send email to Ensemble-in...@googlegroups.com

To unsubscribe from this group, send email to Ensemble-in-Healt...@googlegroups.com

For more options, visit this group at http://groups.google.com/group/Ensemble-in-Healthcare?hl=en
---
You received this message because you are subscribed to the Google Groups "InterSystems: Ensemble in Healthcare" group.

To unsubscribe from this group and stop receiving emails from it, send an email to Ensemble-in-Healt...@googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

Confidentiality Notice: This e-mail message, including any attachments, is for the sole use of the intended recipient(s) and may contain confidential and privileged information. Any unauthorized review, use, disclosure or distribution is prohibited. If you are not the intended recipient, please contact the sender by reply e-mail and destroy all copies of the original message.

Raouf BESBES

unread,

Jan 15, 2015, 6:07:15 PM1/15/15

to Ensemble-in...@googlegroups.com

Thank you Alex for the answer.

But in this case ,have you an idea how can i get the two file processed before getting the output ORU file ?

Thanks

Raouf

You received this message because you are subscribed to a topic in the Google Groups "InterSystems: Ensemble in Healthcare" group.
To unsubscribe from this topic, visit https://groups.google.com/d/topic/Ensemble-in-Healthcare/6r-VMzBQgb8/unsubscribe.
To unsubscribe from this group and all its topics, send an email to Ensemble-in-Healt...@googlegroups.com.

Bear, Alex

unread,

Jan 16, 2015, 8:57:00 AM1/16/15

to Ensemble-in...@googlegroups.com

There may be several ways to do this. One could be to develop a custom service that can load both files and pass them to a business process for example. You may also be able to design a BPL that would accept the first file and hold it until the second file is processed. These are just some thoughts as I have not attempted either before.
